13mm mini dc gear motor reducer

DM-13SS030 13mm mini dc gear motor reducer

Typical applications : Instrument, Digital product, Automatic door-lock, Medical equipments, Security monitoring

Appearance size:

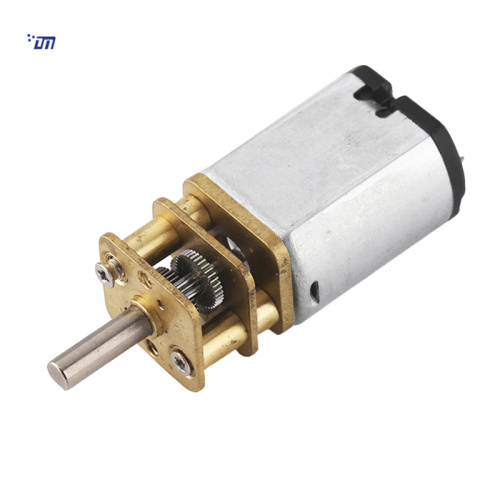

Product picture:

Gearbox Data :

Number of stages	2	4	5
Reduction ratio	3.7.10	16.17.20.30.35     50.63.70.86	115.150.210.250.360
Gearbox length [L"mm	11	11	11
Breaking torque(kgf.cm)	0.6	0.9	2
Gearbox efficiency	81%	65%	59%

Driving Motor Data :

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
DM-030-003-8000	3	≤55	8000	≤250	6000	4	0.2	≥16	≥500
DM-030-003-10500	3	≤80	10500	≤300	7200	5	0.4	≥20	≥750
DM-030-006-8000	6	≤30	8000	≤120	5000	4	0.2	≥16	≥150
DM-030-006-10500	6	≤40	10500	≤160	7000	5	0.4	≥20	≥400

Geared Motor Samples Data :

Motor model	Rated Volt.	No load		Load				Stall
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
DM-13SS0300038500-10K	3.0	0.04	784.4	0.18	619.2	0.04	0.23	0.17	0.68
DM-13SS03000312000-150K	3.0	0.12	71.9	0.32	52.9	0.33	0.18	1.25	0.90

Curve Chart :

Model: DM-13SS0300038500-10K

Model: DM-13SS03000312000-150K

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
