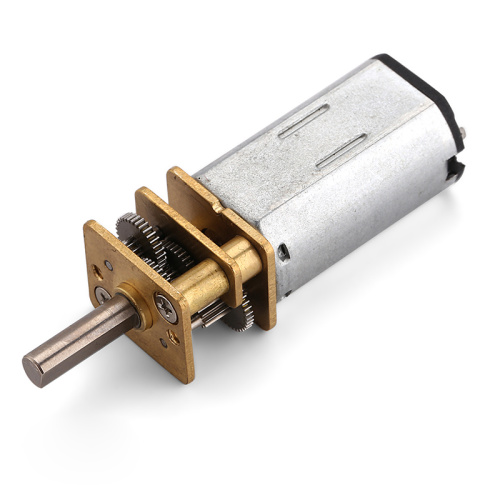

12mm micro metal gear motor
  • 12mm micro metal gear motor
12mm micro metal gear motor

12mm micro metal gear motor

  • USD10
    5-999 Piece/Pieces
  • USD5
    ≥1000 Piece/Pieces
Payment Type:
L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm:
FOB
Min. Order:
5 Piece/Pieces
Min. Order:
5 Piece/Pieces
Delivery Time:
35 Days
Transportation:
Ocean, Land, Air
Port:
Hongkong, Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 200000pc per month
Supply Ability: 2000000pc annual
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB
Certificate: CE, Rohs, FCC
HS Code: 8501109990
Transportation: Ocean,Land,Air
Port: Hongkong,Shenzhen
Product Description
Product Description

DM-12SSN30 DC SPUR GEAR MOTOR

   DM-12SSN30 12mm micro metal gear motor is different with DM-12SSN20 metal gearbox motor. they shared the same 12mm*10mm metal gearbox, but matching with different dc driving motor. DM-12SSN30 used the N30# metal brushed dc motor,it is a little longer,powerful than N20# metal brushed dc motor,so DM-12SSN30 mini dc high torque gear motor  is the torque upgrated version than to DM-12SSN20 12v mini gear motor. Both gearbox are made of full metal gears with low noise,high precision. It is widely used on smart home applicatances,such as every kinds of smart lock, medical devices...


12 volt motor low rpm



Main voltage : 3VDC.4.5VDC.6VDC.12VDC

Typical applications :

Instrument, Digital product, Automatic door-lock,

Medical equipments, Security monitoring

1




Gearbox Data :

Number of stages

2

4

5

7

Reduction ratio

3.5.10

17.20.30.36

50.63.100

110.150.210

250.298.380

372.625.1000

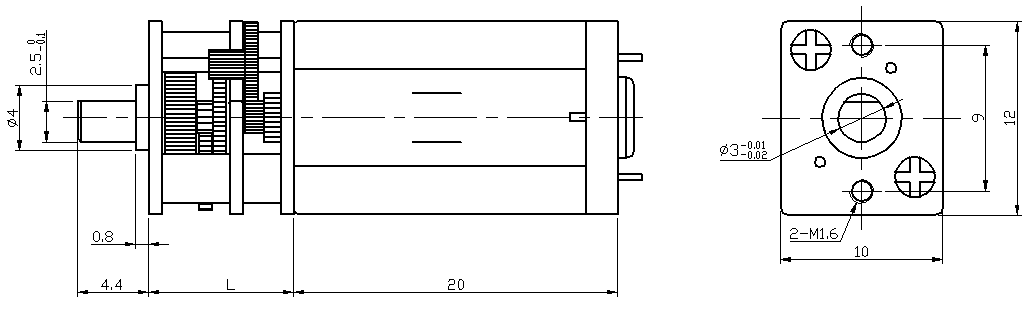

Gearbox length [L"mm

9

9

9

12

Breaking torque(kgf.cm)

0.6

0.9

1.2

2

Gearbox efficiency

81%

65%

59%

48%


Driving Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

DM-N30-006-10000

6

≤30

10000

≤110

7500

4

0.3

≥16

≥280

DM-N30-006-15000

6

≤55

15000

≤200

11250

6

0.7

≥24

≥490

DM-N30-006-25000

6

≤100

25000

≤370

18750

8

1.5

≥32

≥1500



Geared Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

A

r/min

A

r/min

kgf.cm

W

kgf.cm

A

DM-12SSN3000315000-250K

3.0

0.06

57.3

0.28

45.9

0.60

0.28

2.90

1.18

DM-12SSN3000317500-50K

3.0

0.12

322.7

0.46

246.6

0.21

0.52

0.88

1.55

DM-12SSN303.322000-100K

3.3

0.11

220.2

0.53

178.2

0.38

0.69

1.97

2.33

DM-12SSN303.322500-100K

3.3

0.13

219.1

0.59

174.1

0.37

0.66

1.80

2.36

DM-12SSN304.520500-50K

4.5

0.08

393.5

0.41

321.0

0.25

0.82

1.40

1.85

DM-12SSN304.523400-63K

4.5

0.11

360.1

0.48

294.2

0.30

0.93

1.70

2.15

DM-12SSN304.526300-63K

4.5

0.15

398.3

0.70

316.3

0.43

1.41

2.10

2.83

DM-12SSN3000517500-50K

5.0

0.03

356.5

0.17

301.9

0.11

0.35

0.73

0.94

DM-12SSN3000520000-100K

5.0

0.05

196.9

0.30

164.4

0.42

0.71

2.60

1.58

DM-12SSN3000610000-100K

6.0

0.02

105.9

0.08

86.0

0.17

0.15

0.90

0.33

DM-12SSN3000610000-150K

6.0

0.02

67.8

0.08

53.4

0.35

0.19

1.63

0.32

DM-12SSN3000610000-250K

6.0

0.02

42.7

0.09

33.6

0.57

0.20

2.68

0.32

DM-12SSN3000610000-298K

6.0

0.02

36.3

0.08

29.1

0.61

0.18

3.10

0.33

DM-12SSN3000612000-30K

6.0

0.04

390.0

0.13

291.8

0.07

0.20

0.26

0.37

DM-12SSN3000615000-100K

6.0

0.03

159.7

0.12

132.2

0.19

0.26

1.10

0.58

DM-12SSN3000615000-150K

6.0

0.03

105.9

0.12

87.8

0.34

0.31

2.00

0.59

DM-12SSN3000615000-250K

6.0

0.03

64.8

0.15

51.5

0.70

0.37

3.40

0.60

DM-12SSN3000615000-298K

6.0

0.03

50.9

0.13

40.6

0.73

0.31

3.60

0.54

DM-12SSN3000623500-298K

6.0

0.06

78.6

0.30

64.4

0.97

0.64

5.38

1.39

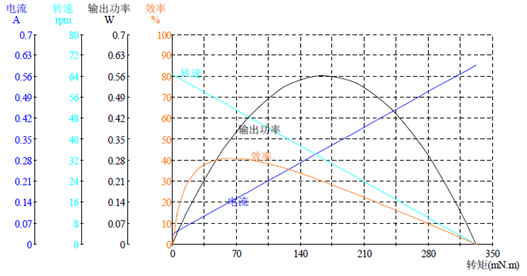

Curve Chart :

Model: DM-12SSN3000615000-250K

2

Model: DM-12SSN3000615000-298K

3



Remark:



Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio



Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...



Welcome OEM or ODM projects
