12mm dc spur gear motor
  • 12mm dc spur gear motor
12mm dc spur gear motor

12mm dc spur gear motor

  • USD10
    5-999 Piece/Pieces
  • USD5
    1000-9999 Piece/Pieces
  • USD4
    ≥10000 Piece/Pieces
Payment Type:
L/C, T/T, D/P, Paypal, Money Gram, Western Union
Incoterm:
FOB
Min. Order:
5 Piece/Pieces
Min. Order:
5 Piece/Pieces
Delivery Time:
35 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen, HongKong
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 2000000pcs annual
Supply Ability: 200000pcs per month
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB
Certificate: CE, Rohs, Iso 9001
HS Code: 8501109990
Transportation: Ocean,Land,Air
Port: Shenzhen,HongKong
Product Description
Product Description

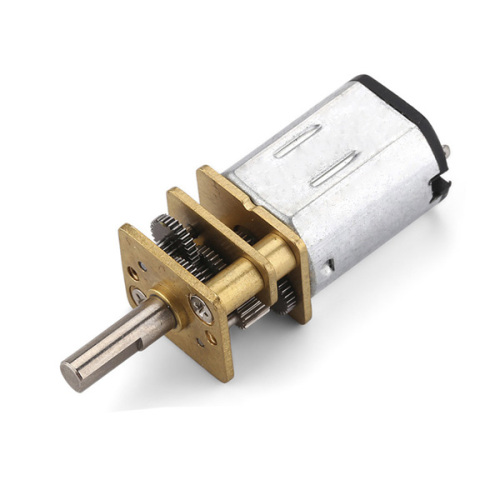

12mm micro dc spur gear motor

10rpm Dc Motor is one of the smaller type dc gear motor, it is widely used on smart locks, electronic locks, pad locks and so on.

The micro dc gear motor has a very small gearbox size 12mm*10mm, so it is also known as N20 6v Dc Gear Motor.

12mm dc gear motor refers to N20 Gear Motor with Encoder, including DM-12SSN10, DM-12SSN20 and DM-12SSN30 micro dc gear motors.

12mm dc spur gear motor


Main voltage : 3VDC, 4.5VDC, 6VDC, 12VDC

Typical applications :

Instrument, Digital product, Automatic door-lock,

sharing bicycle lock, smart lock, pad lock,

medical equipment, Security monitoring


12v dc geared motor

Gearbox Data :

Number of stages

2

4

5

7

Reduction ratio

3, 5, 10

17, 20, 30, 36

50, 63, 100

110, 150, 210

250, 298, 380

372, 625, 1000

Gearbox length [L"mm

9

9

9

12

Breaking torque(kgf.cm)

0.6

0.9

1.2

2

Gearbox efficiency

81%

65%

59%

48%

Driving Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

DM-N20-003-10000

3

≤50

10000

≤185

8000

2

0.2

≥8

≥350

DM-N20-003-15000

3

≤80

15000

≤280

12400

3

0.4

≥12

≥520

DM-N20-003-20000

3

≤110

20000

≤370

15500

4

0.6

≥16

≥700

DM-N20-006-10000

6

≤25

10000

≤95

8000

2

0.2

≥8

≥160

DM-N20-006-15000

6

≤40

15000

≤145

12400

3

0.4

≥12

≥250

DM-N20-006-20000

6

≤60

20000

≤190

15500

4

0.6

≥16

≥320

Geared Motor Data :


Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

A

r/min

A

r/min

kgf.cm

W

kgf.cm

A

DM-12SSN2000310000-1000K

3.0

0.06

10.7

0.15

7.3

1.20

0.10

3.90

0.33

DM-12SSN2000310500-100K

3.0

0.04

102.7

0.14

77.9

0.16

0.13

0.66

0.43

DM-12SSN2000313000-50K

3.0

0.08

246.9

0.21

184.6

0.09

0.17

0.35

0.60

DM-12SSN2000316000-30K

3.0

0.09

503.7

0.28

376.4

0.08

0.32

0.30

0.84

DM-12SSN2000316000-150K

3.0

0.07

110.7

0.27

87.3

0.28

0.25

1.30

1.01

DM-12SSN2000320000-1000K

3.0

0.14

22.6

0.34

15.3

1.50

0.24

4.80

0.76

DM-12SSN204.515500-30K

4.5

0.10

485.9

0.25

336.3

0.09

0.33

0.30

0.59

DM-12SSN204.515500-50K

4.5

0.06

294.6

0.18

222.9

0.10

0.25

0.45

0.54

DM-12SSN204.517500-50K

4.5

0.03

351.1

0.14

299.5

0.10

0.33

0.70

0.79

DM-12SSN2000514500-100K

5.0

0.04

135.5

0.13

104.1

0.17

0.19

0.75

0.44

DM-12SSN2000515000-250K

5.0

0.04

61.5

0.15

47.3

0.50

0.24

2.00

0.53

DM-12SSN2000515000-298K

5.0

0.03

48.8

0.12

38.6

0.50

0.20

2.40

0.46

DM-12SSN2000517000-298K

5.0

0.06

56.3

0.19

43.7

0.50

0.24

2.40

0.64

DM-12SSN2000518000-150K

5.0

0.04

122.5

0.18

99.4

0.30

0.32

1.70

0.75

DM-12SSN2000520000-50K

5.0

0.03

394.7

0.16

334.2

0.13

0.44

0.80

0.88

DM-12SSN200058000-298K

5.0

0.03

23.6

0.07

16.3

0.30

0.05

1.00

0.16

DM-12SSN2000610000-298K

6.0

0.03

34.7

0.06

26.0

0.38

0.10

1.50

0.18

DM-12SSN2000612000-30K

6.0

0.06

379.7

0.14

261.5

0.06

0.16

0.20

0.32

DM-12SSN2000615000-298K

6.0

0.04

50.3

0.14

38.8

0.66

0.26

2.90

0.49

DM-12SSN2001220000-50K

12.0

0.04

390.5

0.12

301.5

0.13

0.42

0.60

0.38

DM-12SSN2001221000-150K

12.0

0.04

134.8

0.12

99.4

0.45

0.46

1.70

0.37

DM-12SSN2001221000-298K

12.0

0.02

72.6

0.08

60.1

0.60

0.38

3.50

0.36








Curve Chart :

Model: DM-12SSN2000310000-1000K

DM-12SSN20

Model: DM-12SSN2000610000-298K

DM-12SSN20

Remark:


Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Motor detailed config can be customized according to customer's requests,

like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM project

Gear Motor Speed=Driving motor speed/Reduction ratio


Company Profile

About DONGMING

Shenzhen Dongming Motor Co.,Ltd  is a professional provider for research&development,production of various kinds of micro dc motors and dc gear motors.

Since the establishment in 2010, with superior geographical  location, accurate market positioning, efficient and professional R & D team, first-class product quality,

we became the major suppliers of micro dc motors and dc gear motors in China.We have two factories and more than 160 staffs in total;

Our products are widely used in communication equipment, office equipment, smart home appliances, electronic toys, model airplane, medical appliances,etc.


dc motor factory

dc gear motor supplier

dc gear motor manufacturerdc gear motors


dc motor application
