12mm micro dc spur gear motor
  • 12mm micro dc spur gear motor
12mm micro dc spur gear motor

12mm micro dc spur gear motor

  • USD10
    5-4999 Piece/Pieces
  • USD4
    ≥5000 Piece/Pieces
Payment Type:
T/T, Paypal, Money Gram, Western Union
Incoterm:
FOB, CIF
Min. Order:
5 Piece/Pieces
Min. Order:
5 Piece/Pieces
Delivery Time:
45 Days
Transportation:
Air
Port:
Shenzhen, HongKong
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 2000000 annual
Supply Ability: 200000pc per month
Payment Type: T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CIF
Certificate: CE, RoHs, ISO9001
HS Code: 8501109990
Transportation: Air
Port: Shenzhen,HongKong
Product Description
Product Description

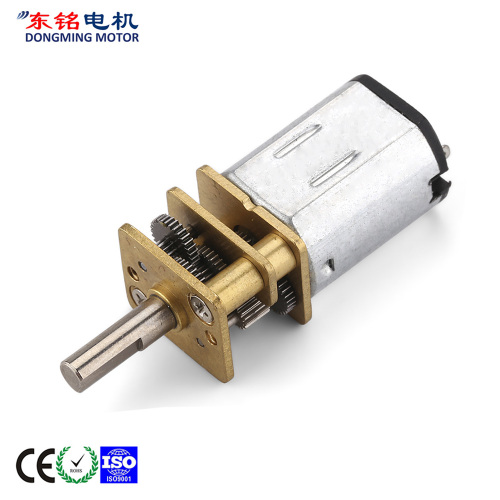

12mm micro dc spur gear motor

12mm micro dc spur gear motor is one of the smaller type dc gear motor, it is widely used on smart locks, electronic locks, pad locks and so on.

The micro dc gear motor has a very small gearbox size 12mm*10mm, so it is also known as 12mm dc gear motor.

12mm dc gear motor refers to 12mm dc spur gear motor, including DM-12SSN10, DM-12SSN20 and DM-12SSN30 micro dc gear motors.

12v dc gear permanent magnet motor


Main voltage : 3VDC, 4.5VDC, 6VDC, 12VDC

Typical applications :

Instrument, Digital product, Automatic door-lock,

sharing bicycle lock, smart lock, pad lock,

medical equipment, Security monitoring


12v dc geared motor

Gearbox Data :

Number of stages

2

4

5

7

Reduction ratio

3, 5, 10

17, 20, 30, 36

50, 63, 100

110, 150, 210

250, 298, 380

372, 625, 1000

Gearbox length [L"mm

9

9

9

12

Breaking torque(kgf.cm)

0.6

0.9

1.2

2

Gearbox efficiency

81%

65%

59%

48%

Driving Motor Data :

Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

mA

r/min

mA

r/min

gf.cm

W

gf.cm

mA

DM-N20-003-10000

3

≤50

10000

≤185

8000

2

0.2

≥8

≥350

DM-N20-003-15000

3

≤80

15000

≤280

12400

3

0.4

≥12

≥520

DM-N20-003-20000

3

≤110

20000

≤370

15500

4

0.6

≥16

≥700

DM-N20-006-10000

6

≤25

10000

≤95

8000

2

0.2

≥8

≥160

DM-N20-006-15000

6

≤40

15000

≤145

12400

3

0.4

≥12

≥250

DM-N20-006-20000

6

≤60

20000

≤190

15500

4

0.6

≥16

≥320

Geared Motor Data :


Motor model

Rated

Volt.

No load

Load

Stall

Current

Speed

Current

Speed

Torque

Output power

Torque

Current

V

A

r/min

A

r/min

kgf.cm

W

kgf.cm

A

DM-12SSN2000310000-1000K

3.0

0.06

10.7

0.15

7.3

1.20

0.10

3.90

0.33

DM-12SSN2000310500-100K

3.0

0.04

102.7

0.14

77.9

0.16

0.13

0.66

0.43

DM-12SSN2000313000-50K

3.0

0.08

246.9

0.21

184.6

0.09

0.17

0.35

0.60

DM-12SSN2000316000-30K

3.0

0.09

503.7

0.28

376.4

0.08

0.32

0.30

0.84

DM-12SSN2000316000-150K

3.0

0.07

110.7

0.27

87.3

0.28

0.25

1.30

1.01

DM-12SSN2000320000-1000K

3.0

0.14

22.6

0.34

15.3

1.50

0.24

4.80

0.76

DM-12SSN204.515500-30K

4.5

0.10

485.9

0.25

336.3

0.09

0.33

0.30

0.59

DM-12SSN204.515500-50K

4.5

0.06

294.6

0.18

222.9

0.10

0.25

0.45

0.54

DM-12SSN204.517500-50K

4.5

0.03

351.1

0.14

299.5

0.10

0.33

0.70

0.79

DM-12SSN2000514500-100K

5.0

0.04

135.5

0.13

104.1

0.17

0.19

0.75

0.44

DM-12SSN2000515000-250K

5.0

0.04

61.5

0.15

47.3

0.50

0.24

2.00

0.53

DM-12SSN2000515000-298K

5.0

0.03

48.8

0.12

38.6

0.50

0.20

2.40

0.46

DM-12SSN2000517000-298K

5.0

0.06

56.3

0.19

43.7

0.50

0.24

2.40

0.64

DM-12SSN2000518000-150K

5.0

0.04

122.5

0.18

99.4

0.30

0.32

1.70

0.75

DM-12SSN2000520000-50K

5.0

0.03

394.7

0.16

334.2

0.13

0.44

0.80

0.88

DM-12SSN200058000-298K

5.0

0.03

23.6

0.07

16.3

0.30

0.05

1.00

0.16

DM-12SSN2000610000-298K

6.0

0.03

34.7

0.06

26.0

0.38

0.10

1.50

0.18

DM-12SSN2000612000-30K

6.0

0.06

379.7

0.14

261.5

0.06

0.16

0.20

0.32

DM-12SSN2000615000-298K

6.0

0.04

50.3

0.14

38.8

0.66

0.26

2.90

0.49

DM-12SSN2001220000-50K

12.0

0.04

390.5

0.12

301.5

0.13

0.42

0.60

0.38

DM-12SSN2001221000-150K

12.0

0.04

134.8

0.12

99.4

0.45

0.46

1.70

0.37

DM-12SSN2001221000-298K

12.0

0.02

72.6

0.08

60.1

0.60

0.38

3.50

0.36








Curve Chart :

Model: DM-12SSN2000310000-1000K

DM-12SSN20

Model: DM-12SSN2000610000-298K

DM-12SSN20

Remark:


Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Motor detailed config can be customized according to customer's requests,

like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM project

Gear Motor Speed=Driving motor speed/Reduction ratio
