Impedance control pcb board
Your message must be between 20 to 2000 characters

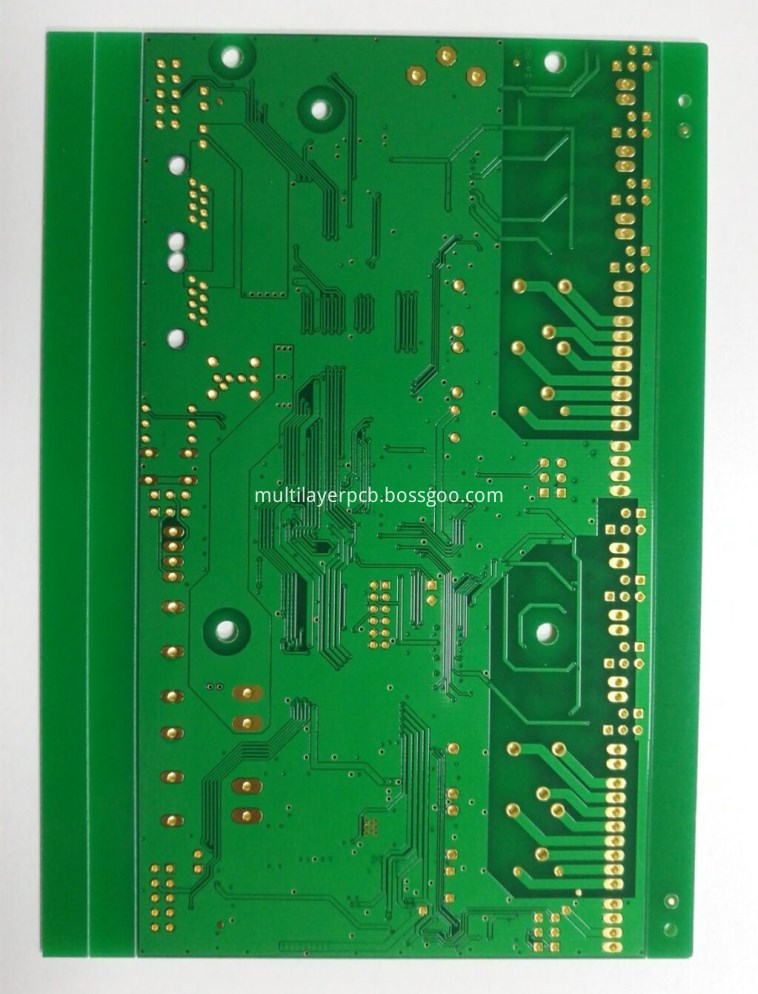

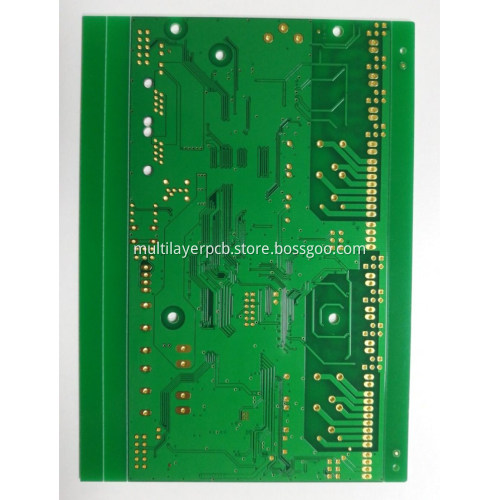

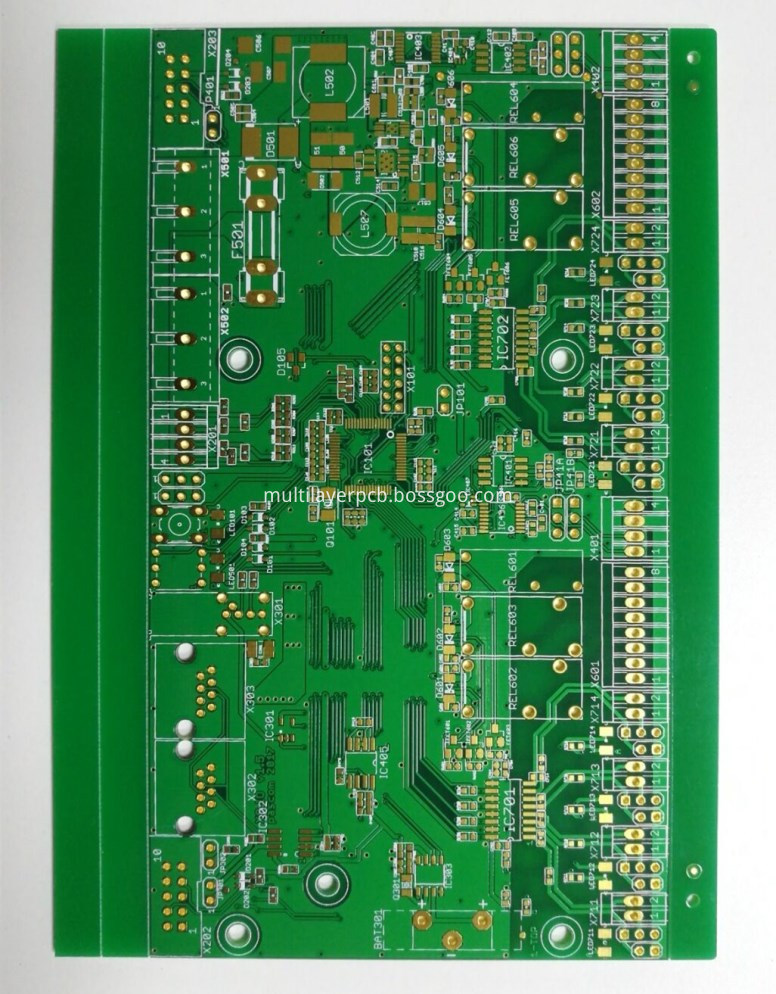

Contact Now6 layer Multilayer impedance circuit board. Surface treatment ENIG 2U". Green slodermask and white silkscreen. Inner copper 1oz and outer copper finished 1oz. board thickness 1.6mm +/-10%. there are ten sets of impedance design in this board. 50 ohms single end impedance and 90 ohms, 100 ohms differential impedance, Impedance tolerance controlled by +/-10%.
Our General Capabilities: Can be 1-40 Layers rigid board and 1-12 layers flexible circuit board. Copper thickness can be: 1-10 oz Outer and 0.5-8 oz inner.
Surface treatment(surface finished) can be: HASL, Lead-free HASL, Hard Gold plating, Immersion Gold, Immersion Silver, Immersion Tin, OSP and the Options: Gold Tabs, Selective Au, Carbon Ink, Peelable Mask,Controlled Impedance, Laser Drill, Blind Vias and Buried Vias.
