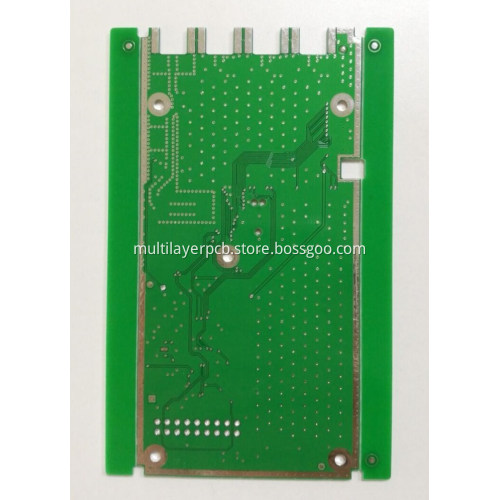

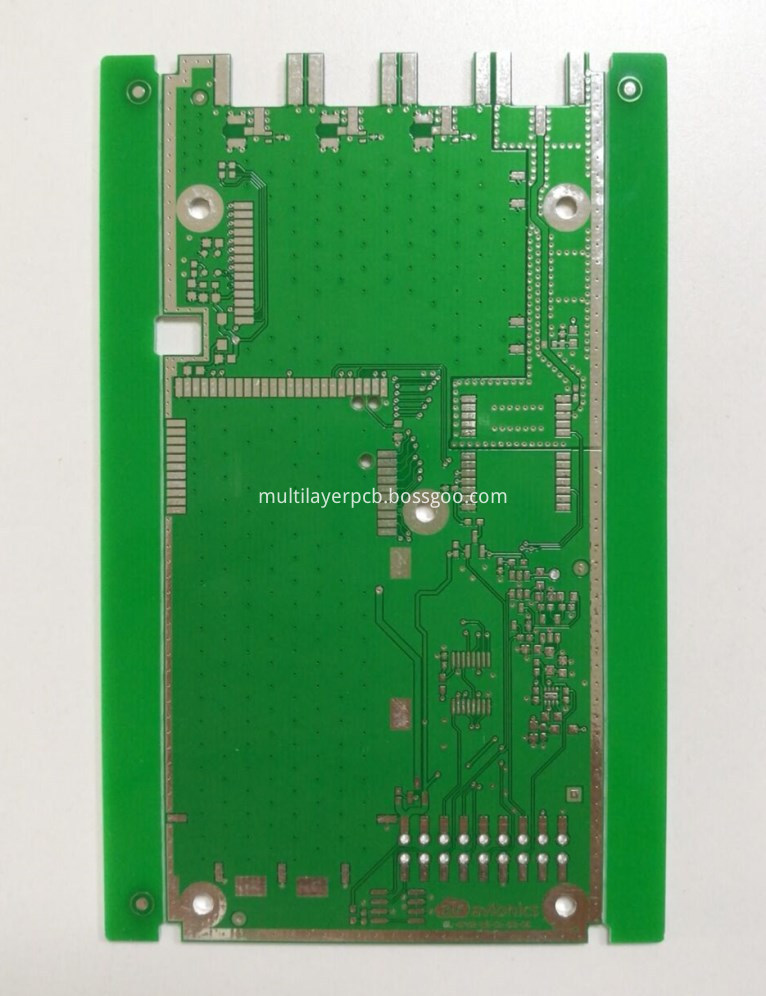

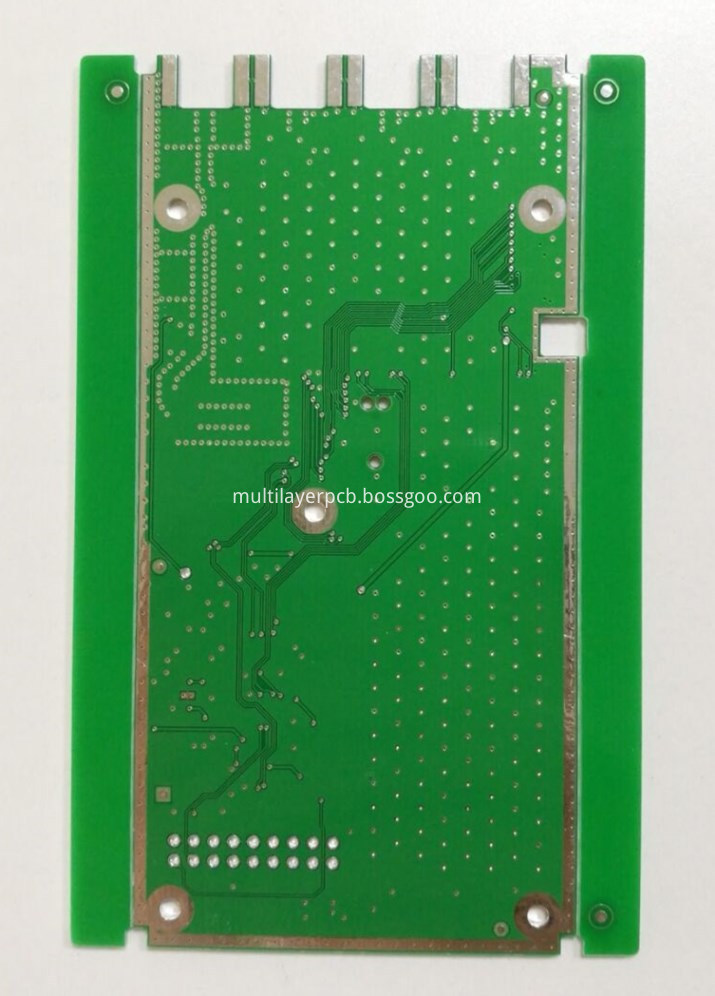

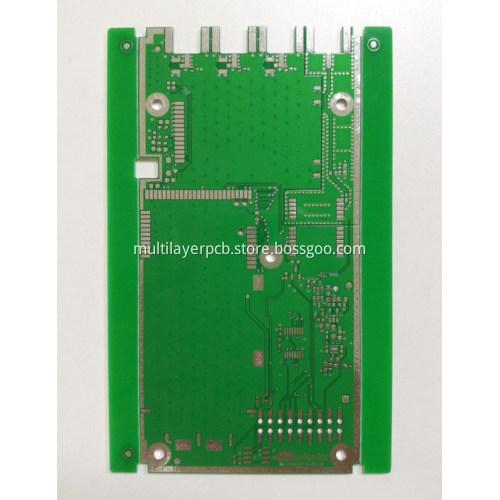

6 layer Tin finger circuit board, single board with two 10mm rails. routed + V-score. Surface treatment HAL 1-40um. Green slodermask and white silkscreen. this board need impedance control. Inner copper thickness 0.5oz and outer copper thickness 1oz finished. Min track / min specing 0.08/0.08mm.
Our General Capabilities: Can be 1-40 Layers rigid board and 1-12 layers flexible circuit board.
Surface treatment(surface finished) can be: HASL, Lead-free HASL, Hard Gold plating, Immersion Gold, Immersion Silver, Immersion Tin, OSP and the Options: Gold Tabs, Selective Au, Carbon Ink, Peelable Mask, Micro Via, Controlled Impedance, Score, LASER Drill, Blind Vias and Buried Vias.
And the soldermask colour can be: green, bule, white,black, red, yellow, orange, matt-green(semi green), matt-black. The silkscreen colour can be: white, black, yellow.
Copper thickness can be: 1-10 oz Outer and 0.5-8 oz inner.
