Industrial control circuit board
  • Industrial control circuit board
  • Industrial control circuit board
Industrial control circuit board
Industrial control circuit board

Industrial control circuit board

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

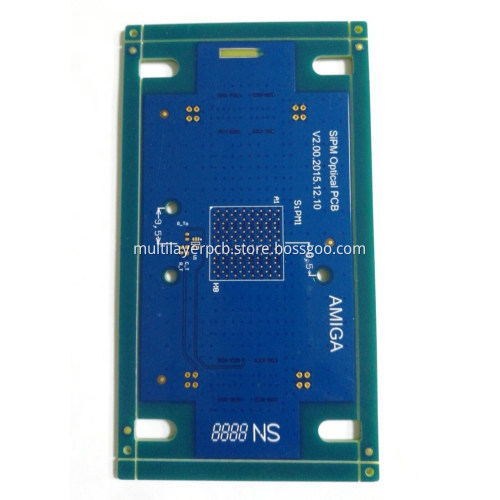

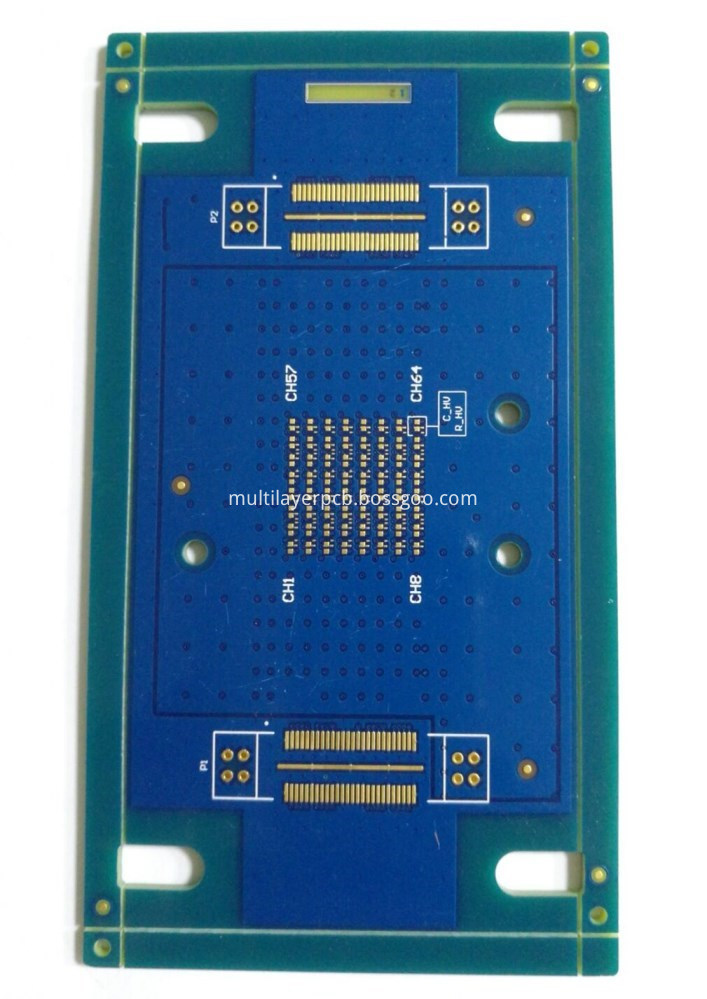

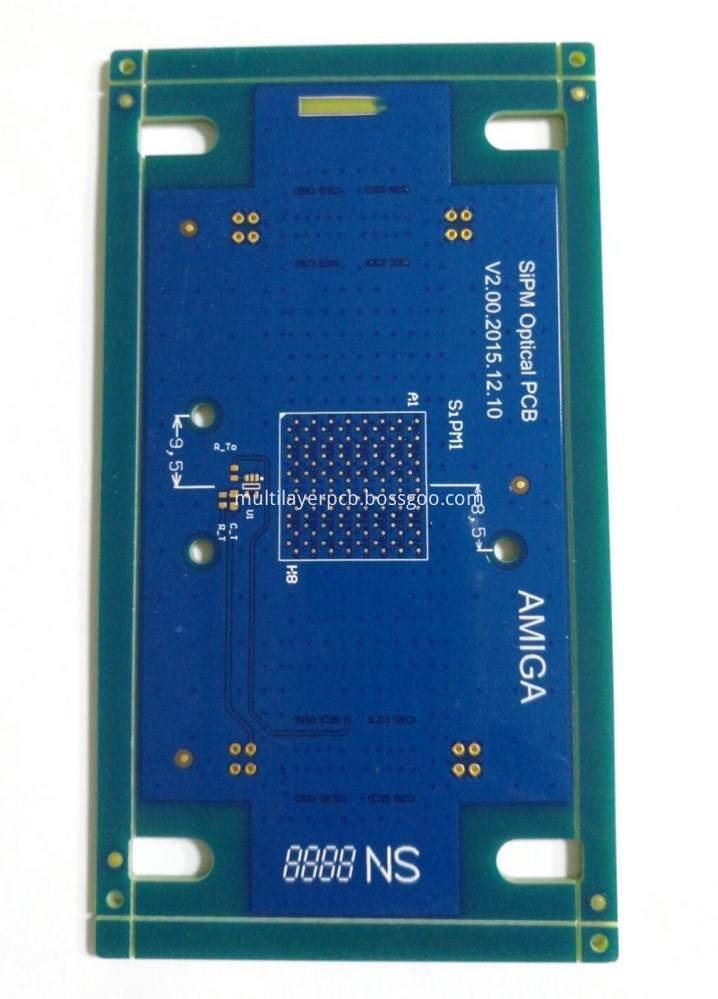

14-layer Consumer electronic circuit board. Base Material: ITEQ, FR4 TG180.  inner copper thickness 0.5 and outer copper thickness 1 oz finished. surface treatment Immersion Gold 2U". With blue colour solder mask. Board thickness 1.8 mm. Min.track/Min spacing 0.12/0.12 mm. Single board with rails, connect with v-cut. 100% AOI and E-test.  L1-L2, L2-L3; L13-14,L12-13 laser drill and L3-L12 buried holes. Vias need to be filled with resin and copper cap.  With 50 ohm Single-terminal impedance and 100ohm differential impedance control.

Industrial control circuit board

Blind & Buried Hole Circuit Board
