Product Description
Product Description

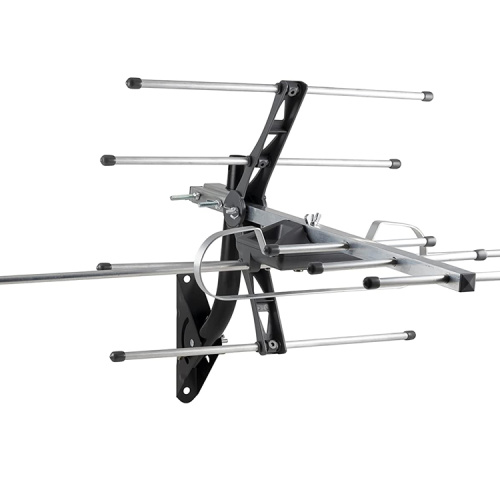

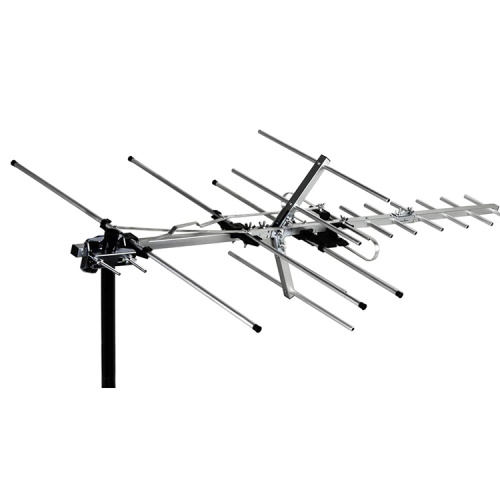

Ground Wave Yagi Digital TV Antenna is made of thickened and hardened anodized aluminum alloy, and can generally be used for about ten years in outdoor environments. The bottom of the Ground Wave Yagi indoor antenna has a strong magnetic base and suction cup, which can be easily attached to glass, metal and other flat surfaces without tedious installation steps; the outdoor antenna is fixed with a bracket, which can be adjusted according to actual needs to ensure that the antenna points to the best reception direction.
Product Attributes
Technical Performance
Yagi antennas are used to steer the WiFi beam. It will enhance the tv antenna hdtv signal/reception in the direction it is pointed.
Yagi antennas can operate without grounding in most cases. However, you can ground the antenna through the outer conductor of the connector and cable or through the mounting hardware. However, we recommend that you install a lightning surge protector between the cellular antenna and the device to prevent lightning strikes to the antenna from damaging your device and equipment.
Ground wave Yagi digital tv antenna has become an ideal choice for domestic and foreign corporate customers due to its excellent durability, strong signal reception capability and convenient installation method. Product Attributes
Technical Performance
- Frequency Range: 174-230/470-862mhz, covering a wide range of television broadcast frequencies to ensure comprehensive signal reception.
- Input Impedance: 75 Ohm, matched to standard TV signal transmission lines for minimal signal loss.
- V.S.W.R (Voltage Standing Wave Ratio): 1.5, low VSWR ensures efficient and stable signal transmission.
- Gain: 28dbi, high-gain design significantly enhances signal reception capabilities.
- Max Input Power: 50w, supports maximum input power to accommodate varying signal strength requirements.
- Cable Length: 3m (or customizable), offering flexible cable length options to suit various installation needs.
- Connector Type: F/LEC, adopts F/LEC connector for compatibility with multiple devices.
- Size: 330*300mm, compact design for easy installation and portability.
- Weight: 0.5kg, lightweight body reduces installation burden.
Service & Support
- Service: OEM & ODM
