Barracuda OMB 868MHz 12dBi Omnidirectional Outdoor Antenna
-
$15.00≥5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Min. Order:
- 5 Piece/Pieces
- Transportation:
- Ocean, Air, Express, Land
- Port:
- Shenzhen, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen China |
|---|---|
| Productivity: | 20000000 |
| Supply Ability: | 20000pcs |
| Payment Type: | T/T,L/C,Paypal,Others |
| Incoterm: | FOB,CIF,EXW,FCA,DDP,DDU,DAF,Express Delivery,DES |
| Certificate: | ce |
| HS Code: | 54363477445 |
| Transportation: | Ocean,Air,Express,Land |
| Port: | Shenzhen,Guangzhou |
Features
- Average gain dBi: 7dBi
- Frequency range: 900-930MHz
- Length of 92cm
- Robust enough to withstand the harsh outdoor environment
- Can connect to the SenseCAP Outdoor Gateway and SenseCAP M1 Indoor Gateway

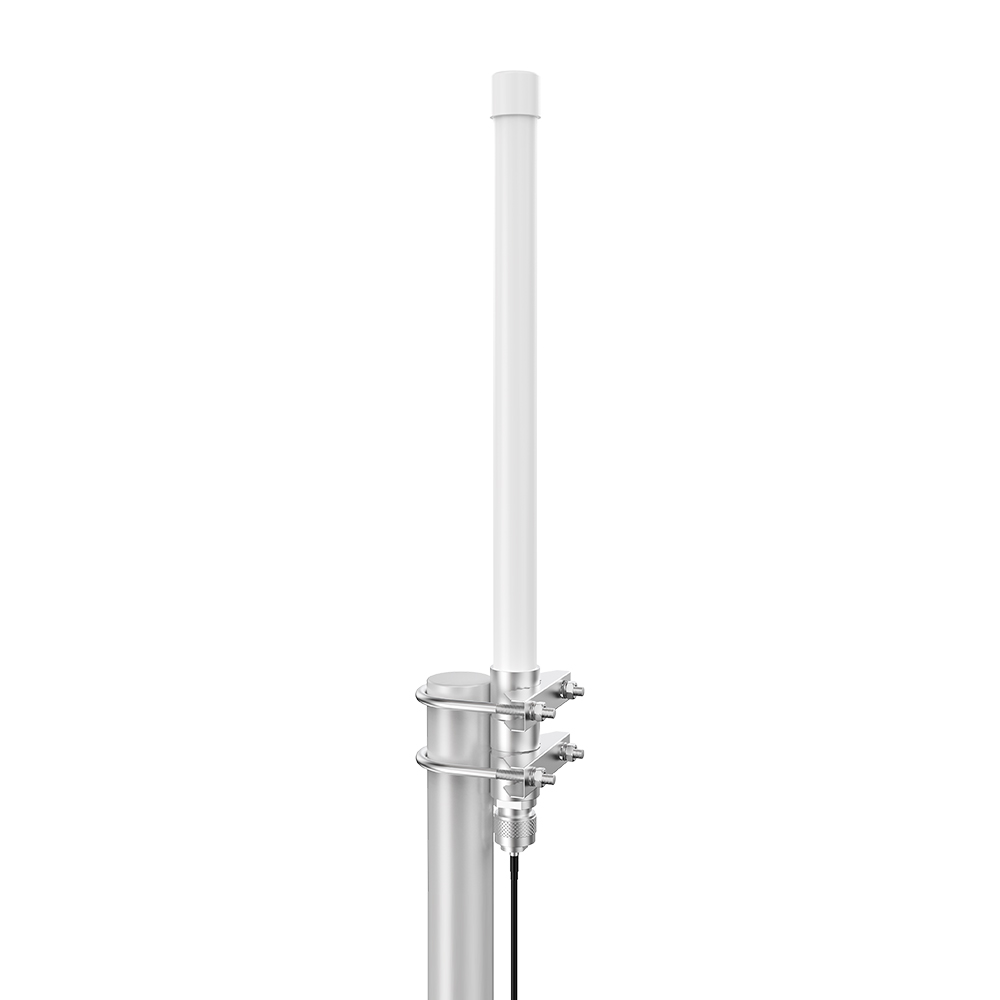

- Includes hardware for mounting
- Comes with a 1m cable
For some applications like in an urban environment or where large stretches of land have to be monitored the normal range of LoRa might not be enough. If you need to increase the range for your LoRa devices, then this outdoor LoRa Fiberglass antenna will be the ideal addition to your LoRa system. It’s a robust solution to provide extra power and range for outdoor LoRa Base stations. The antenna has an average gain of 7dBi, a length of 92cm, and a frequency range from 902-930MHz and it comes with hardware for pole and wall mounting.

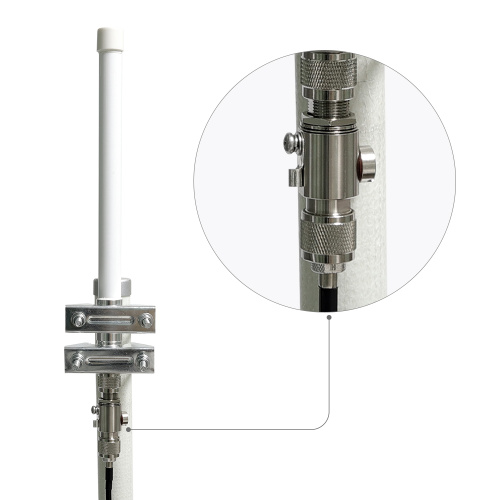

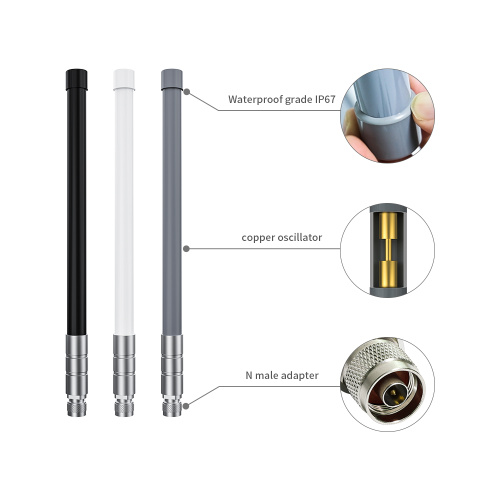

The Antenna has an N-J Double tooth connector, and it comes with an N-Female to RP-SMA plug cable so it can be easily connected to the SenseCAP Gateways.
868MHZ Fiber Glass Antenna ,915MHZ Fiber Glass Antenna ,LoRa Gateway Antenna ,Wifi Antenna ,Fiber Glass Antenna
Application
The antenna can be used in any environment where long-range LoRa connections are required.
- Agriculture
- Environmental Monitoring
- Urban Monitoring
Parameters
|
Frequency |
900-930MHz |
|
Antenna Gain |
7.0 +/-0.8dBi |
|
V.S.W.R |
<=1.5 @ 900~930 MHz |
|
Efficiency |
>=60% |
|
Radiation Pattern |
Omni-Directional |
|
Max Input Power |
>=2W |
|
Polarization |
Linear polarization/ Vertical |
|
Impedance |
50 Ohm |
|
Material of Radiator |
CU |
|
Material of Plastic |
FRP (white light) |
|
Cable Type |
RG-141 50Ohm |
|
Connector Type |
N-J Double tooth connector |
|
Operation Temperature |
-30°C ~65°C |
|
Storage Temperature |
-30°C~65°C |
|
Antenna Color Storage life |
< 2 year |
|
Cable length |
1m |
