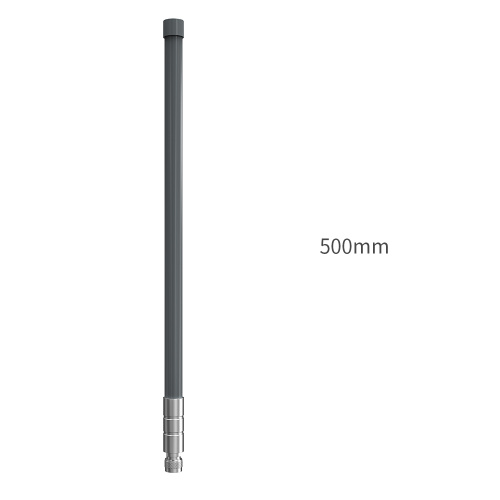

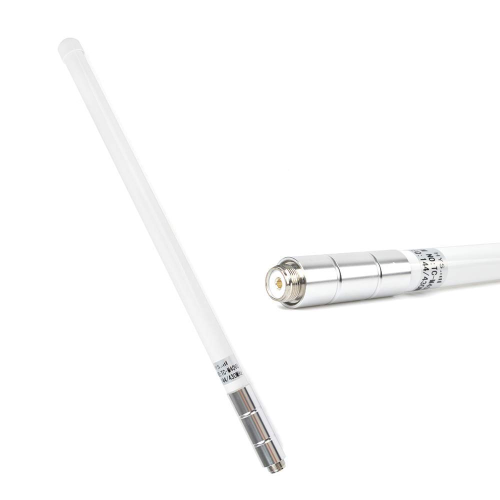

868MHz 915MHz Fiberglass antenna outdoor antenna
- Transportation:
- Land, Air, Ocean, Express, Others
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 20000piece per day |
|---|---|
| Payment Type: | T/T,L/C,D/P,Paypal,D/A |
| Incoterm: | EXW |
| Transportation: | Land,Air,Ocean,Express,Others |
| Port: | Shenzhen |
Lora 868MHZ Rubber Antenna is used in the field of internet of things, and there is still great demand and development space in the market at present. Lora 2.4G indoor Antenna has the characteristics of low power consumption, long distance and high reliability, and is suitable for smart home, smart city, smart agriculture and other fields. With the continuous development and popularization of Internet of Things technology, the market prospect of Lora Wfi Antenna outdoor should be optimistic.
PRODUCT TECHNICAL SPECIFICATION
|
电性能指标Electrical Specifications |
|
|
Frequency Range (MHz) |
860-930 |
|
tape width（Mhz） |
70 |
|
Input Impendence (Ω) |
50 |
|
V.S.W.R |
≤1.5 |
|
Gain (dBi) |
8±0.3 |
|
Polarization Type |
vertica polarization |
|
Radiation Direction |
Completely omnidirectional |
|
half power corner(°) |
H 360°/E 8° |
|
Max Input Power (w) |
100 |
|
Mechanical Specifications |
|
|
Antenna size (mm) |
Ф23x1100 |
|
Antenna cover material |
glass fiber |
|
Connect Type |
N-J |
|
Operating Temperature |
-20℃～+85℃ |
|
Storing Temperature |
-40℃～+85℃ |
|
Mounting |
U bracket installation |
|
Lightning protection |
DC grounding |
|
Wind resistance |
60m/s |
|
Pole |
ф25～ф50 mm |
|
Weight (g) |
520 |
Outdoor Fiberglass 12dbi Omni Directional Antenna
Yetnorson has specialized in 2 G/3 G/4 G/W I F I/T V antenna, and a variety of RF Connectors and Antenna Cable Assemblies. We have an R&D team with 5 engineers who can complete projects according to clients' specifications within 7 days, and more than 500 kinds of present antenna products for your options.
Meantime also have 36 product patents & 8 trademarks, obtained many certifications, including I S O 9 0 0 1 quality system certification, I S O 1 4 0 0 1 environmental management system certification, F C C, C E and so on. We have most advanced equipment includes: Microwave Anechoic Chamber, Frequency Analyzers, Network Analyzers, Digital TV tester, Large horizontal injection molding machines, large vertical injection molding machines, C N C lathes, Automatic assembly line. Each antenna is shipped after passing testing. Engineers constantly optimize the process, and strictly control the quality of products.
And all workers are skilled and master production process, keep quality and quantity, do our best to meet customer requirement.
We always pursue the spirit of innovation and excellence, and let Yetnorson antenna to conduct the world, answer all direction.
Welcome contact us, thank you!
Yetnorson Antenna Co., Ltd, established in 2010, is a professional company engaged in the research, development, sale and service of communication antenna,
Yetnorson has specialized in 2 G/3 G/4 G/W I F I/T V antenna, and a variety of RF Connectors and Antenna Cable Assemblies. We have an R&D team with 5 engineers who can complete projects according to clients' specifications within 7 days, and more than 500 kinds of present antenna products for your options.
Meantime also have 36 product patents & 8 trademarks, obtained many certifications, including I S O 9 0 0 1 quality system certification, I S O 1 4 0 0 1 environmental management system certification, F C C, C E and so on. We have most advanced equipment includes: Microwave Anechoic Chamber, Frequency Analyzers, Network Analyzers, Digital TV tester, Large horizontal injection molding machines, large vertical injection molding machines, C N C lathes, Automatic assembly line. Each antenna is shipped after passing testing. Engineers constantly optimize the process, and strictly control the quality of products.
And all workers are skilled and master production process, keep quality and quantity, do our best to meet customer requirement.
We always pursue the spirit of innovation and excellence, and let Yetnorson antenna to conduct the world, answer all direction.
Welcome contact us, thank you!

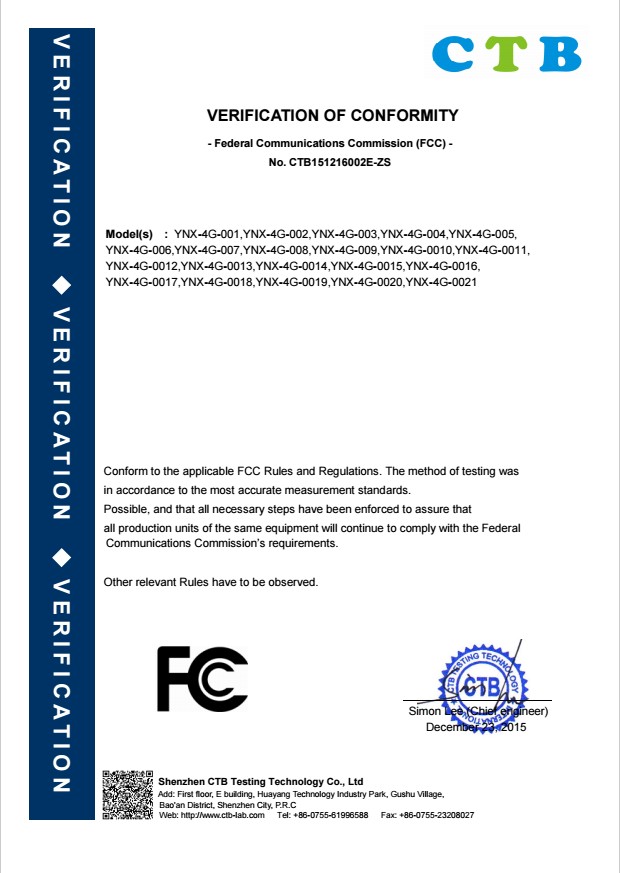

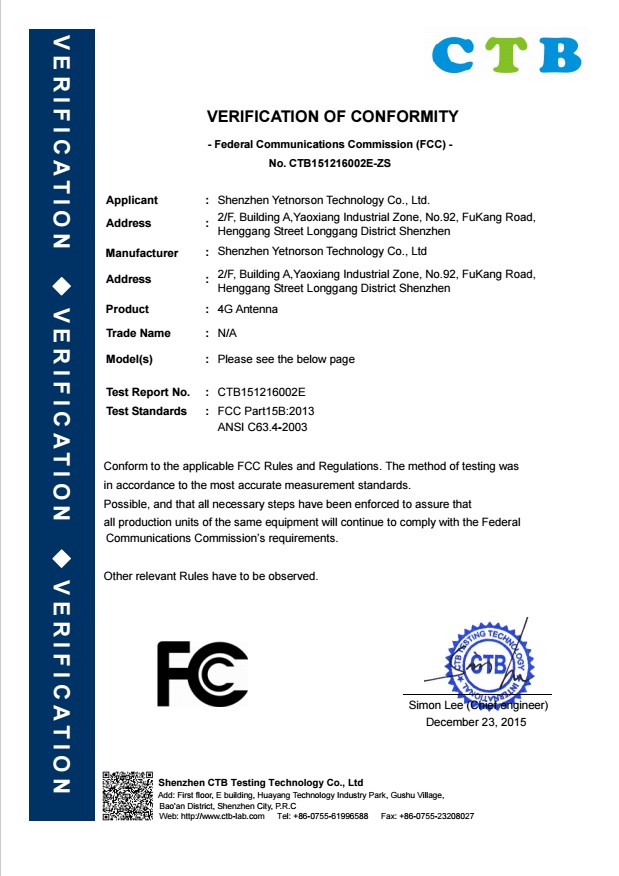

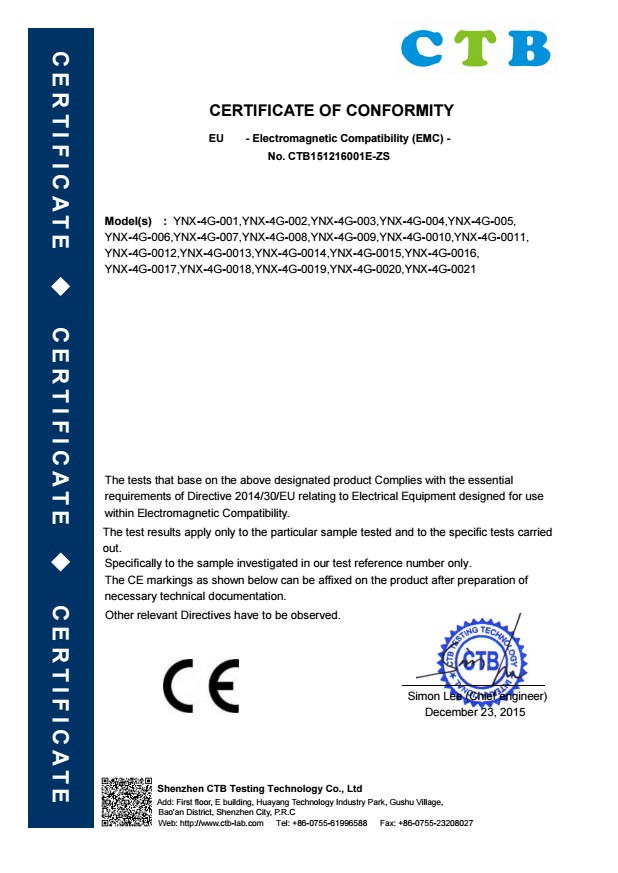

Production Certification
