Double Side Pole Digital Outdoor P6 LED Display
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 18-20 days Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Shanghai
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 5000sqm/Month |
Supply Ability: | 5000sqm/moth |
Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
Incoterm: | FOB,CFR,CIF |
Certificate: | CE, FCC,RoHS |
HS Code: | 8528591090 |
Transportation: | Ocean,Land,Air |
Port: | Shenzhen,Guangzhou,Shanghai |

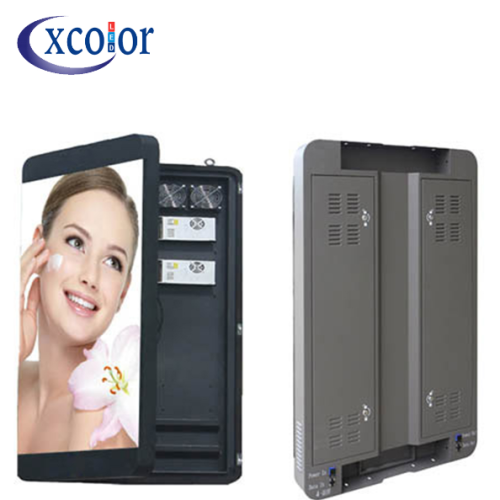

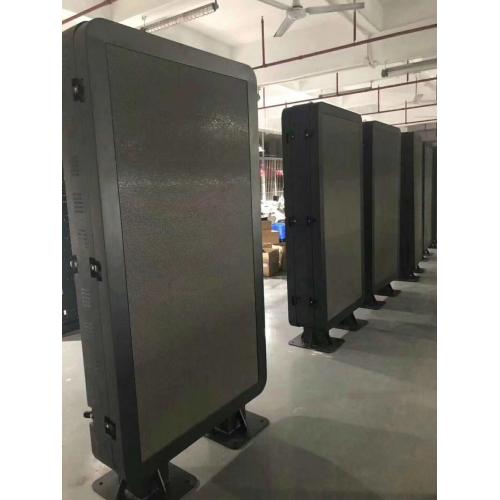

Double Side Pole Digital Outdoor P6 LED Display
It can be used in advertisement,stage concert show background wall, stadium,exhibition, TV-Show, mansion video wall,shopping mall,banks,
schools,bus station,airport,gym,market,factories,monitoring certers,hospitals,bars led video wall etc.
Product Features:
1.High brightness:Above 6000 nits/sq.m
2.High Refresh Rate:≥1920Hz,Take clear picture and video with mobile phone.
3.Easy to wireless control led screen:Support 3G/4G/WIFI/LAN connection, also can be controlled by Mobile phone.
4.Ultra Thin Design:the thickness of cabinet with backdoor is only 17cm
5.Fast and easy to assemble:There have fast lock between cabinet side.
6.Waterproof:Professional structure design for outdoor waterproof,up to IP65
7.Maintenance:Modular design,support single module repair and single pixel repair-saving a lot of cost for you.
Product Display
Product Parameter
Unit Module
Product Name
Double Side Pole Digital Outdoor P6 LED Display
Pixel Pitch
6mm
Module size
192*192mm
Module resolution
32*32dots
Density
27777dot/sqm
Diving method
1/8scan
Led Standard
SMD3535
Pixel configuration
1R1G1B
Cabinet
Cabinet material
Iron
Cabinet size
Customized
Cabinet weight
≥25kg
Main parameter
Best View distance
5-70m
Gray scale
16bits
Refresh Rate
1200HZ
Protection Level
IP65
Color temperature
6500K
View Angle
H:±150 degree V:±120 degree
Colors
>16.7M
Max Consumption
750W/m²
Average Power
250W/m²
Working temperature
- 20℃~+50℃
Driving device
Constant current
Mtbf
10,000Hours
Life span
100,000Hours
Out-of control point
<0.0001
Company Information
Shenzhen Cxcolor Optoelectronics co., Ltd. is a best global supplier of LED display total solution, which is specializing in the R&A, production and market of LED display and LED lighting products. We are equipped with full series of automatic production line, including advanced manufacturing equipment and perfect testing device, which guarantee a monthly capacity of 800 square meters LED display.
Our R&A team possesses 14% of total staff and most of the developing engineers with more than 8 years experience in LED industry. Their market-oriented innovation keeps our leading position in this industry.Quality is our company philosophy. We Insists to offer high quality and best service for our client, Our products has been approved by CCC,CE,FCC,Rohs and etc.Moreover, our products are exported to oversea markets around European countries and middle east area, such as the USA, Dubai, Russia, Sweden, Turkey, Poland, France, Israel, Lebanon, Spain and so on.
Our Service
We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with a comprehensive pre-sales service, product services and after-sales service.
Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.Led Advertising Display Screen
We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.
Led Advertising Display Screen
Service Concept
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.
P8 Outdoor Led Board Display
Service Content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
P8 Outdoor Led Board Display
Warranty Period
Each of our P5 Street Light Pole LED Display Screen comes with at least two years warranty and a lifetime maintanance.
