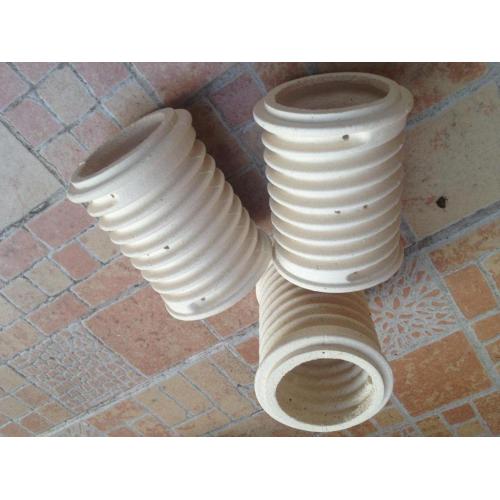

alumina ceramic insulation high strength tube bushing

alumina ceramic insulation high strength tube bushing

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong,China
Supply Ability:	1,000,000 pcs/Month
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB
Certificate:	SGS
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

Our Alumina Ceramic insulated high-strength pipe bushings are carefully crafted with high-quality Alumina Ceramic Block, demonstrating excellent insulation properties and ultra-high mechanical strength. The tube bushings combine the excellent properties of alumina ceramics, such as high temperature resistance, corrosion resistance and excellent electrical insulation, ensuring reliable operation in a variety of extreme environments. Its unique structural design draws on the concept of Interlocking Ceramics Alumina Blocks to enhance the overall stability and durability.

In addition, the application of Alumina Ceramic Sheet further improves the structural strength and insulation effect of the product, ensuring the effective isolation of current and voltage. The tube bushings are suitable for a wide range of electrical equipment and liquid or gas transmission systems in high temperature environments, providing excellent protection and support. Our Alumina Ceramic insulated high-strength pipe bushings are the ideal choice for improving system performance and ensuring safe operation.

properties:

High hardness, high strength, wear resistance, corrosion resistance, high temperacture (1600°), good thermal diffusivity, good insulativity, low cost etc.

Alumina Ceramic Sheet

Data Sheet↓

Item	Unit	Typical Values
Physical Properties
Color	white
Density	g/cm3	6.0
Zirconia Content	%	94.4%
Gas permeability	0
Water Absorption	0
Crystal Size	um	0.5
Mechanical Properties
Rockwell Hardness(45N)	R45N	78
Vickers Hardness (Load 500g)	Gpa(Kg/mm²)	11.5(1175)
Flexural Strength(20°C)	Mpa	800
Compressive Strength(20°C)	Mpa	2000
Modulus of Elasticity(20°C)	Gpa	＞200
Fracture Toughness(20°C)	MPam1/2	9.0
Thermal Properties
Thermal Conductivity(20°C-400°C)	W(m.K)	2.5
Thermal Expansion Coefficient	10-6/°C	9.6
Thermal Shock Resistance	△T°C	250
