52mm 4Ohm 5W two magnets Multimedia Speaker Driver
-
$1.492000-2999 Piece/Pieces
-
$1.193000-4999 Piece/Pieces
-
$1.09≥5000 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T |
|---|---|
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air,Express |

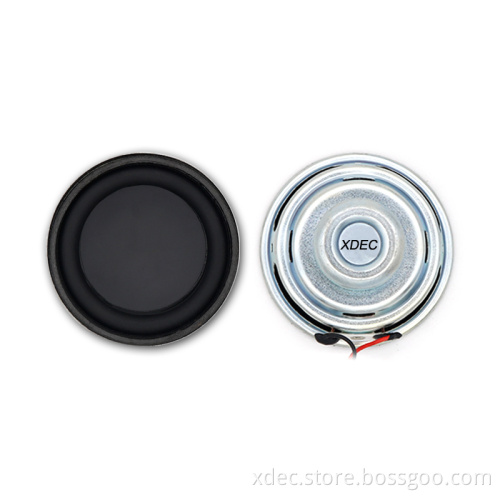

52mm 4Ohm 5W two magnets Multimedia Speaker Driver
IPX67 class waterproof 52mm 4ohm 5w Bluetooth speaker,made of specialized design waterproof cone,also surround with rubber edge,it help to have a waterproof function and a great bass, also we have this round type frame,make the speaker have better and wider sound range.12 years of focus on research and development of speakers,trusted by the majority of customers beautiful color,strong vibration to providing strong sound;our 52mm have a wide use application:mini stereo,balance car,toy,electronic equipment,communication equipment, etc .This model is excellent for 52mm 5W Bluetooth audio bass speakers,Bluetooth speaker,learning machine speakers,Multimedia Speakers,79dB sensitivity,thick low frequency, strong vibration,it is a favorite product for fever lovers.Our XDEC is a professional speaker mnaufacturer for 12 years, mainly design and produce vibration speaker,headphone speaker driver,tablet speaker unit,multimedia speaker unit,soundbox speaker,Mylar Speaker etc.Welcome OEM ODM sound produce and provide sound solution for you!
|
NO.
|
Item
|
Specification
|
Condition
|
|
1
|
Dimensions
|
52*29.5H mm
|
|
|
2
|
Nomial Impedance
|
4±15% OHM
|
At 1.0KHz / 2.0V
|
|
3
|
Input power
|
Rated：5W/ Max：8W
|
At4.47V /5.65V
|
|
4
|
Resonance Frequency
|
110±20%Hz
|
At2.0V
|
|
5
|

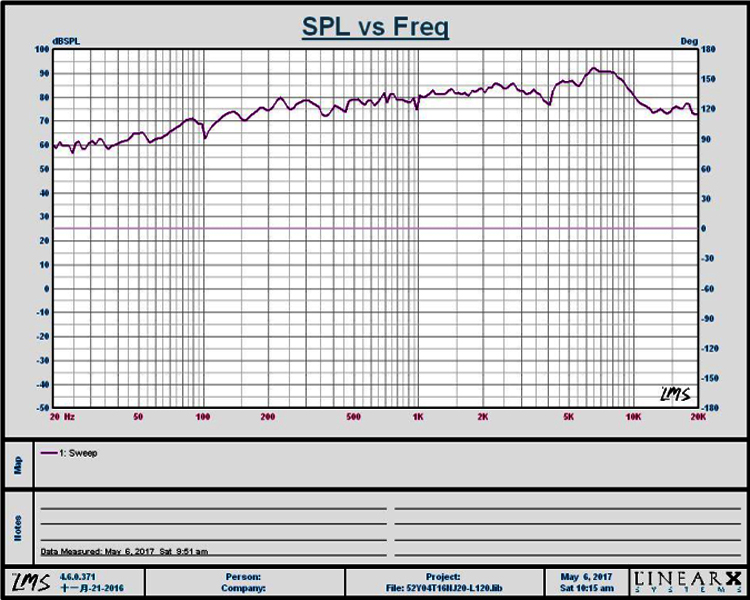

S．P．L．
|
79±3 dB(1W/1M)
|
At0.8K/1.0K/1.2K/1.5KHz(Average)
|
|
6
|
Frepuency Range
|
F0~15K
|
Output S.P.L. -10dB
|
|
7
|
Distortion
|
5%Max
|
At 1.0KHz 1W/1M
|
|
8
|
Buzze & Rattle
|
Not be audible sine wave between at 4.47V /80~5KHz.
|
|
|
9
|
Polarity
|
Diaphragm shall move forward.
|
|
|
10
|
Load test
|
Must be normal after load test:white noise 48 hours.
|
|
|
11
|
High TEMP test
|
After having been in a test chamber for 48 hours at the condition of
+60 ℃ 20~25% R.H and keep 2 hours.
|
|
|
12
|
Cold TEMP test
|
After having been in a test chamber for 48 hours at the condition of
－25℃ ±3℃ and keep 2 hours.
|
|
|
13
|
Humidity test
|
After having been in a test chamber for 48 hours at the condition of
+40 ℃ 90~95%R.H and keep 4 hours.
|
|
|
14
|
Drop test
|
The speaker shall be dropped 2 times, clause 8 shall be satisfied.
|
|
|
15
|
Weld
|
terminal weld: 350℃/≤2~3sec*2bit.
|
|
|
16
|
Store temp
|
－25℃ To +60℃
|
|
All the above parameters can be adjusted or customized according to customer requirements.

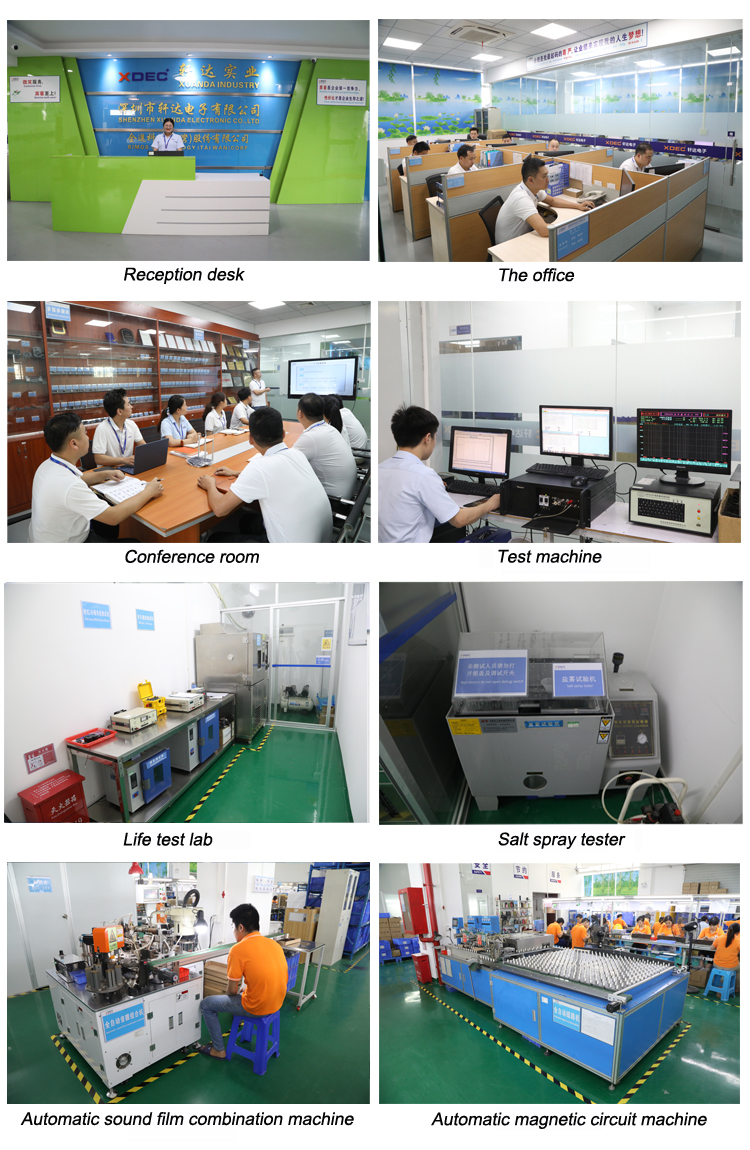

Shenzhen Xuanda Electronics Co., Ltd(XDEC) was founded in 2009 and is specializing in researching, designing, manufacturing of various speaker units and microphone units which are widely used for headphone, intercom, telephone, cordless phone,tablet-pc,notebook-pc, TV, navigator, headset, recorder, mini speaker, etc.

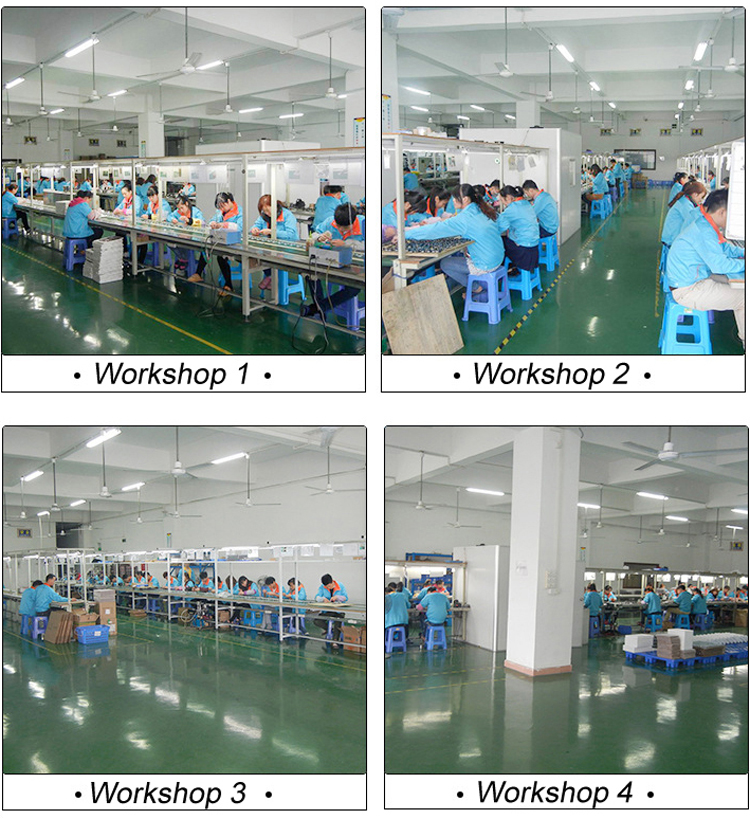

XDEC is located in Shenzhen, which is easy with air/sea transportation. XDEC has over 200 employees, and has become proven partner of many domestic and oversea customers by its strong researching and development capabilities, high quality and good service. In order to insure excellent quality and nice sound, XDEC always takes technical innovations as the driving force of sustainable development, and provides customers omnibearing design and engineering service from part development to final assembly.
XDEC has been adhering to business ideas of “Integrity, Quality, Innovation, Service”, strictly controlling every process of the production, stressing on R&D and quality control and introducing advance production equipments to meet customers’
demands.Sincerely we would like to cooperate with friends all over the world. XDEC will insist on top-quality and better servicein order to create the rapid development together with all friends.

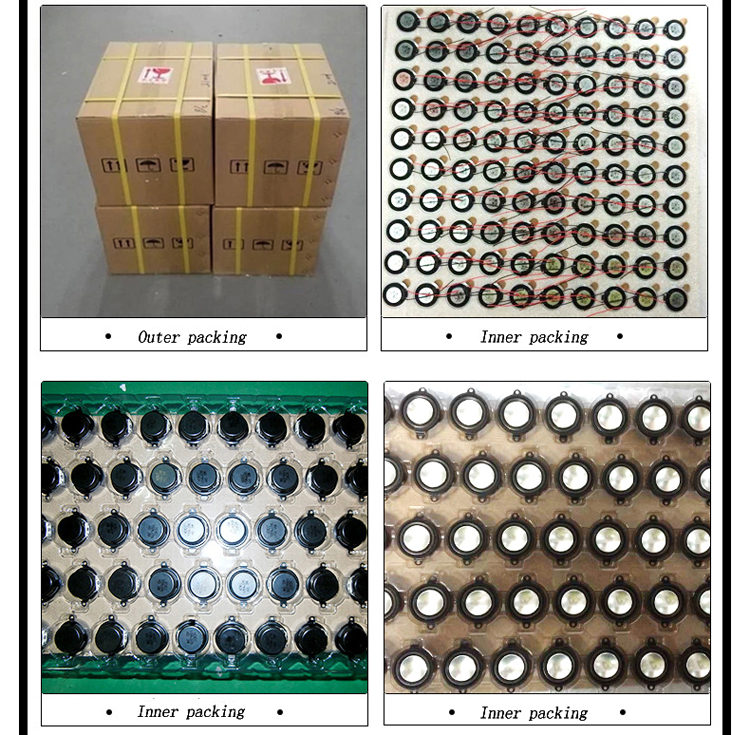

Inner packing: EPE foam, Styrofoam or Blister packaging
Outer packing: Master carton
Delivery time: 15 days for normal orders, 10 days for urgent orders.
Delivery method: by express, by air or by sea.
XDEC: 3000pcs for one model.
Q2.Do you support OEM and ODM services?
XDEC: Yes, we can customize products according to the drawing.Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Q3. What are the payment methods?
XDEC: T/T, PayPal, Western Union, Money Gram.
Q4. What are the payment terms?
XDEC: 30% deposit in advance and 70% balance before delivery.
Q5. Can I get some free samples before mass production?
XDEC: Of course! We will be happy to send you free samples for your quality evaluation. You just need to bear shipping cost.
Q6. How long can I get the samples?
XDEC: Usually we make samples around 3-5 days, it also depends on your product and request.
