3.5 inch 8Ohm 8watt big power Vibration Speaker
-
$7.903000-4999 Piece/Pieces
-
$6.905000-9999 Piece/Pieces
-
$6.50≥10000 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen Guangdong China |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Yantian |

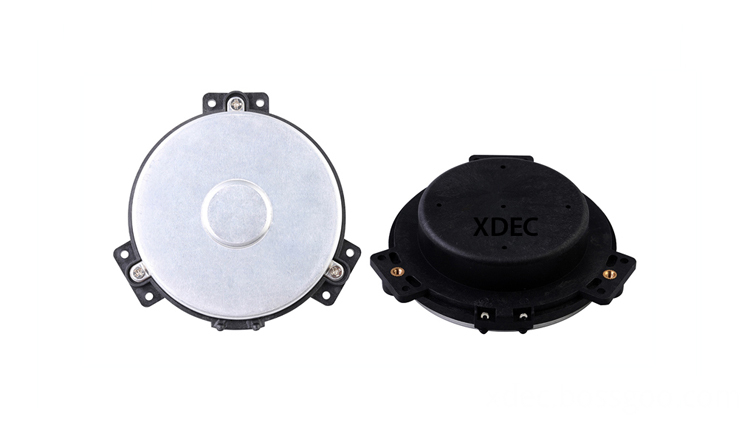

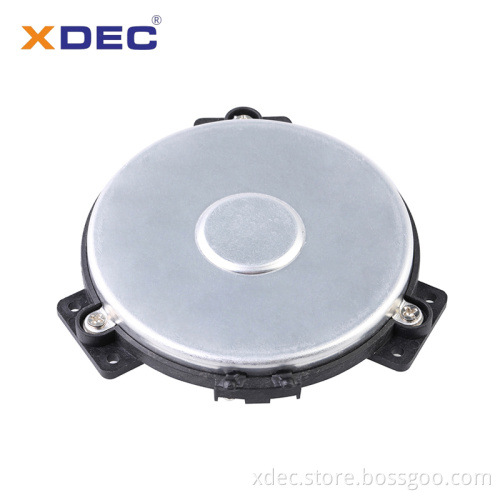

3.5 inch 8Ohm 8watt big power Vibration Speaker

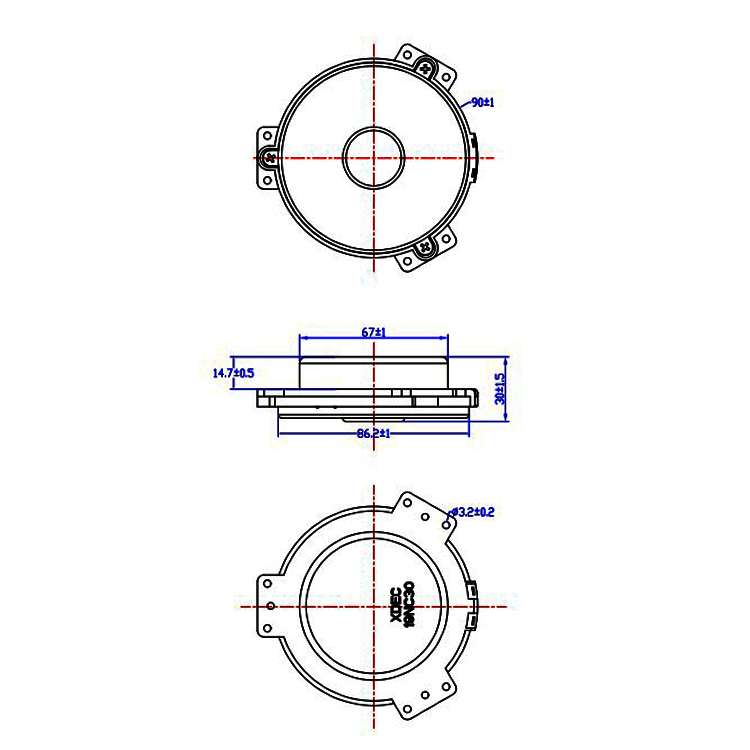

1. 90mm audio flat vibration speaker,with 30mm height,rated input power 8w,max input power 10W,norminal impedance 8ohm.
2. Neodymium magnet,high strong motor material,use time longer,wires and connectors are avalieble.
3. Made of high class spider,26mm voice coil,heat resistant lead wires.
4. High directivity,flat assemble,flat audio exciter.360 degree all direction sound,high HIFI.
Mainly used for: Massager machine, massager chair,vibration machine,home audio products,in-wall speaker,mural,bath crock and so on.Besides this vibration speaker,our XDEC speaker also have headphone speaker driver,tablet speaker unit, multimedia speaker unit, soundbox speaker,mylar speaker these series speaker types, total over 1200 type of speaker models for you choose.
|
NO.
|
Item
|
Specification
|
Condition
|
|
1
|
Dimensions
|
90*30H mm
|
|
|
2
|
Nomial Impedance
|
8±15% OHM
|
At 1.0KHz / 2.83V
|
|
3
|
Input power
|
Rated：8W/ Max：10W
|
At8.0V /8.94V
|
|
4
|
Resonance Frequency
|
±20%Hz
|
At2.83V
|
|
5
|
S．P．L．
|
±3 dB(1W/1M)
|
At (Average)
|
|
6
|
Frepuency Range
|
/
|
Output S.P.L. -10dB
|
|
7
|
Distortion
|
5%Max
|
At 1.0KHz 1W/1M
|
|
8
|
Buzze & Rattle
|
Not be audible sine wave between at 8V /40~3KHz.
|
|
|
9
|
Polarity
|
Diaphragm shall move forward.
|
|
|
10
|
Load test
|
Must be normal after load test:Pink noise 48 hours.
|
|
|
11
|
High TEMP test
|
After having been in a test chamber for 48 hours at the condition of
+130℃ 20~25%R.H and keep 2 hours.
|
|
|
12
|
Cold TEMP test
|
After having been in a test chamber for 48 hours at the condition of
-25℃±3℃ and keep 2 hours.
|
|
|
13
|
Humidity test
|
After having been in a test chamber for 48 hours at the condition of
+40 ℃ 90~95%R.H and keep 4 hours.
|
|
|
14
|
Drop test
|
The speak shall be dropped 2 times, clause 8 shall be satisfied.
|
|
|
15
|
Weld
|
terminal weld: 350℃/≤2~3sec*2bit.
|
|
|
16
|
Store temp
|
－25℃ To +60℃
|
|
Shenzhen Xuanda Electronics Co., Ltd(XDEC) was founded in 2009 and is specializing in researching, designing, manufacturing of various speaker units and microphone units which are widely used for headphone, intercom, telephone, cordless phone,tablet-pc,notebook-pc, TV, navigator, headset, recorder, mini speaker, etc.
XDEC is located in Shenzhen, which is easy with air/sea transportation. XDEC has over 200 employees, and has become proven partner of many domestic and oversea customers by its strong researching and development capabilities, high quality and good service. In order to insure excellent quality and nice sound, XDEC always takes technical innovations as the driving force of sustainable development, and provides customers omnibearing design and engineering service from part development to final assembly.
XDEC has been adhering to business ideas of “Integrity, Quality, Innovation, Service”, strictly controlling every process of the production, stressing on R&D and quality control and introducing advance production equipments to meet customers’
demands.Sincerely we would like to cooperate with friends all over the world. XDEC will insist on top-quality and better servicein order to create the rapid development together with all friends.
Inner packing: EPE foam, Styrofoam or Blister packaging
Outer packing: Master carton
Delivery time: 15 days for normal orders, 10 days for urgent orders.
Delivery method: by express, by air or by sea.
XDEC: 3000pcs for one model.
Q2.Do you support OEM and ODM services?
XDEC: Yes, we can customize products according to the drawing.Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Q3. What are the payment methods?
XDEC: T/T, PayPal, Western Union, Money Gram.
Q4. What are the payment terms?
XDEC: 30% deposit in advance and 70% balance before delivery.
Q5. Can I get some free samples before mass production?
XDEC: Of course! We will be happy to send you free samples for your quality evaluation. You just need to bear shipping cost.
Q6. How long can I get the samples?
XDEC: Usually we make samples around 3-5 days, it also depends on your product and request.
