Professional R&D team 2035B 8Ohm 2W speaker
  • Professional R&D team 2035B 8Ohm 2W speaker
  • Professional R&D team 2035B 8Ohm 2W speaker
  • Professional R&D team 2035B 8Ohm 2W speaker
Professional R&D team 2035B 8Ohm 2W speaker
Professional R&D team 2035B 8Ohm 2W speaker
Professional R&D team 2035B 8Ohm 2W speaker

Professional R&D team 2035B 8Ohm 2W speaker

  • $0.75
    2000-2999 Piece/Pieces
  • $0.69
    3000-4999 Piece/Pieces
  • $0.59
    ≥5000 Piece/Pieces
Transportation:
Ocean, Land, Express, Air
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Incoterm: EXW
Transportation: Ocean,Land,Express,Air
Product Description
Product Description

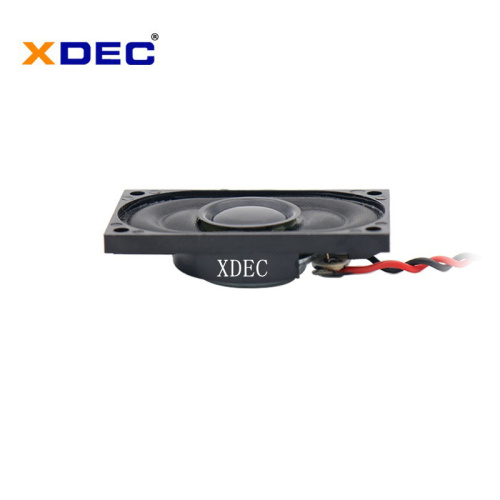

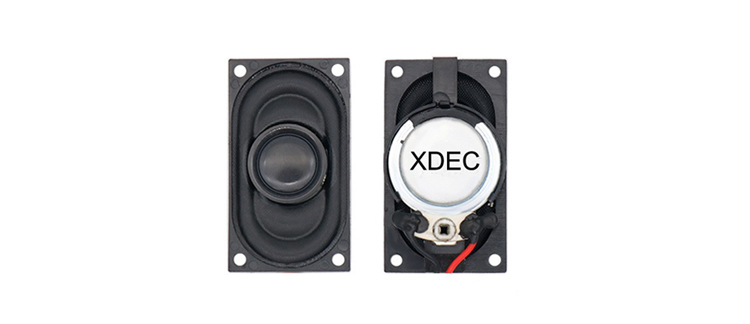

Professional R&D team 2035B 8Ohm 2W speaker

XDEC speaker provide over 1200 type of speaker driver for client needs since 2008.For now already reach and gain rich experience on design and produce speaker drivers,box speaker and so on.2035 speaker is a hot prodcut for tablet,computer speaker,MP4 player, advertising machine and so on.It can provide a clear and louder sound,we all know these product will need a loud sound speaker to be the sound player,use our this 2035 speaker will be a good choice,sound level can be 92db at 0.1w 0.1m,also our XDEC have 2035 8ohm 1w speaker,2035 8ohm 0.5w speaker,also have 2040 4ohm 1w speaker,have enough choice for you choose.Special speaker,2035 speaker driver,square speaker,this is belong to tablet speaker driver type,sound is louder as 92db,enough for GPS speaker,computer speaker, laptop speaker,smart pad speaker,medical device speaker and so on.




Product Specification
NO.
Item
Specification
Condition
1

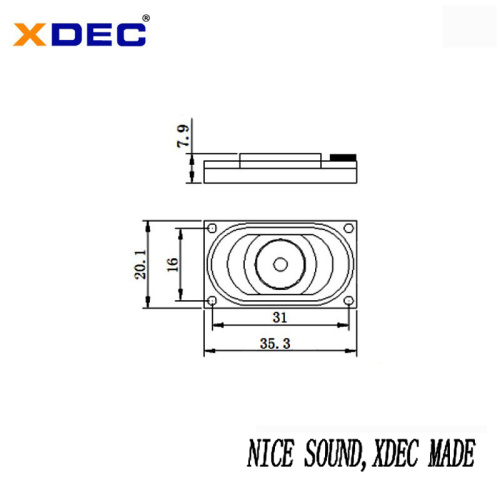

Dimensions
20*35.3*7.9H mm
2
Nomial Impedance
8±15% OHM
At 1.0KHz / 0.96V
3
Input power
Rated:2W/ Max:3W
At 4.0V /4.89V
4
Resonance Frequency
1060±20%Hz
At0.96V
5

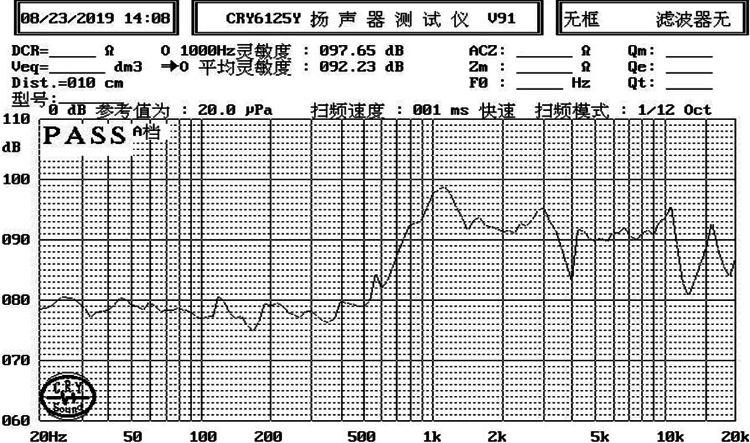

S.P.L.
92±3 dB(0.1W/0.1M)
At (Average)
6
Frepuency Range
F0~20K
Output S.P.L. -10dB
7
Distortion
5%Max
At 1.0KHz 0.1W/0.1M
8
Buzze & Rattle
Not be audible sine wave between at  4.0V /200~3KHz.
9
Polarity
Diaphragm shall move forward.
10
Load test
Must be normal after load test:white noise 48 hours.
11
High TEMP test
After having been in a test chamber for 48 hours at the condition of
+60 ℃ 20~25%R.H and keep 2 hours.
12
Cold TEMP test
After having been in a test chamber for 48 hours at the condition of
-25℃±3℃ and keep 2 hours.
13
Humidity test
After having been in a test chamber for 48 hours at the condition of
+40 ℃ 90~95%R.H and keep 4 hours.
14
Drop test
The speak shall be dropped 2 times, clause 8 shall be satisfied.
15
Weld
terminal weld: 350℃/≤3~5sec*2bit.
16
Store temp
-25℃ To +60℃
All the above parameters can be adjusted or customized according to customer requirements.

Our Company

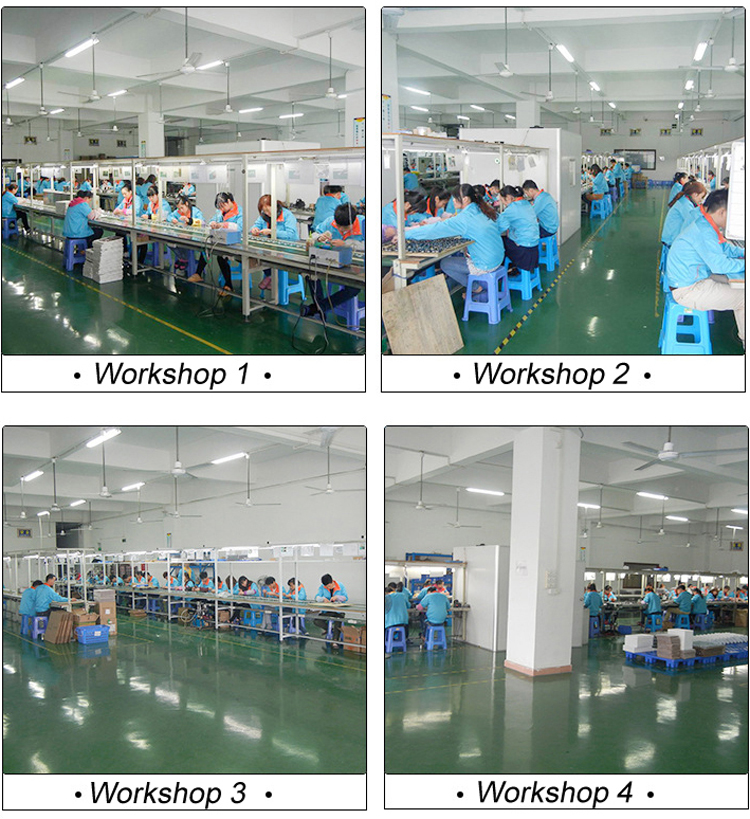

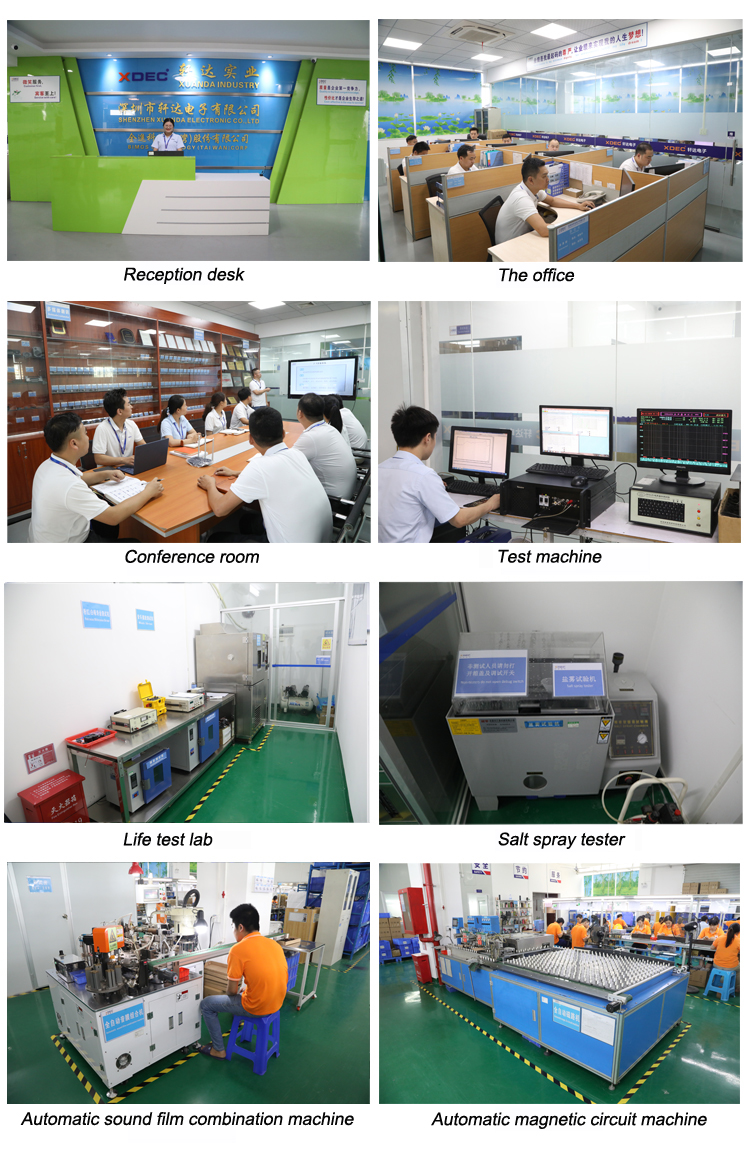

Shenzhen Xuanda Electronics Co., Ltd(XDEC) was founded in 2009 and is specializing in researching, designing, manufacturing of various speaker units and microphone units which are widely used for headphone, intercom, telephone, cordless phone,tablet-pc,notebook-pc, TV, navigator, headset, recorder, mini speaker, etc.

XDEC is located in Shenzhen, which is easy with air/sea transportation. XDEC has over 200 employees, and has become proven partner of many domestic and oversea customers by its strong researching and development capabilities, high quality and good service. In order to insure excellent quality and nice sound, XDEC always takes technical innovations as the driving force of sustainable development, and provides customers omnibearing design and engineering service from part development to final assembly.

XDEC has been adhering to business ideas of “Integrity, Quality, Innovation, Service”, strictly controlling every process of the production, stressing on R&D and quality control and introducing advance production equipments to meet customers’

demands.Sincerely we would like to cooperate with friends all over the world. XDEC will insist on top-quality and better servicein order to create the rapid development together with all friends.


Packing & Delivery

Inner packing: EPE foam, Styrofoam or Blister packaging

Outer packing: Master carton


Transport

Delivery time: 15 days for normal orders, 10 days for urgent orders.

Delivery method: by express, by air or by sea.


FAQ
Q1. What is the MOQ?
XDEC: 3000pcs for one model.
Q2.Do you support OEM and ODM services?
XDEC: Yes, we can customize products according to the drawing.Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Q3. What is the delivery time?
XDEC: 15 days for normal orders, 10 days for urgent orders.
Q4. What are the payment methods?
XDEC: T/T, PayPal, Western Union, Money Gram.
Q5. What are the payment terms?
XDEC: 30% deposit in advance and 70% balance before delivery.
Q6. Can I get some free samples before mass production?
XDEC: Of course! We will be happy to send you free samples for your quality evaluation. You just need to bear shipping cost.
Q7. How long can I get the samples?
XDEC: Usually we make samples around 3-5 days, it also depends on your product and request.
