6 inch 8Ohm 50W glass fiber cone speaker
  • 6 inch 8Ohm 50W glass fiber cone speaker
  • 6 inch 8Ohm 50W glass fiber cone speaker
  • 6 inch 8Ohm 50W glass fiber cone speaker
6 inch 8Ohm 50W glass fiber cone speaker
6 inch 8Ohm 50W glass fiber cone speaker
6 inch 8Ohm 50W glass fiber cone speaker

6 inch 8Ohm 50W glass fiber cone speaker

  • $4.99
    3000-9999 Piece/Pieces
  • $4.67
    10000-99999 Piece/Pieces
  • $4.65
    ≥100000 Piece/Pieces
Transportation:
Ocean, Land, Air, Express
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: ShenZhen GuangDong China
Payment Type: T/T
Incoterm: FOB
Transportation: Ocean,Land,Air,Express
Product Description
Product Description

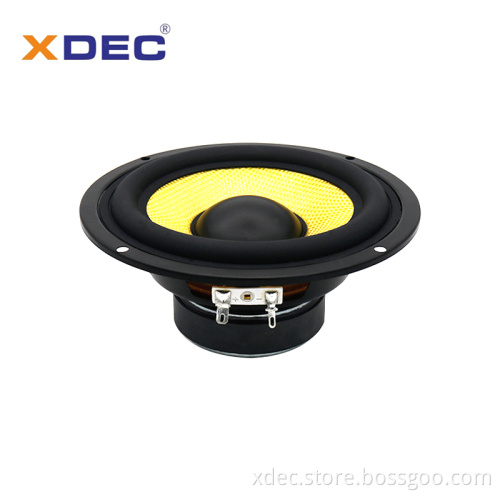

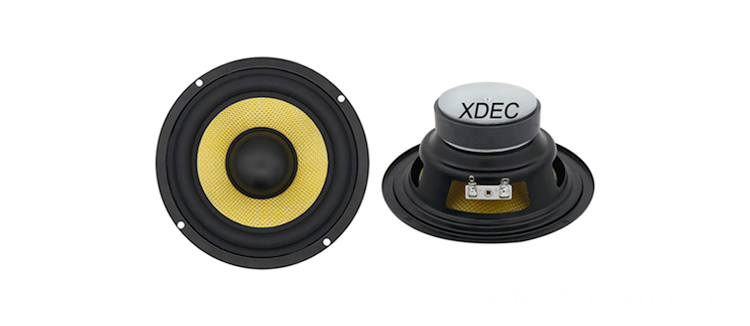

6 inch strong power 149*63mm 8Ohm 50W glass fiber cone multimedia speaker

XDEC speaker new design product 8Ohm 50W round multimedia speaker driver,it's a 6 inch speaker 149mm speaker driver. Using with glass fiber as cone,can be very low frequency,is a good choice for a very nice bass speaker.Using with 70mm big external ferrite magnets,so it's power source is strong and big, widely using in stage speaker, advertising speaker, portable speaker,outdoor speaker,GPS navigator,broadcasting system and so on.




Product Specification
NO.
Item
Specification
Condition
1
Dimensions

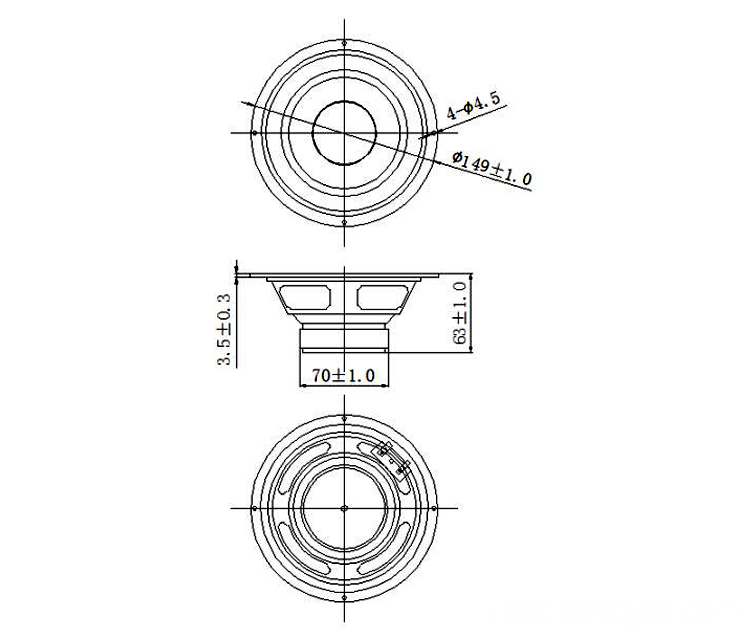

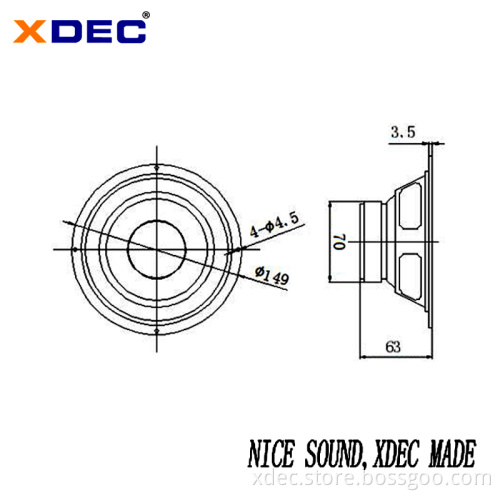

149*63H mm
2
Nomial Impedance
8 OHM
DCR:7.2±15%Ω
3
Input power
Rated: 50W
At 20V
4
Resonance Frequency
75±20%Hz
At 2.0V
5
S.P.L.
83±3 dB(0.5W/0.5M)
At0.8K/1.0K/1.2K/1.5KHz (Average)
6

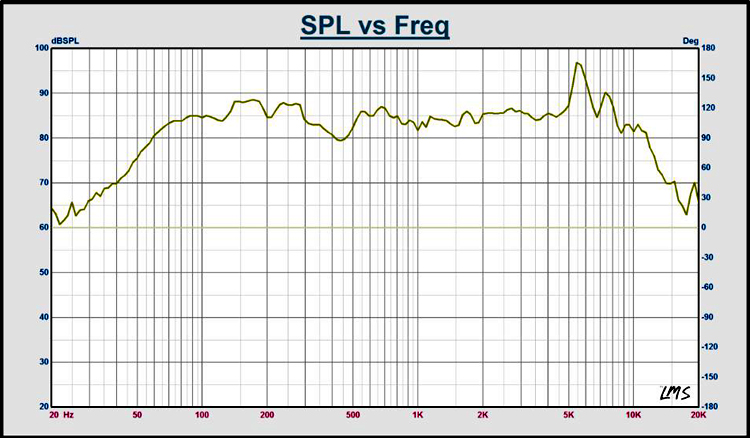

Frepuency Range
F0~20K
Output S.P.L. -10dB
7
Distortion
5%Max
At 1.0KHz  0.1W/0.1M
8
Buzze & Rattle
Not be audible sine wave between at 20V /70~5KHz.
9
Polarity
Diaphragm shall move forward.
10
Load test
Must be normal after load test:white noise 96 hours.
11
High TEMP test
After having been in a test chamber for 48 hours at the condition of
+60 ℃ 20~25% R.H and keep 2 hours.
12
Cold TEMP test
After having been in a test chamber for 48 hours at the condition of
-25℃ ±3℃ and keep 2 hours.
13
Humidity test
After having been in a test chamber for 48 hours at the condition of
+40 ℃ 90~95%R.H and keep 4 hours.
14
Drop test
The speak shall be dropped 2 times, clause 8 shall be satisfied.
15
Weld
terminal weld: 350℃/≤2~3sec*2bit.
16
Store temp
-25℃ To +60℃

Product Application
Mini stereo,LED advertising machine,Smart projector,Early education machine,Headphone,Interphone,Cordless phone,Notebook,Portable DVD,TV,GPS Navigation,Building Security,Incar Multimedia System,Mini audio,etc


Our Company

Shenzhen Xuanda Electronics Co., Ltd(XDEC) was founded in 2009 and is specializing in researching, designing, manufacturing of various speaker units and microphone units which are widely used for headphone, intercom, telephone, cordless phone,tablet-pc,notebook-pc, TV, navigator, headset, recorder, mini speaker, etc.

XDEC is located in Shenzhen, which is easy with air/sea transportation. XDEC has over 200 employees, and has become proven partner of many domestic and oversea customers by its strong researching and development capabilities, high quality and good service. In order to insure excellent quality and nice sound, XDEC always takes technical innovations as the driving force of sustainable development, and provides customers omnibearing design and engineering service from part development to final assembly.

XDEC has been adhering to business ideas of “Integrity, Quality, Innovation, Service”, strictly controlling every process of the production, stressing on R&D and quality control and introducing advance production equipments to meet customers’

demands.Sincerely we would like to cooperate with friends all over the world. XDEC will insist on top-quality and better servicein order to create the rapid development together with all friends.


Packing & Delivery

Inner packing: EPE foam, Styrofoam or Blister packaging

Outer packing: Master carton


Transport

Delivery time: 15 days for normal orders, 10 days for urgent orders.

Delivery method: by express, by air or by sea.


FAQ
Q1. What is the MOQ?
XDEC: 3000pcs for one model.
Q2.Do you support OEM and ODM services?
XDEC: Yes, we can customize products according to the drawing.Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Q3. What are the payment methods?
XDEC: T/T, PayPal, Western Union, Money Gram.
Q4. What are the payment terms?
XDEC: 30% deposit in advance and 70% balance before delivery.
Q5. Can I get some free samples before mass production?
XDEC: Of course! We will be happy to send you free samples for your quality evaluation. You just need to bear shipping cost.
Q6. How long can I get the samples?
XDEC: Usually we make samples around 3-5 days, it also depends on your product and request.
