Full range 2840 soundbox speaker 8ohm 1watt
-
$0.532000-2999 Piece/Pieces
-
$0.443000-4999 Piece/Pieces
-
$0.43≥5000 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Yantian, Shenzhen, China
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T |
|---|---|
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Yantian,Shenzhen,China |
Product Description
Product Description

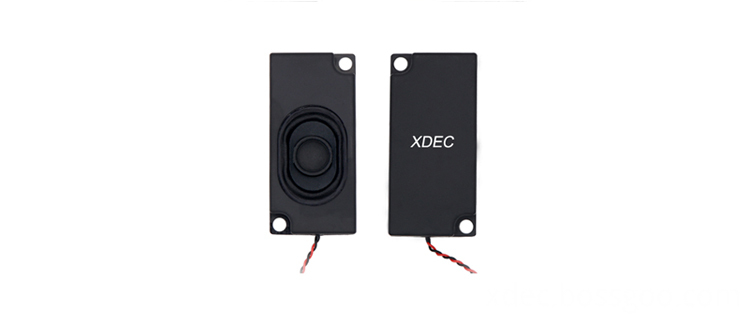

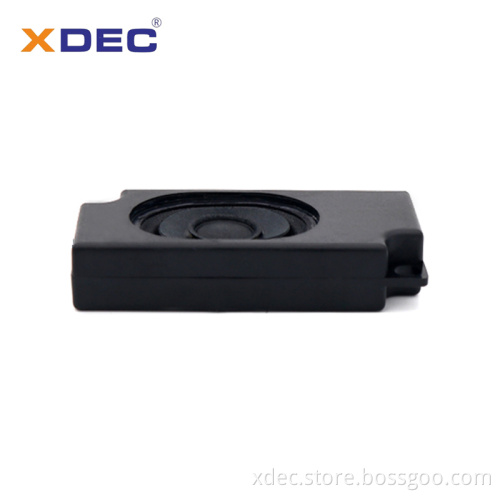

Full range 2840 soundbox speaker 8ohm 1watt
2840 box speaker is a one of mature products,mini size full range speaker with box design,can fit into many applications which need full range sound solution.This 8ohm nominal impedance,1watt rated input power ,2watt max input power BOX2840 speaker,once you own this products,plus a IC board then you can play on a nice full range music.This box speaker can save you many time and cost on test and try sample. Besides,we have other size box speaker designs,welcome contact us for more.
Product Specification
|
NO.
|
Item
|
Specification
|
Condition
|
|
1
|
Dimensions
|

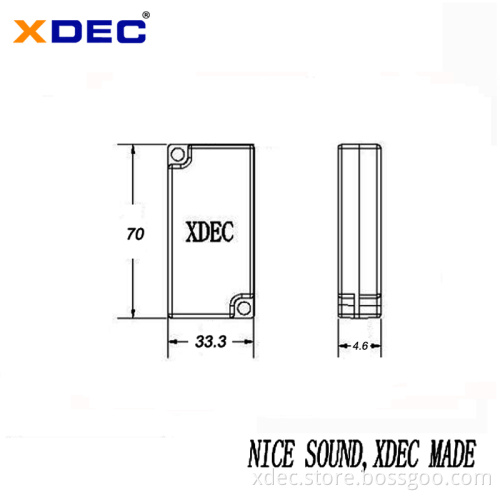

Φ33.3*70*14.6Hmm
|
|
|
2
|
Nomial Impedance
|
8±15% OHM
|
At 1KHz / 0.89V
|
|
3
|
Input power
|
Rated：1.0W/ Max：2.0W
|
At 2.83V /4.0V
|
|
4
|
Resonance Frequency
|
710±20%Hz
|
At0.89V
|
|
5
|
S．P．L．
|
97±3 dB(0.1W/0.1M)
|
At(Average)
|
|
6
|
Frepuency Range
|
F0~20K
|
Output S.P.L. -10dB
|
|
7
|
Distortion
|
5%Max
|
At 1.0KHz 0.1W/0.1M
|
|
8
|
Buzze & Rattle
|
Not be audible sine wave between at2.83V /200~5KHz.
|
|
|
9
|
Polarity
|
Diaphragm shall move forward.
|
|
|
10
|
Load test
|
Must be normal after load test:white noise 48 hours.
|
|
|
11
|
High TEMP test
|
After having been in a test chamber for 48 hours at the condition of +60 ℃ 20~25%R.H and keep 2 hours.
|
|
|
12
|
Cold TEMP test
|
After having been in a test chamber for 48 hours at the condition of －25℃±3℃ and keep 2 hours.
|
|
|
13
|
Humidity test
|
After having been in a test chamber for 48 hours at the condition of +40 ℃ 90~95%R.H and keep 4 hours.
|
|
|
14
|
Drop test
|
The speak shall be dropped 2 times, clause 8 shall be satisfied.
|
|
|
15
|
Weld
|
terminal weld: 350℃/≤2~3sec*2bit.
|
|
|
16
|
Store temp
|
－25℃ To +65℃
|
|
Product Application
Smart speaker,Bluetooth speaker,Smart home application,Car audio system,Mini projector,Advertising players,Digital Photo Frame,Teaching Tablet etc.
Our Company
Shenzhen Xuanda Electronics Co., Ltd(XDEC) was founded in 2009 and is specializing in researching, designing, manufacturing of various speaker units and microphone units which are widely used for headphone, intercom, telephone, cordless phone, tablet-pc,notebook-pc, TV, navigator, headset, recorder, mini speaker, etc.
XDEC is located in Shenzhen, which is easy with air/sea transportation. XDEC has over 200 employees, and has become proven partner of many domestic and oversea customers by its strong researching and development capabilities, high quality and good service. In order to insure excellent quality and nice sound, XDEC always takes technical innovations as the driving force of sustainable development, and provides customers omnibearing design and engineering service from part development to final assembly.
XDEC has been adhering to business ideas of “Integrity, Quality, Innovation, Service”, strictly controlling every process of the production, stressing on R&D and quality control and introducing advance production equipments to meet customers’ demands.Sincerely we would like to cooperate with friends all over the world. XDEC will insist on top-quality and better service in order to create the rapid development together with all friends.
Packing & Delivery
Inner packing: EPE foam, Styrofoam or Blister packaging
Outer packing: Master carton
Transport
Delivery time: 15 days for normal orders, 10 days for urgent orders.
Delivery method: by express, by air or by sea.
FAQ
Q1. What is the MOQ?
XDEC: 3000pcs for one model.
Q2.Do you support OEM and ODM services?
XDEC: Yes, we can customize products according to the drawing.Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Q3. What are the payment methods?
XDEC: T/T, PayPal, Western Union, Money Gram.
Q4. What are the payment terms?
XDEC: 30% deposit in advance and 70% balance before delivery.
Q5. Can I get some free samples before mass production?
XDEC: Of course! We will be happy to send you free samples for your quality evaluation. You just need to bear shipping cost.
Q6. How long can I get the samples?
XDEC: Usually we make samples around 3-5 days, it also depends on your product and request.
XDEC: 3000pcs for one model.
Q2.Do you support OEM and ODM services?
XDEC: Yes, we can customize products according to the drawing.Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Q3. What are the payment methods?
XDEC: T/T, PayPal, Western Union, Money Gram.
Q4. What are the payment terms?
XDEC: 30% deposit in advance and 70% balance before delivery.
Q5. Can I get some free samples before mass production?
XDEC: Of course! We will be happy to send you free samples for your quality evaluation. You just need to bear shipping cost.
Q6. How long can I get the samples?
XDEC: Usually we make samples around 3-5 days, it also depends on your product and request.
