2030 5mm loud 8ohm 1w car camera speaker
-
$0.40≥3000 Piece/Pieces
- Min. Order:
- 3000 Piece/Pieces
- Min. Order:
- 3000 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Incoterm: | EXW |
|---|
Product Description
Product Description

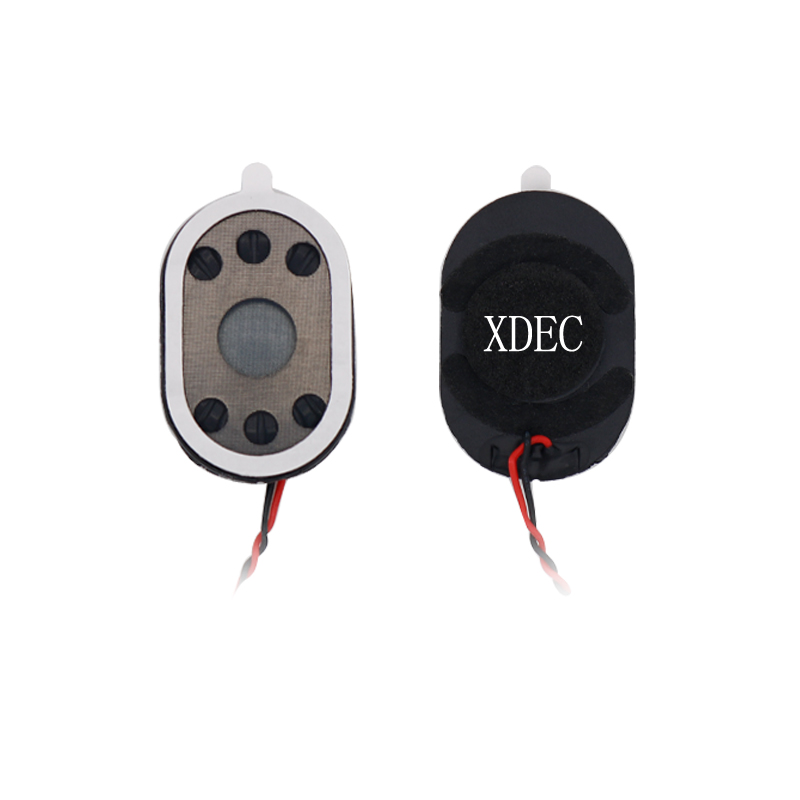

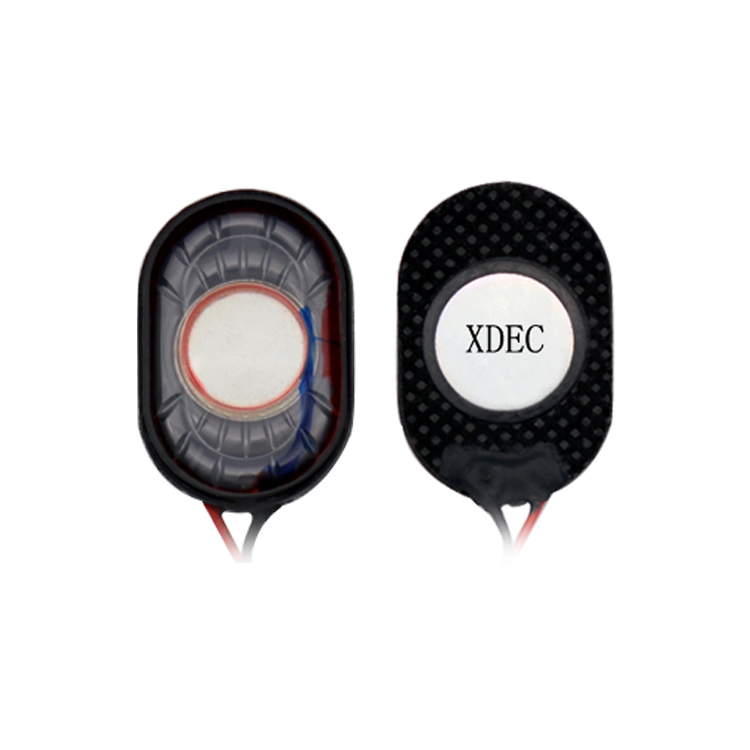

2030 5mm loud 8ohm 1w car camera speaker
The 2030 5mm loud 8ohm 1w car camera speaker is a high-quality mylar speaker designed specifically for use in car camera systems. With its small size and powerful sound output, this speaker is perfect for providing clear and crisp audio in a variety of driving conditions. The 8ohm 1w speaker ensures that the sound is loud enough to be heard over road noise, while the mylar construction ensures that the speaker is durable and long-lasting. Overall, the 2030 car camera speaker is a great choice for anyone looking for a reliable and high-quality speaker for their car camera system.
Product Specification
|
NO.
|
Item
|
Specification
|
Condition
|
|
1
|
Dimensions
|
2030**5H mm
|
|
|
2
|
Nomial Impedance
|
8±15% OHM
|
At 1.0KHz / 2.0V
|
|
3
|
Input power
|
Rated：1W/ Max：2W
|
At 6.32V /6.93V
|
|
4
|
Resonance Frequency
|
650±20%Hz
|
At 2.0V
|
|
5
|
S．P．L．
|
92±3 dB(0.1W/0.1M)
|
At0.6K/0.8K/1.0K/1.2KHz(Average)
|
|
6
|
Frepuency Range
|
F0~20K
|
Output S.P.L. -10dB
|
|
7
|
Distortion
|
5%Max
|
At 1.0KHz 1W/1M
|
|
8
|
Buzze & Rattle
|
Not be audible sine wave between at 6.32V /130~5KHz.
|
|
|
9
|
Polarity
|
Diaphragm shall move forward.
|
|
|
10
|
Load test
|
Must be normal after load test:white noise 48 hours.
|
|
|
11
|
High TEMP test
|
After having been in a test chamber for 48 hours at the condition of
+60 ℃ 20~25% R.H and keep 2 hours.
|
|
|
12
|
Cold TEMP test
|
After having been in a test chamber for 48 hours at the condition of
－25℃ ±3℃ and keep 2 hours.
|
|
|
13
|
Humidity test
|
After having been in a test chamber for 48 hours at the condition of
+40 ℃ 90~95%R.H and keep 4 hours.
|
|
|
14
|
Drop test
|
The speaker shall be dropped 2 times, clause 8 shall be satisfied.
|
|
|
15
|
Weld
|
terminal weld: 350℃/≤2~3sec*2bit.
|
|
|
16
|
Store temp
|
－25℃ To +60℃
|
|
Product Application
Mini stereo,LED advertising machine，Smart projector，Early education machine，Headphone，Interphone，Cordless phone,Notebook,Portable DVD,TV,GPS Navigation,Building Security,Incar Multimedia System,Mini audio,etc
Our Company
Shenzhen Xuanda Electronics Co., Ltd(XDEC) was founded in 2009 and is specializing in researching, designing, manufacturing of various speaker units and microphone units which are widely used for headphone, intercom, telephone, cordless phone,tablet-pc,notebook-pc, TV, navigator, headset, recorder, mini speaker, etc.
XDEC is located in Shenzhen, which is easy with air/sea transportation. XDEC has over 200 employees, and has become proven partner of many domestic and oversea customers by its strong researching and development capabilities, high quality and good service. In order to insure excellent quality and nice sound, XDEC always takes technical innovations as the driving force of sustainable development, and provides customers omnibearing design and engineering service from part development to final assembly.
XDEC has been adhering to business ideas of “Integrity, Quality, Innovation, Service”, strictly controlling every process of the production, stressing on R&D and quality control and introducing advance production equipments to meet customers’
demands.Sincerely we would like to cooperate with friends all over the world. XDEC will insist on top-quality and better servicein order to create the rapid development together with all friends.
XDEC is located in Shenzhen, which is easy with air/sea transportation. XDEC has over 200 employees, and has become proven partner of many domestic and oversea customers by its strong researching and development capabilities, high quality and good service. In order to insure excellent quality and nice sound, XDEC always takes technical innovations as the driving force of sustainable development, and provides customers omnibearing design and engineering service from part development to final assembly.
XDEC has been adhering to business ideas of “Integrity, Quality, Innovation, Service”, strictly controlling every process of the production, stressing on R&D and quality control and introducing advance production equipments to meet customers’
demands.Sincerely we would like to cooperate with friends all over the world. XDEC will insist on top-quality and better servicein order to create the rapid development together with all friends.
