1.57 inch 40*23.7Hmm 4Ohm 5W speaker for stereo

1.57 inch 40*23.7Hmm 4Ohm 5W speaker for stereo

$1.05

3000-4999 Piece/Pieces
$0.76

5000-9999 Piece/Pieces
$0.63

≥10000 Piece/Pieces

Transportation:: Ocean, Land, Express, Air

Port:: Yantian, Shenzhen, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong Province, China
Productivity:	200000 Pieces per Month
Supply Ability:	200000 Pieces per Month
Payment Type:	T/T,Paypal
Incoterm:	EXW,FOB,Express Delivery
Certificate:	ISO14001/ISO9001/RoHS
Transportation:	Ocean,Land,Express,Air
Port:	Yantian,Shenzhen,China

Product Description

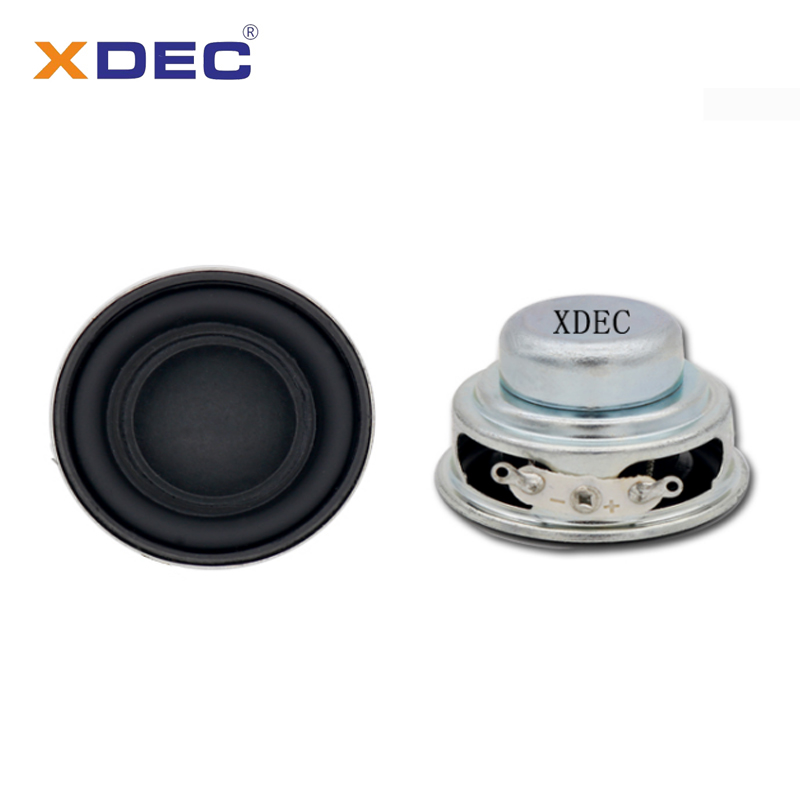

1.57 inch 40*23.7Hmm 4Ohm 5W speaker for stereo

1.5" Speaker 40 mm Speaker, Portable Waterproof Speaker, made of ,XDEC speaker made it from our experience and project,and start promote it on the market then gain big success, win clients's truth and support. 40 mm 4 ohm 5 W loudspeaker at 0.1 m 0.1 W test conditions loudness around 78 dB.

Product Specification

NO.	Item	Specification	Condition
1	Dimensions	40*23.7H mm
2	Nomial Impedance	4±15% OHM	DCR:3.6±15%Ω
3	Input power	Rated：5W/ Max：6W	At4.47V /4.89V
4	Resonance Frequency	155±20%Hz	At 1.41V
5	Frepuency Range	F0~18KHz	Output S.P.L. -10dB
6	Sound Pressure Level	78±3 dB(0.5W/0.5M)	At1.0K/1.2K/1.5K/1.8KHz (Average)
7	Distortion	5%Max	At 1.0KHz 0.1W/0.1M
8	Buzze & Rattle	Not be audible sine wave between at4.47V /FO~5KHz.
9	Polarity	Diaphragm shall move forward.
10	Load test	Must be normal after load test:white noise 24 hours.
11	High TEMP test	After having been in a test chamber for 48 hours at the condition of +60 ℃ 20~25%R.H and keep 2 hours.
12	Cold TEMP test	After having been in a test chamber for 48 hours at the condition of －25℃±3℃ and keep 2 hours.
13	Humidity test	After having been in a test chamber for 48 hours at the condition of +40 ℃ 90~95%R.H and keep 4 hours.
14	Weld	terminal weld: 350℃/≤2~3sec*2bit.
15	Operating TEMP	-25℃ To +60℃
