3cm 8ohm 1w waterproof speaker
-
$0.323000-9999 Piece/Pieces
-
$0.3110000-99999 Piece/Pieces
-
$0.29≥100000 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen Guangdong China |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | Yantian |
Waterproof 3cm 8Ohm 1watt mylar speaker driver
As you can see this decorative pattern diaphragm mylar speaker specification is 36mm diamter,8ohm,1watt rated power,1.25watt max power,total thickness only 6mm, very thin,is a ultra thin mylar speaker driver which mean this speaker can work in such 8ohm impedance, 1watt rated power and can produce a nice full range sound. people love to use this speaker in mini projector speaker,projector speaker. Also can use in blood pressure monitor,reading pen,walkie-talkie,doorbell,building security and so on.It's a good choices to use this waterproof mylar speaker for outdoor sound products.
Product Specification
|
NO.
|
Item
|
Specification
|
Condition
|
|
1
|
Dimensions
|
30*5.3H mm
|
|
|
2
|
Nomial Impedance
|
8±20% OHM
|
DCR 8.0± 15%Ω
|
|
3
|
Input power
|
Rated：1.0W/ Max：1.25W
|
At 2.83V /3.16V
|
|
4
|
Resonance Frequency
|
550±20%Hz
|
At0.89V
|
|
5
|
S．P．L．
|
95±3 dB(0.1W/0.1M)
|
At F0-20KHz (Average)
|
|
6
|

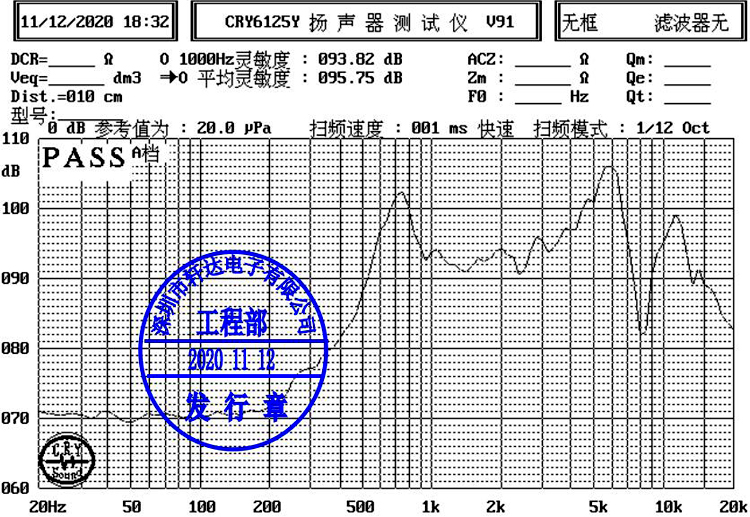

Frepuency Range
|
F0~6K
|
Output S.P.L. -10dB
|
|
7
|
Distortion
|
5%Max
|
At 1.0KHz 0.1W/0.1M
|
|
8
|
Buzze & Rattle
|
Not be audible sine wave between at 2.83V /F0~5KHz.
|
|
|
9
|
Polarity
|
Diaphragm shall move forward.
|
|
|
10
|
Load test
|
Must be normal after load test:white noise 24 hours.
|
|
|
11
|
High TEMP test
|
After having been in a test chamber for 48 hours at the condition of
+60 ℃ 20~25% R.H and keep 2 hours.
|
|
|
12
|
Cold TEMP test
|
After having been in a test chamber for 48 hours at the condition of
－25℃ ±3℃ and keep 2 hours.
|
|
|
13
|
Humidity test
|
After having been in a test chamber for 48 hours at the condition of
+40 ℃ 90~95%R.H and keep 4 hours.
|
|
|
14
|
Drop test
|
The speaker shall be dropped 2 times, clause 8 shall be satisfied.
|
|
|
15
|
Weld
|
terminal weld: 350℃/≤2~3sec*2bit.
|
|
|
16
|
Store temp
|
－25℃ To +60℃
|
|
Intercom,Reading pen,Building security,Car voice player,Voip phone,Medical product,Robot,etc
Shenzhen Xuanda Electronics Co., Ltd(XDEC) was founded in 2009 and is specializing in researching, designing, manufacturing of various speaker units and microphone units ,such as mylar speaker driver,multimedia speaker driver,headphone speaker driver,soundbox speaker driver and son on,which are widely used for headphone, intercom, telephone, cordless phone,tablet-pc,notebook-pc, TV, navigator, headset, recorder, mini speaker, etc.

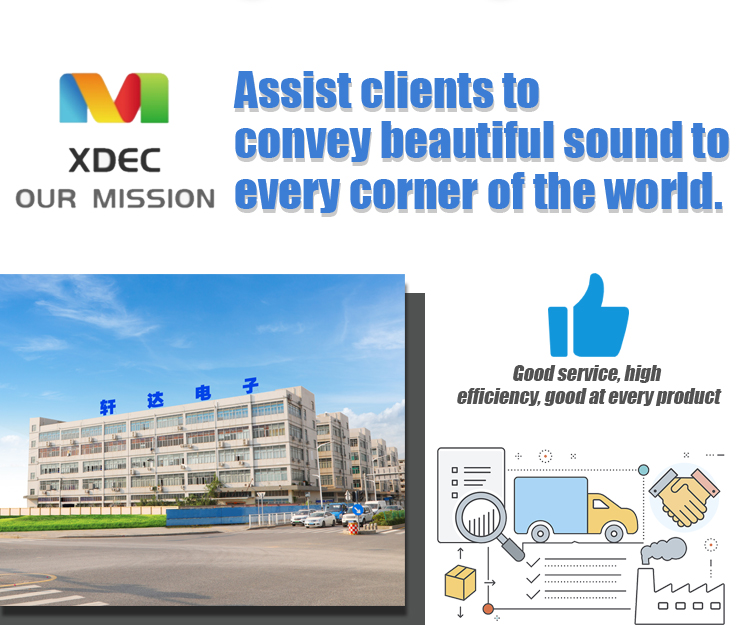

XDEC is located in Shenzhen, which is easy with air/sea transportation. XDEC has over 200 employees, and has become proven partner of many domestic and oversea customers by its strong researching and development capabilities, high quality and good service. In order to insure excellent quality and nice sound, XDEC always takes technical innovations as the driving force of sustainable development, and provides customers omnibearing design and engineering service from part development to final assembly.
XDEC has been adhering to business ideas of “Integrity, Quality, Innovation, Service”, strictly controlling every process of the production, stressing on R&D and quality control and introducing advance production equipments to meet customers' demands.Sincerely we would like to cooperate with friends all over the world. XDEC will insist on top-quality and better servicein order to create the rapid development together with all friends.

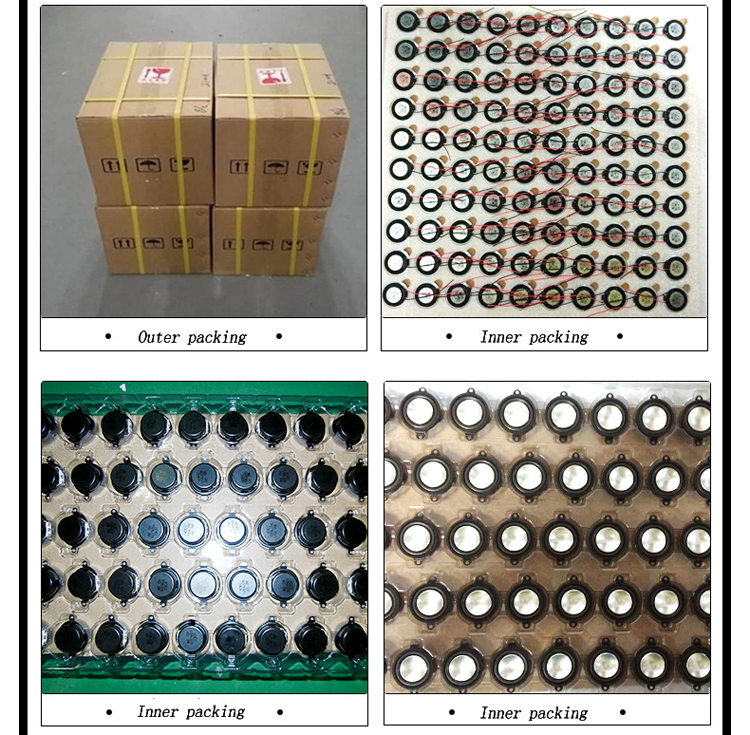

Inner packing: EPE foam, Styrofoam or Blister packaging
Outer packing: Master carton
Delivery time: 15 days for normal orders, 10 days for urgent orders.
Delivery method: by express, by air or by sea.
XDEC: 3000pcs for one model.
Q2.Do you support OEM and ODM services?
XDEC: Yes, we can customize products according to the drawing.Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Q3. What is the delivery time?
XDEC: 15 days for normal orders, 10 days for urgent orders.
Q4. What are the payment methods?
XDEC: T/T, PayPal, Western Union, Money Gram.
Q5. What are the payment terms?
XDEC: 30% deposit in advance and 70% balance before delivery.
Q6. Can I get some free samples before mass production?
XDEC: Of course! We will be happy to send you free samples for your quality evaluation. You just need to bear shipping cost.
Q7. How long can I get the samples?
XDEC: Usually we make samples around 3-5 days, it also depends on your product and request.
