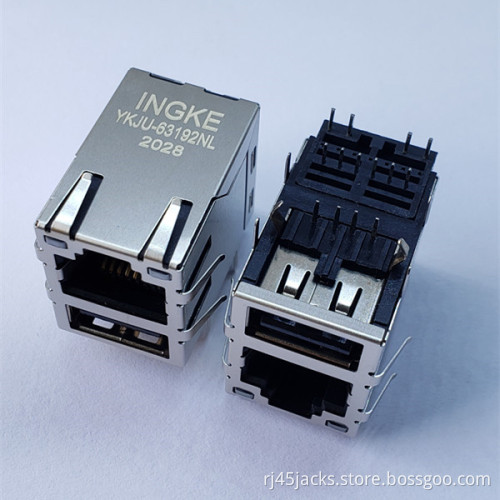

INGKE YKJU-63192NL Direct Substitute 43F-1201DYD2NL 1 Port 100 Base-T RJ45 with USB Modular Jacks Magnetics Through Hole

INGKE YKJU-63192NL Direct Substitute 43F-1201DYD2NL 1 Port 100 Base-T RJ45 with USB Modular Jacks Magnetics Through Hole

Part Number:43F-1201DYD2NL

Made in China:YKJU-63192NL

Original Manufacturer:Ingke Technology

Supply Ability:5500K-PCS/Month

Product Category:Modular Connectors / Ethernet Connectors

Packaging:Tray

Connector Type:RJ45 with USB A

Number of Ports:1

Number of Rows:1

Applications:10/100 Base-T, AutoMDIX

Mounting Type:Through Hole

Orientation:90° Angle (Right)

Termination:Solder

LED Color:Green, Orange - Yellow

Number of Cores per Jack:4

Shielding:Shielded, EMI Finger

Features:Board Lock

Tab Direction:Up

Contact Material:Copper Ally

Contact Finish:Gold

Operating Temperature:-40℃~85℃

Contact Finish Thickness:30µin (0.76µm)

Flammability Rating:UL 94 V-0

Shield Material:Copper Ally

Housing Material:Thermoplastic



Manufacturer: Ingke Technology Co.,Ltd

Our service:

1).Free sample is available!

2).OEM & ODM orders are welcomed.

3).We offer after-sale service for 8 years.

Our Advantage:

(1).OEM factory for Connector more than 10 years.

(2).Cost reduction, lead time within 1 week, FREE samples.

(3).After sales services 24*7 to help you solve any kind of problems

(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market

(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)

Ingke Technology Mass production of the following models;

13F-69GYDNW2NL 13F-69GYD2NL 13F-62AGYD2NL 13F-67CGYDS2NL 13F-64AGGD2NL 13F-64ND2NL 13F-64NW2NL 13F-64GGD2NL 13F-64AND2NL 13F-64GYD2NL 13F-64GYDNW2NL 13F-69ND2NL 13F-61ND2NL 13F-60END2NL 13F-60CND2NL 13F-62ANW2NL 13F-62ADGD2NL 13F-62AND2NL 13F-61FND2NL 13F-66YGDNW2NL 13F-62AGGD2NL 13F-62CGYD2NL 13F-60VGYD2NL 13F-67BYGDD2NL
