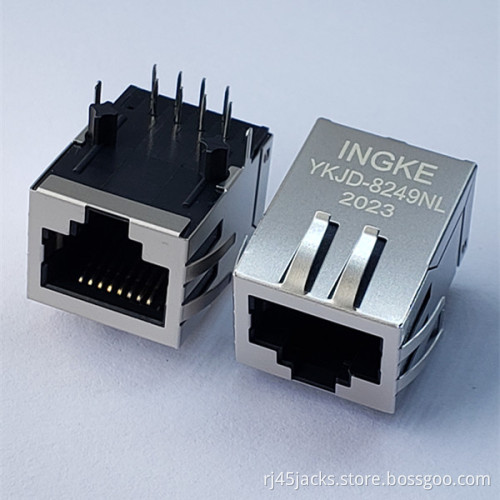

INGKE YKJD-8249NL Direct Substitute J00-0061NL Through Hole 100 Base-T 1 Port Magnetic RJ45 Connectors

INGKE YKJD-8249NL Direct Substitute J00-0061NL Through Hole 100 Base-T 1 Port Magnetic RJ45 Connectors


Part Number:J00-0061NL

Made in China:YKJD-8249NL

Original Manufacturer:Ingke Technology

Supply Ability:5500K-PCS/Month

Product Category:Modular Connectors / Ethernet Connectors

Packaging:Tray

Connector Type:RJ45

Number of Ports:1

Number of Rows:1

Applications:10/100 Base-TX，AutoMDIX

Mounting Type:Through Hole

Orientation:90° Angle (Right)

Termination:Solder

LED Color:Does Not Contain LED

Number of Cores per Jack:4

Shielding:Shielded, EMI Finger

Features:Board Guide

Tab Direction:Down

Contact Material:Phosphor Bronze

Contact Finish:Gold

Operating Temperature:-40℃~85℃

Contact Finish Thickness:30µin (0.76µm)

Flammability Rating:UL 94 V-0

Shield Material:Copper Ally

Housing Material:Thermoplastic



Manufacturer: Ingke Technology Co.,Ltd

Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.

Our Advantage:
 (1).OEM factory for Connector more than 10 years.
(2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)


INGKE Technology Mass production of the following models;

J0B-3563NL JTL-U1001NL JXD6-0002NL JXD4-1002NL JXD0-0010NL JK0-2500NL JKM-0010NL JXD0-0002NL J0006D21NL JXD1-0001NL JKM-0011NL JXD3-0001NL JV006I21NL JV006I21NLT J1006F21NL JXD1-0002NL J0C-0005NL J0C-0006NL J0C-0006NLT JKM-0009NL JKM-0008NL JXD3-0002NL J0011D11NL J0012D21NL J1006F01PNL JKM-0001NL JX0011D21NL JV026I21NLT J1026F01NL JXD0-0012NL JXD0-0029NL JK0-0229NL JXD0-0025NL JXD2-0011NL JXD0-0002NL JXD3-0001NL JXD3-0002NL JXR0-0005NL JXC0-0351NL
