J1011F21PNL 1 Port Through Hole 100 Base-T Magnetic Modular RJ45 Jacks

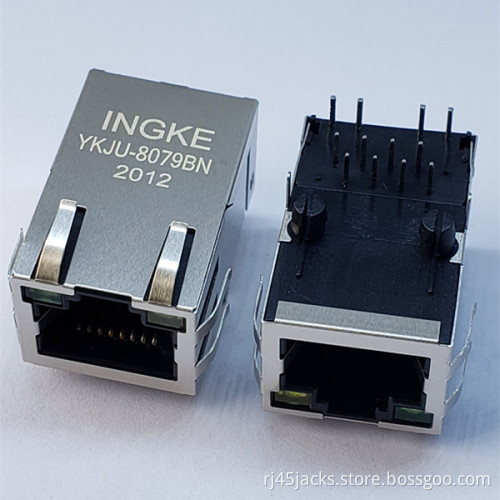

INGKE YKJU-8079BN Direct Substitute J1011F21PNL 1 Port Through Hole 100 Base-T Magnetic Modular RJ45 Jacks

Part Number:J1011F21PNL
Made in China:YKJU-8079BN
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category:Modular Connectors / Ethernet Connectors
Packaging:Tray
Connector Type:RJ45
Number of Ports:1
Number of Rows:1
Applications:10/100 Base-TX, AutoMDIX
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
LED Color:Green - Yellow
Number of Cores per Jack:4
Shielding:Shielded, EMI Finger
Features:Board Guide
Tab Direction:Up
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:-40℃~85℃
Flammability Rating:UL 94 V-0
Contact Finish Thickness:15µin (0.38µm)
Shield Material:Copper Alloy
Housing Material:Thermoplastic

Manufacturer: Ingke Technology Co.,Ltd

Our service:
(1).Free sample is available!
(2).OEM & ODM orders are welcomed.
(3).We offer after-sale service for 8 years.

Our Advantage:
(1).OEM factory for Connector more than 10 years.
(2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)

Ingke Technology Mass production of the following models;

J0C-0004NL J0C-0004NLT JXD3-0004NL JXD1-0005NL JXD3-0004NL JXD1-0005NL JXD2-0011NL JXD3-0003NL JXD0-0001NL JKM-0010NL JXD0-0002NL J0006D21NL JXD1-0001NL JKM-0011NL JXD3-0001NL JV006I21NL JV006I21NLT J1006F21NL JXD1-0002NL J0C-0005NL J0C-0006NL J0C-0006NLT JKM-0009NL JKM-0008NL JXD3-0002NL J0011D11NL J0012D21NL J1006F01PNL JKM-0001NL JX0011D21NL JV026I21NLT J1026F01NL JG0-0098NL JG0-0026NL JG0-0027NL JXR0-0001NL J00-0065NL J0G-0007NL JV011I21NLT J0026D01BNL JD2-0010NL J00-0062NL JXD2-0010NL J00-0066NL
