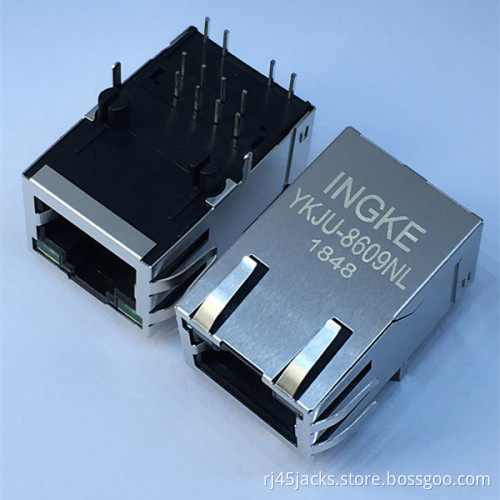

J1012F21KNL YKJU-8609NL 1 Port Through Hole 100 Base-TX Ethernet 8P8C Connector RJ45

Ingke YKJU-8609NL 100% Cross J1012F21KNL 1 Port Through Hole 100 Base-TX Ethernet 8P8C Connector RJ45

Part Number:J1012F21KNL
Made in China:YKJU-8609NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category: Modular Connectors / Ethernet Connectors
Packaging :Tray
Connector Type: RJ45
Number of Ports:1
Number of Rows:1
Applications:10/100 Base-TX, AutoMDIX
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
LED Color:Green - Green
Number of Cores per Jack:4
Shielding:Shielded, EMI Finger
Features:Board Guide
Tab Direction:Up
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:-40℃~85℃
Flammability Rating:UL 94 V-0
Contact Finish Thickness:30µin (0.76µm)
Shield Material:Copper Alloy
Housing Material:Thermoplastic

Manufacturer: Ingke Technology Co.,Ltd
Our service:

 1).Free sample is available!
 2).OEM & ODM orders are welcomed.
 3).We offer after-sale service for 8 years.
Our Advantage:
 (1).OEM factory for Connector more than 10 years.
 (2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)
