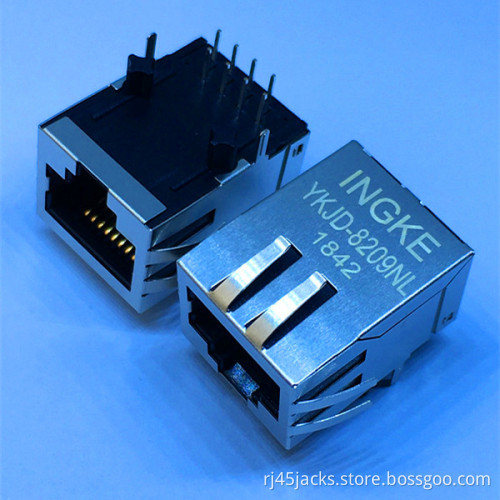

Bel SI-60002-F YKJD-8209NL Through Hole 1 Port 100 Base-T RJ45 Network Connectors

Ingke YKJD-8209NL 100% Cross Bel SI-60002-F Through Hole 1 Port 100 Base-T RJ45 Network Connectors

Part Number : SI-60002-F
Made in China:YKJD-8209NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category: Modular Connectors / Ethernet Connectors
Packaging :Tray
Connector Type: RJ45
Number of Ports :1
Number of Rows :1
Applications : 10/100 Base-T, AutoMDIX
Mounting Type : Panel Mount, Through Hole
Orientation:  90° Angle (Right)
Termination :Solder
LED Color: Does Not Contain LED
Number of Cores per Jack : 4
Shielding : Shielded, EMI Finger
Features:  Board Guide
Tab Direction : Down
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40℃~85℃
Contact Finish Thickness : 30µin (0.76µm)
Flammability Rating: UL 94 V-0
Shield Material : Copper Ally
Housing Material :Thermoplastic

Ingke Technology Mass production of the following models;

0817-1X1T-21-F 08B0-1C1T-06-F SI-26001-F SI-30039-F SI-30113-F SI-30135-F SI-46008-F SI-46009-F SI-46012-F SI-46017-F SI-46019-F SI-50065-F SI-50076-F SI-50089-F SI-50096-F 08B0-1B1T-36-F 08B0-1G1T-36-F 08B0-1XX1-03-F 08B0-1D1T-03-F 08B0-1X1T-01-F 0826-1AX1-47-F C893-1DX1-E5
