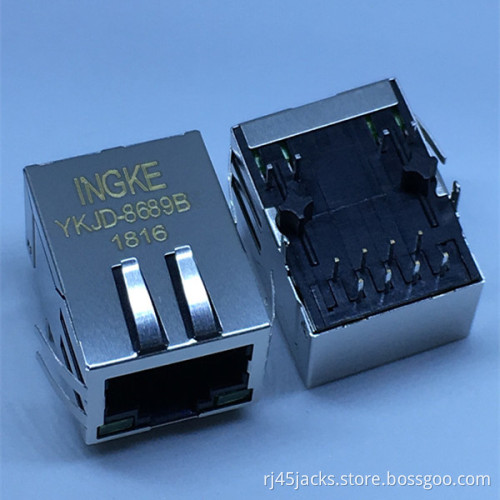

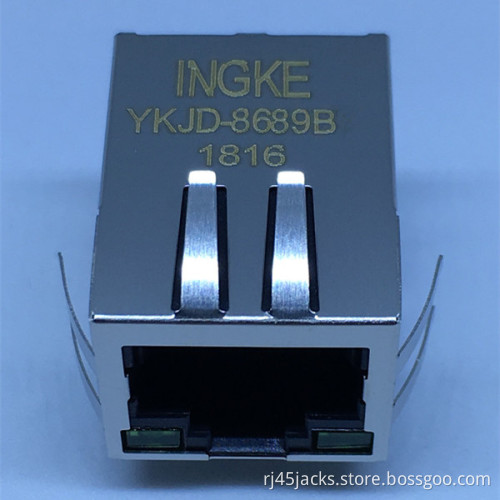

Ingke YKJD-8689B 100% cross 7499011222A Through Hole RJ45 Jacks With Magnetics

Ingke YKJD-8689B 100% cross 7499011222A Through Hole RJ45 Jacks With Magnetics


Part Number : 7499011222A

Made in China:YKJD-8689B

Original Manufacturer:Ingke Technology

Supply Ability:5500K-PCS/Month

Product Category: Modular Connectors - Jacks With Magnetics

Packaging :Tray

Connector Type: RJ45

Number of Ports :1

Number of Rows :1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation:  90° Angle (Right)

Termination :Solder

LED Color: Green - Green

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features:  Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material :Thermoplastic

Ingke Technology Mass production of the following models;
74980111211 74980111211 7499010122 7498011122 7499111121A 7498011122R 7498011122R 74990111215 7499211121A 7499210121A 7499211125 7498111001 7498111001 7498111001

7499111446 7499111221A 7499111447 7499151120 7497110616 7499010121A
