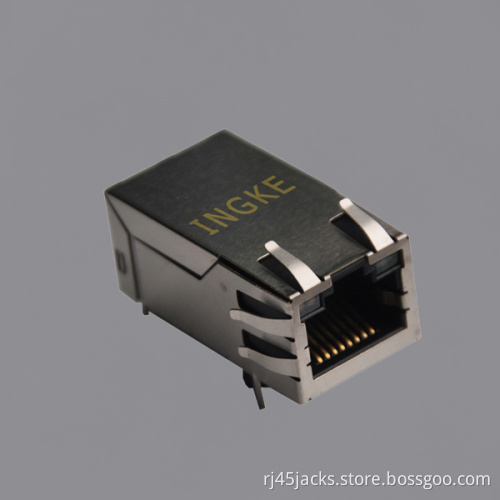

Ingke YKKU-8069NL 100% cross 0826-1A1T-23-F Single Port RJ45 Magnetic Modular Jacks

Ingke YKKU-8069NL 100% cross 0826-1A1T-23-F Single Port RJ45 Magnetic Modular Jacks

Part Number : 0826-1A1T-23-F
Made in China: YKKU-8069NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category: Modular Connectors / Ethernet Connectors
Packaging :Tray
Connector Type: RJ45
Number of Ports :1
Number of Rows :1
Applications : 10/100/1000 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation:  90° Angle (Right)
Termination :Solder
LED Color: Green, Orange - Yellow
Number of Cores per Jack : 8
Shielding : Shielded, EMI Finger
Features:  Board Guide
Tab Direction : Up
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40℃~85℃
Flammability Rating: UL 94 V-0
Contact Finish Thickness : 30µin (0.76µm)
Shield Material : Copper Alloy
Housing Material :Thermoplastic


Manufacturer: Ingke Technology Co.,Ltd
Our service:
 1).Free sample is available!
 2).OEM & ODM orders are welcomed.
 3).We offer after-sale service for 8 years.
Our Advantage:
 (1).OEM factory for Connector more than 10 years.
 (2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)

Ingke Technology Mass production of the following models;

0879-2C4R-54 0826-1C1T-43-F L8BE-1G1T-91A  L834-1G1T-91 L8BE-1G1T-BFH 0826-1X1T-KH-F 0826-1X1T-HS-F G15-111T-076C G15-111T-038E 0838-1X1T-W6 0833-2X4R-54-F 0826-1X1T-80-F 0863-2X6R-54-F 08B1-1X1T-06-F 0826-1L1T-57-F 0816-1X1T-23-F 0862-1J1T-43-F 0813-1X1T-23-F S811-1X1T-03-F S811-1X1T-03-F S811-1X1T-03-F 08B1-1X1T-03-F 0826-1G1T-23-F 0826-1X1T-23-F 0826-1C1T-23-F L826-1X1T-23-F 0826-1X1T-GH-F 0875-1G2T-E3 0826-1X2T-23-F 08B0-1X4T-36-F 0879-2C1R-54 0826-1X4T-23-F 0810-2H4R-28-F L826-1X4T-43-F L826-1X4T-23-F 0879-2C2R-54 0826-1G1T-43-F G10-1GHT-035 0826-1X4T-43-F S811-1X1T-36-F S811-1X1T-36-F S811-1X1T-36-F S811-1X1T-A4-F S811-1X1T-A4-F S811-1X1T-A4-F L829-1B1T-43 L829-1J1T-D2 S811-1X1T-06-F S811-1X1T-06-F S811-1X1T-06-F 08B1-1X1T-36-F 08B0-1D1T-06-F 08B0-1G1T-06-F 08B0-1X1T-06-F
