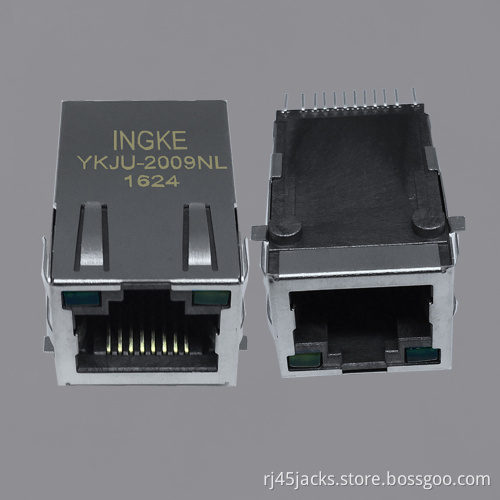

Ingke YKJU-2009NL 100% cross J3011G21DNL 10/100 Base-T SMT RJ45 Magnetic Jack Connector

Ingke YKJU-2009NL 100% cross J3011G21DNL 10/100 Base-T SMT RJ45 Magnetic Jack Connector

Part Number : J3011G21DNL

Made in China:YKJU-2009NL

Original Manufacturer:Ingke Technology

Supply Ability:5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging :Tape & Reel (TR)

Connector Type: RJ45

Number of Ports :1

Number of Rows :1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Surface Mount

Orientation:  90° Angle (Right)

Termination :Solder

LED Color: Green-Yellow

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features:  Board Guide, Solder Retention

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material :Thermoplastic

Manufacturer: Ingke Technology Co.,Ltd
Our service:
 1).Free sample is available!
 2).OEM & ODM orders are welcomed.
 3).We offer after-sale service for 8 years.
Our Advantage:
 (1).OEM factory for Connector more than 10 years.
 (2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)

Ingke Technology Mass production of the following models;

JXD3-0003NL JXD0-0001NL JKM-0010NL JXD0-0002NL J0006D21NL JXD1-0001NL JKM-0011NL JXD3-0001NL JV006I21NL JV006I21NLT J1006F21NL JXD1-0002NL J0C-0005NL J0C-0006NL J0C-0006NLT JKM-0009NL JKM-0008NL JXD3-0002NL J0011D11NL J0012D21NL J1006F01PNL JKM-0001NL JX0011D21NL JV026I21NLT J1026F01NL J0018D21NL J1012F21RNL JXKM-0013NL J1026F01QNL J0026D21FNL
