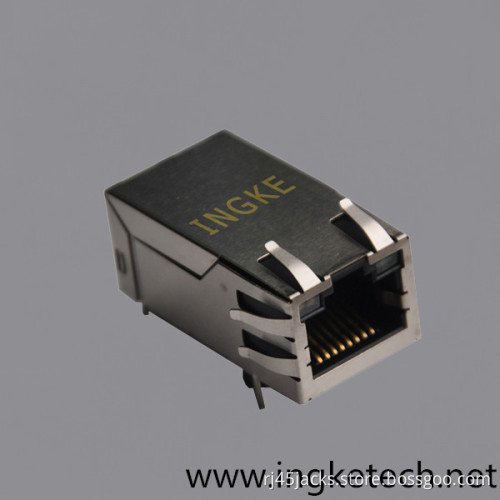

SI-50170-F Single Port RJ45 Magnetic Jack

Ingke YKJU-8049NL 100% cross SI-50170-F Single Port RJ45 Magnetic Jack

Part Number : SI-50170-F
Made in China:YKJU-8049NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category: Modular Connectors / Ethernet Connectors
Packaging :Tray
Connector Type: RJ45
Number of Ports :1
Number of Rows :1
Applications : 10/100 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation:  90° Angle (Right)
Termination :Solder
LED Color: Green - Green
Number of Cores per Jack : 4
Shielding : Shielded, EMI Finger
Features:  Board Guide
Tab Direction : Up
Contact Material : Phosphor Bronze
Contact Finish : Gold
Operating Temperature : -40℃~85℃
Flammability Rating: UL 94 V-0
Contact Finish Thickness : 15µin (0.38µm)
Shield Material : Copper Alloy
Housing Material : Thermoplastic

Manufacturer: Ingke Technology Co.,Ltd
INGKE can provide 3D model for engineers' design
Our service:
 1).Free sample is available!
 2).OEM & ODM orders are welcomed.
 3).We offer after-sale service for 8 years.
Our Advantage:
 1).High-quality,OEM factory for RJ45 Connector more than 10 years.
 2).Cost reduction, lead time within 1 week, FREE samples.
3) .After sales services 24*7 to help you solve any kind of problems

Ingke Technology Mass production of the following models;

SI-60002-F SI-60001-F SI-60062-F SI-60024-F SI-60118-F SI-61001-F SI-60182-F SI-60136-F SI-60128-F SI-60110-F SI-60159-F SI-60005-F SI-60022-F SI-60158-F SI-60217-F SI-60014-F SI-60015-F SI-60076-F SI-60123-F SI-61031-F  60063-F SI-60135-F SI-60069-F SI-60105-F SI-60091-F SI-60115-F SI-60190-F SI-60060-F SI-60082-F SI-60124-F SI-60006-F SI-60019-F SI-60029-F SI-60065-F SI-60066-F
