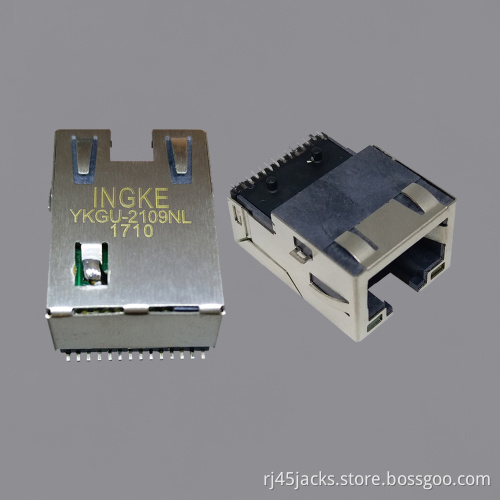

Ingke YKGU-2109NL 100% compatible 7498111120R WE SMT RJ45 Jacks with Integrated Magnetics

Ingke YKGU-2109NL 100% compatible 7498111120R WE SMT RJ45 Jacks with Integrated Magnetics



WE Part Number : 7498111120R

Made in China:YKGU-2109NL

Original Manufacturer:Ingke Technology

Supply Ability:5500K-PCS/Month

Packaging :Tray

Connector Type: RJ45

Number of Ports :1

Number of Rows :1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Board Edge, Cutout; Surface Mount

Orientation:  90° Angle (Right)

Termination :Solder

Height Above Board: 0.350" (8.89mm)

LED Color:Yellow - Green

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features:  Board Guide, Solder Retention

Tab Direction : Up

Contact Material : Tin

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 15µin (0.38µm)

Shield Material : Copper Alloy

Housing Material :Thermoplastic

Ingke Technology Mass production of the following models;

7499011002 7499211123 7499611421 7499311611 7499010003A 74990101212 7498210220A 7497011611A
7498210002 7498210002 7498210002 7499211122A 7499121211 7499210124A 7499111000A 7499051002
7499410420 7497111611A 7499511610 7498011001A 7499010004A 7498011008 7499211002A 74990101241
7499010126A 7499410221 7499021002A 7498210003 7499210123A 7499110123 74990110030 74990111211
7499031001A 7498011002 7499011002A 7499111613 7497010211A 74990110013 7499210001A 7499021121
7499111614A 7499111005 7499511001A 7499011122A 7499211123A 7499031120A 7498011121 7499031211
7499211003 7499411001 7499111614 7499311001 7499511001 7499511611 74990110010
