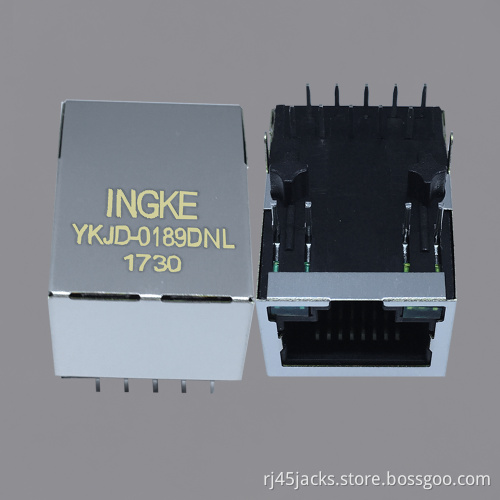

Ingke YKJD-0189DNL 100% compatible 7499210121A WE RJ45 Magjack Connectors

Ingke YKJD-0189DNL 100% compatible 7499210121A WE RJ45 Magjack Connectors

WE Part Number : 7499210121A

Made in China:YKGU-2109NL

Original Manufacturer:Ingke Technology

Supply Ability:5500K-PCS/Month

Part Status :Active

Connector Type: RJ45

Number of Ports :1

Number of Rows :1

Applications : 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)

Mounting Type : Through Hole

Orientation:  90° Angle (Right)

Termination :Solder

Height Above Board: 0.549" (13.95mm)

LED Color:Yellow - Green

Number of Cores per Jack : 6

Shielding : Shielded

Features:  Board Guide

Tab Direction : Down

Contact Material : Tin

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 15µin (0.38µm)

Shield Material : Copper Alloy

Housing Material :Thermoplastic

Ingke Technology Mass production of the following models;

74980111211 74980111211 74980111211 7499010122 7498011122 7499111121A 7498011122R 7498011122R
7498011122R 74990111215 7499211121A 7499210121A 7499211125 7498111001 7498111001 7498111001
7499111446 7499111221A 7499111447 7499151120 7497110616 7499010121A 7499011121A 74990100011A
7499011222A 7499010211A 74990111217 7499010441 74990112116A 7499410213 7499111001A 7498111120R
7498111120R 7498111120R 74991101227498011211 7499021125 7499110124 7499411122 7499511440
7499210123 7499511611A 7499011001A 7499010001A 7499011002 7499211123 7499611421 7499311611
7499010003A 74990101212 7498210220A 7497011611A
