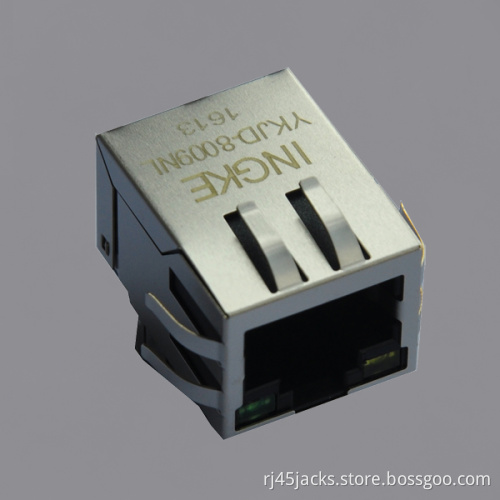

Ingke YKJD-8009NL 100% cross J0011D21BNL Pulse RJ45 Modular Jack Connectors

Ingke YKJD-8009NL 100% cross J0011D21BNL Pulse RJ45 Modular Jack Connectors



Pulse Part Number : J0011D21BNL

Made in China:YKJD-8009NL

Original Manufacturer:Ingke Technology

Packaging :Tray

Part Status :Active

Connector Type: RJ45

Number of Ports :1

Number of Rows :1

Applications : 10/100 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation:  90° Angle (Right)

Termination :Solder

Height Above Board: 0.536" (13.61mm)

LED Color: Green - Yellow

Number of Cores per Jack : 4

Shielding : Shielded, EMI Finger

Features:  Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 15µin (0.38µm)

Shield Material : Copper Alloy

Housing Material :Thermoplastic


Manufacturer: Ingke Technology Co.,Ltd
INGKE can provide 3D model for engineers' design
Our service:
 1).Free sample is available!
 2).OEM & ODM orders are welcomed.
 3).We offer after-sale service for 8 years.
Our Advantage:
 1).High-quality,OEM factory for RJ45 Connector more than 10 years.
 2).Cost reduction, lead time within 1 week, FREE samples.

3).After sales services 24*7 to help you solve any kind of problems
