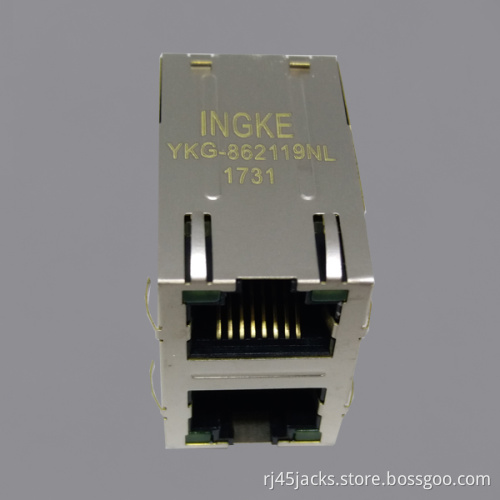

Ingke YKG-862119NL 100% Compatible 1840855-1 TE Industrial RJ45 connector jacks

Ingke YKG-862119NL 100% Compatible 1840855-1 TE Industrial RJ45 connector jacks


TE Part Number : 1840855-1

Made in China: YKG-862119NL

Original Manufacturer:Ingke Technology

Supply Ability:5500K-PCS/Month

Packaging :Tray

Connector Type: RJ45

Number of Ports :2

Number of Rows :2

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation:  90° Angle (Right)

Termination :Solder

Height Above Board: 0.992" (25.19mm)

LED Color: Green-Green

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features:  Board Lock

Tab Direction : Up and Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material :Thermoplastic

Manufacturer: Ingke Technology Co.,Ltd

INGKE can provide 3D model for engineers' design
Our service:
 1).Free sample is available!
 2).OEM & ODM orders are welcomed.
 3).We offer after-sale service for 8 years.
Our Advantage:
 1).High-quality,OEM factory for RJ45 Connector more than 10 years.
 2).Cost reduction, lead time within 1 week, FREE samples.

3).After sales services 24*7 to help you solve any kind of problems

Ingke Technology Mass production of the following models;

2301994-1 2301994-1 2301994-3 2301994-3 2301994-4 2301994-4 2301995-2 2301995-2 2301994-8 2301994-8 2301995-3 2301995-3 2301994-2 2301994-2 2301994-9 2301994-9 5-2301994-1 5-2301994-3 5-2301994-4 5-2301995-2 5-2301994-2 5-2301994-8 5-2301994-9 5-2301995-3 2301995-1 2301995-1 2301994-5 2301994-5 2301994-6 2301994-6 2301994-7 2301994-7 5-2301994-5 5-2301994-6 5-2301994-7 5-2301995-1 2301995-4 2301995-4 1-2301994-0 1-2301994-0 1-2301994-2 1-2301994-2 6-2301994-0 6-2301994-2 5-2301995-4 6-2301994-1 2301996-6 2301996-6 2301996-5 2301996-5  2301996-1 2301996-1 2301996-2 2301996-2 5-2301996-1 5-2301996-2 2301997-5 5-2301996-5 5-2301996-6 2301996-8 2301996-8 2301996-7 2301996-7 2301996-3 2301996-3 2301996-4 2301996-4 2301997-4 5-2301996-4 5-2301996-3 2301997-7 5-2301996-7 5-2301996-8 1-2301994-1 1-2301994-1 2301997-2 5-6605417-7 5-6605802-2 1840419-1 5-6605790-1 5-6605404-6 6605869-9 5-6605853-8 6605852-2 1840570-1 6610000-8 6-6610003-1 5-6610166-1 6610171-5 6610144-6 1-6610075-1 6610023-1 5-6610031-1 1-6610155-2 6-6610067-1 1840135-4 6-6610102-1 6610129-1 6610129-6 6610155-7 5-6610168-8 5-6610090-6 6610174-5 1-6605309-1 1-6605316-1 1-6605403-1 1-6605418-1 1-6605423-1 1-6605458-1 1-6605702-1 1-6605706-1 1-6605710-1 1-6605718-1 1-6605728-1 1-6605744-1 1-6605748-1 1-6605758-1 1-6605763-1 1-6605766-1 1-6605770-1
