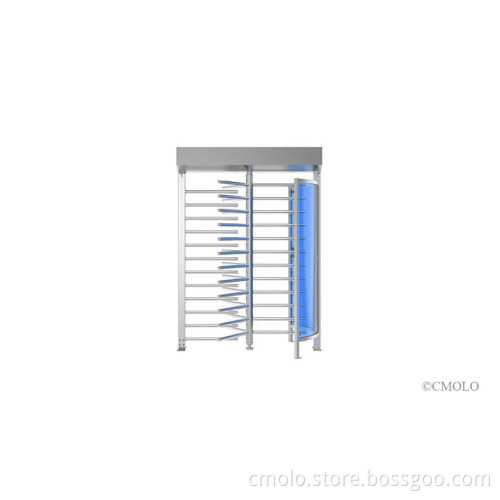

Full Height Turnstile CPW-221AF

Detailed Product Description:

① Housing Material: 304 Grade Stainless Steel

② Working Environment: Indoor Or Outdoor

③ Passage: Single Or Bi-directional

④ Driving Motor: DC Brushless Motor

⑤ Evacuate Passing: 60 People/min

⑥   Operation Temperature:﹣20℃~60℃

Product Features:
● The Access Full Height Turnstile system runs smoothly, long-life performance, high operation dependability and fast response.
● Achieve passing only by one person at a time effectively, and safety and reliability are high.

● Prison Pedestrian Full Height Turnstile can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Facial/ Fingerprint recognition device).

● The resistance ,whose area is large , Facial Recognition revolving turnstile is suitable for the place with small flow of people and high security requirements.
● Rotating gate is equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), compatible with all kinds of access controllers.
● Pedestrian Access Full Height Turnstile has automatic function of opening or closing when power off.

Product Function:
● Anti-intrusion function:Not giving a valid opening signal in the controlled mode or in forbidden passing mode, Revolving Turnstile arms are forced away , which will be regarded as illegal intrusion.
● Anti-reverse pass function:One direction receives a valid opening signal , but pedestrians enter the passage from the opposite direction and push the arms within the allowing time. It will be deemed to be the reverse. The arms of the direction is lock in order to prevent reverse.
● Memory function of passing requests: When more than 2 passing signals are given at the same time (including the same direction and opposite direction),Pedestrian Access revolving turnstile will remember all the passing requests and finish them one by one. The number can be up to 255.

● Self-recovery function: The rotating turnstile arms do not return to the hindered zero position because of human intervention. After revoking human intervention, turnstile arms will return to the hindered zero position automatically.

● Open gate when power off: Adopt the leading mechanical structure of CMOLO's original creation; Facial Recognition full height turnstile system will rotate arms automatically when power off or manually push the arms to be open so as to evacuate people, which meets the firefighting requirement.

Occasion Applications:
● military bases
● state secret units
● prisons
● factories
● residential communities

● tourist attractions
