600W 36V 16.5A Switching Power Supply

600W 36V 16.5A Switching Power Supply

AC to DC 36v 16.5a switching power supply adapter 600w is one model we can do. This project case we can do power supply 36V 360W-600W. With single output, constant voltage, high in quality with PFC more than 0.99. Over current and over load protection. 36V 15A power supply 500W can  use for motor etc.This power supply with DOE Level VI Standard and the smps with two years warranty.

Product specifications:

Model NO.:PC-360165

AC Input:100~240V AC 50/60Hz  Max:90~264V AC 47/63Hz

DC Voltage: 36V

Rate Current: 16.5A

Current Range:0~16.5A

Rate Power: 600W

Material:100% PC

Certification:Approved CE RoHS FCC certifications

Rippe & Noise:<360MVP-P

Voltage Tolerance:±5%

Line Regulation:±1%

Load Regulation:±5%

Efficiency:>88%

PFC: >0.99

Short Circuit Protection:Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.

Over Current Protection:130%~150%

Over Voltage Protection:115%~135%

Operating Temperature:-10℃~50℃(±10℃)

Relative Humidity:20%~90% RH

Storage Temperature:-40℃~80℃(±10℃)

DC Connector: 6PIN, Bare wire ...can be customized

DC Power Cord: 0.5M, 0.6M, 0.8M, 0.9M,(Customized available)

AC Power Cord:USA/UK/EU/AU/India Plugs(Customized available)

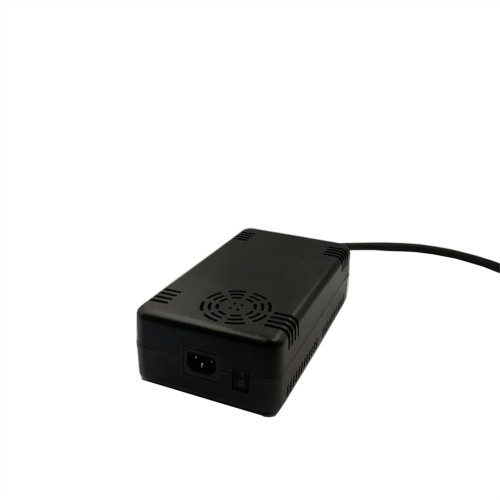

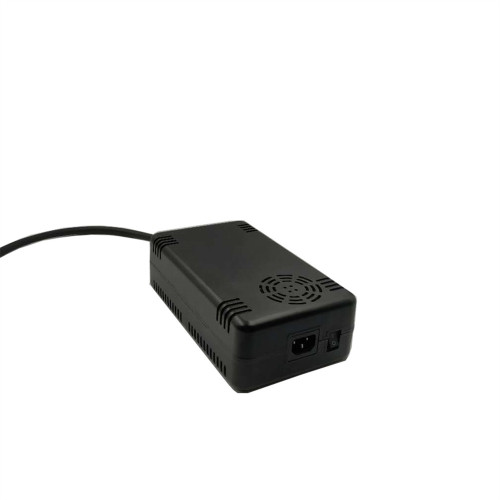

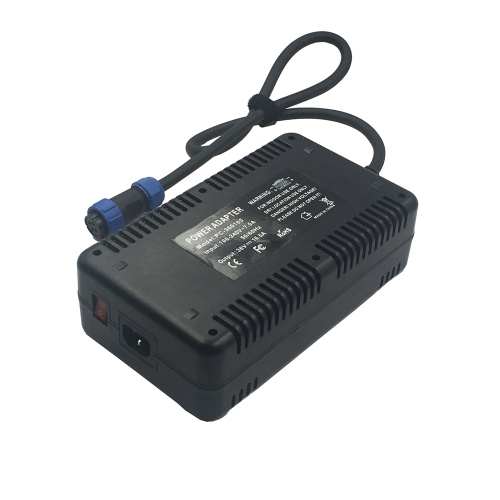

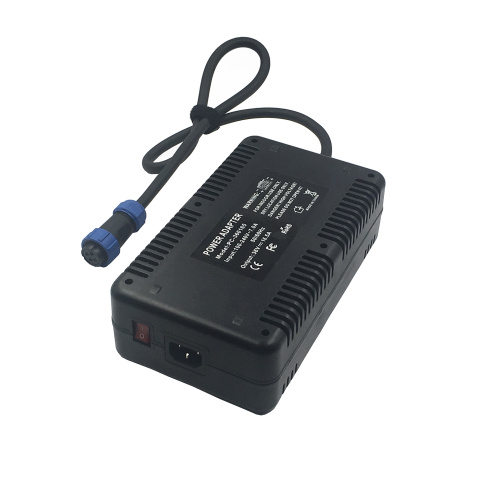

Product show:

Why Choose US:

• Professional team for after-sale service 7*24
• 11 years Alibaba Gold supplier
• Experienced R & D team and profesional sales team
• OEM & ODM service, we will evaluate, design and produce your customized products
• Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.

Trade Term:

• Payment term: PayPal, Western Union, T/T
• Leading time:7-9  working days
• Sample: 3-5 working days after payment confirmed
• Freight cost: Customers's shipping agent or our forwarder
• Shipping port: Shenzhen, China

FAQ:

   Q1: WAHT'S YOUR MOQ:

    A1: Usually MOQ is 100pcs, we also can accept trail order to support new customers, 1000pcs for customized units

    Q2:  WHAT'S YOUR WARRANTY?

    A2:  Two years warranty.

    Q3:  HOW ABOUT THE LEADING TIME?

    A3:  For samples, leading time is 3-5 working days.

           For mass cargo, leading time will be 7-9 working days

    Q4: CAN WE PRINT OUR LOGO?

    A4: The logo can be printed on the adapter label or package.

    Q5: WHY IS NEW MODEL EXPENSIVE THAN OLD MODELS/

    A5: New models needs R & D cost and mould cost, the depletion rate is big during mould and production.

           That is say that new  model is low productive but labor cost keep same as old model.
