24V 21A 504W AC DC Switching Power Supply

24V 21A 504W AC DC Switching Power Supply

24V 21A switching power supply has high PFC function to ensure it work Efficiency and steadily. The material of this power supply adapter is 100% PC, it also meet CE-EMC, CE-LVD, ROHS and FCC standard, and all our power adapters products are 100% aging test before shipment.The switching power supply with two years warranty.

Product specification:

Model NO.:PC-240210

AC input:100~240V AC 50/60Hz  Max:90~264V AC 47/63Hz

DC Voltage: 24V

Rate Current: 21A

Current Range:0~21A

Rate Power: 504W

Material:100% PC

Rippe & Noise:<240MVP-P

Voltage Tolerance:±5%

Line Regulation:±1%

Load Regulation:±5%

Efficiency:>88%

PFC>0.99

Short Circuit Protection:Shall be protected when any output operation in circuit short condition, and shall be auto restart when the fault condition is removed.

Over Current Protection:130%~150%

Over Voltage Protection:115%~135%

Operating Temperature:-10℃~50℃(±10℃)

Relative Humidity:20%~90% RH

Storage Temperature:-40℃~80℃(±10℃)

DC Connector: 4 PIN Connector (Customized available)

DC Power Cord: 0.5-0.9M(Customized available)

AC Power Cord: USA/UK/EU/AU/India Plugs AC power cable(Customized available)

Features:

(1)High efficiency, High reliability, Long life time

(2)Efficiency: 88% min

(3)Approved CE RHOS FCC certification

(4)Warranty: 2 years

(5)Protection: Over current protection, Over voltage protection, Short  circuit  protection; Over temperature protection.

(6) Real power, high reliablity, long life
     IEC320-C14, IEC320-C6 AC inlet optional
     OEM/ODM welcome (special voltage & dc connector & logo & package).

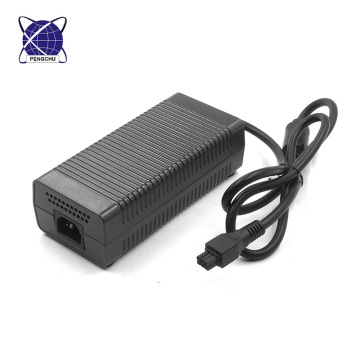

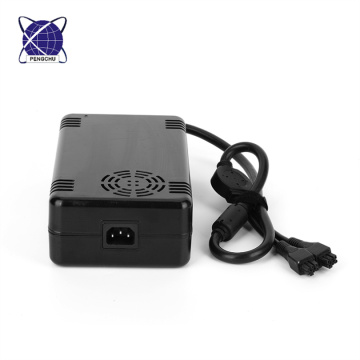

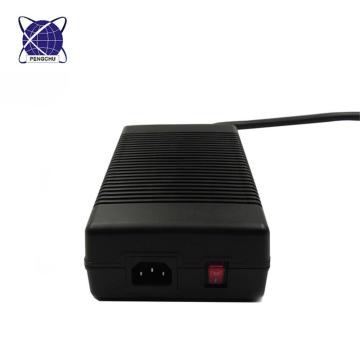

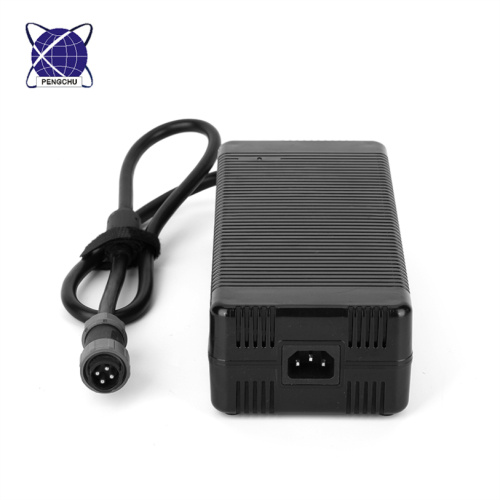

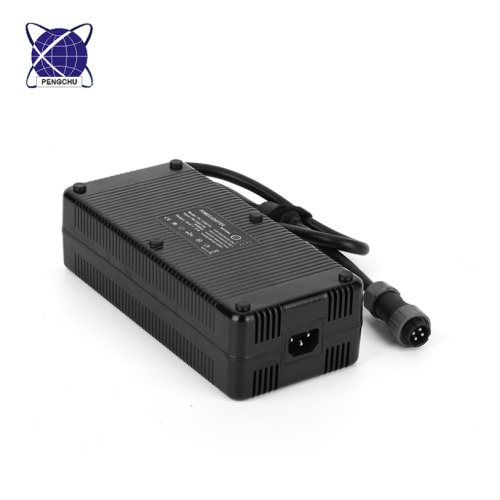

Product show:

Why Choose US:

• Professional team for after-sale service 7*24
• 11 years Alibaba Gold supplier
• Experienced R & D team and profesional sales team
• OEM & ODM service, we will evaluate, design and produce your customized products
• Offer confidentiality agreement to protect your profit, with us your business will be in safe your money in safe.

Trade Term:

• Payment term: PayPal, Western Union, T/T
• Leading time:7-9  working days
• Sample: 3-5 working days after payment confirmed
• Freight cost: Customers's shipping agent or our forwarder
• Shipping port: Shenzhen, China

FAQ:

   Q1: WAHT'S YOUR MOQ:

    A1: Usually MOQ is 100pcs, we also can accept trail order to support new customers, 1000pcs for customized units

    Q2:  WHAT'S YOUR WARRANTY?

    A2:  Two years warranty.

    Q3:  HOW ABOUT THE LEADING TIME?

    A3:  For samples, leading time is 3-5 working days.

           For mass cargo, leading time will be 7-9 working days

    Q4: CAN WE PRINT OUR LOGO?

    A4: The logo can be printed on the adapter label or package.

    Q5: WHY IS NEW MODEL EXPENSIVE THAN OLD MODELS/

    A5: New models needs R & D cost and mould cost, the depletion rate is big during mould and production.

           That is say that new  model is low productive but labor cost keep same as old model.
