19v switching power supply 16a

19v switching power supply 16a

19v switching power supply 16a is design with "on/off" switch beside the AC inlet and good shape,this power adapter has high PFC function more than 0.99 and well performance,without cooling fan but has low noise,ac adapter can be charging for all kinds of electric devices,if you are interested in our power supply adapters please send inquiry to us to know more detail information.

Features:

l Universal AC input/Full range(up to 264Vac)

l Protection: Short circuit/Overload/Over temperature

l Cooling by free air convection

l High efficiency, long life and high reliability

l 100% full load burn-in test

l Fixed switching frequency at 75KHz and 55 KHz

l 12 months warranty

Product Description:

Model No:PC-190160

AC input: 100-240Vac, 50/60HZ

DC voltage: 19V

Rated current: 16A

Rated power: 304W

Dimension: 220*110*55MM

Ripple & Noise: <190mVp-p

Voltage tolerance: ±5%

Line Regulation: ±1%

Load Regulation: ±5%

Short Circuit protection: shall be protected when any output operation in circuit short condition, and shall be auto relstart when the fault condition is removed.

Over Current protection: 130%-150%

Over Voltage protection: 115%-135%

Operation Temperature: -10-50℃ (±10℃)

Storage Temperature:  -40-80℃ (±10℃)

DC connector: 4PIN connector

AC Power Cord: 0.9M/1.2M/1.5M(Customized Available)

AC Power Cord: 1.2M AC Power Cable with UK/AU/USA/EU/India plugs

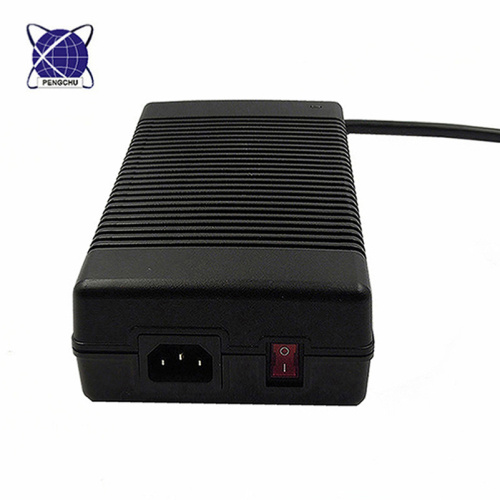

Product Images:
