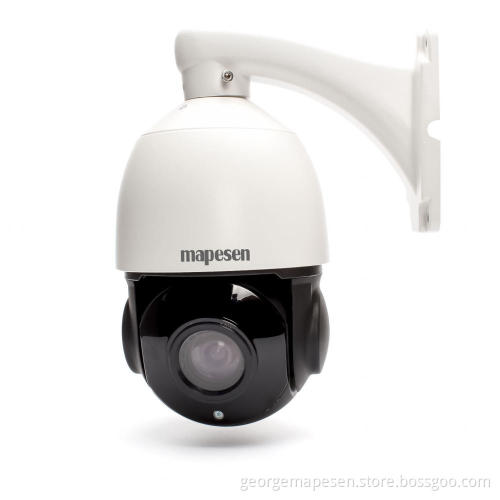

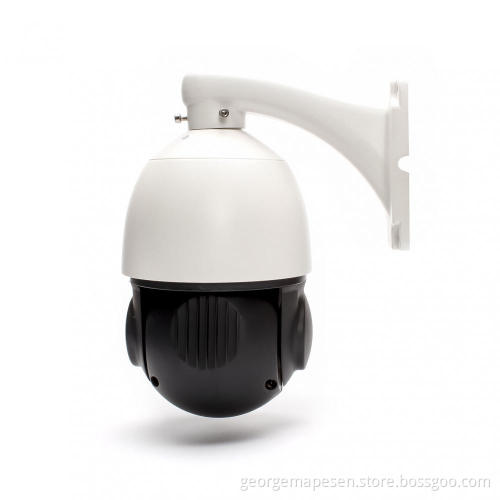

401Series 2.0MP 18X Network IR PTZ Camera
-
USD150≥100 Bag/Bags
- Min. Order:
- 100 Bag/Bags
- Min. Order:
- 100 Bag/Bags
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | 500000 |
| Certificate: | ce fcc |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
| Camera | |
| Image Sensor: | 1/2.7" Progressive Scan CMOS |
| Effective Pixels: | 2.0 Megapixels |
| Signal System: | PAL/NTSC |
| Minimum Illumination: | Color: 0.2Lux @ (F1.2,AGC ON), B/W: 0.01Lux @(F1.2,AGC ON),0 Lux with IR |
| White Balance: | Auto / Manual / ATW / Indoor / Outdoor |
| AGC: | Auto/Manual |
| BLC: | ON/OFF |
| HLC: | Support |
| Smart defog: | Support |
| WDR: | Support |
| Shutter Time: | 1/2~1/20,000s |
| Day&Night: | ICR |
| Digital Zoom: | 16X |
| Privacy Masking: | 4 privacy masks programmable |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length: | 4.7-84.6mm,18X |
| Zoom Speed: | Approx.3.0s |
| Angle of View: | 68.5-4.2 degrees(Wide-Tele) |
| Minimum Working Distance: | 10-1500mm(Wide-Tele) |
| Aperture Range: | F1.2-F2.8 |
| Pan&Tilt | |
| Pan Range: | 360°endless |
| Pan Speed | 6°-30°/s |
| Tilt Range: | 0-90°,auto flip 180° |
| Tilt Speed: | 4-17°/s |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | 128 |
| Patrol: | 4 patrols,up to 16 presents per patrol |
| Pattern: | 1 pattern,with total recording time more than 10 minutes |
| Power Loss Recovery: | Support |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| Freeze Frame: | Support |
| Smart-tracking: | Support |
| Infrared | |
| IR irradiation Distance: | 120M |
| IR irradiation Angle: | Adjustable by zoom |
| Network | |
| Ethernet: | RJ45 Connector |
| Main Stream: |
50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) |
| Sub Stream: | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Image Compression: | H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High profile |
| Max. Image Size: | 1920(H) x 1080(V) |
| Network Protocol: | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP/IP ,DHCP,PPPoE |
| User Permission : | Max. 32 users (3-level: administrator, operator, only browse ) |
| While Previewing Video: | 6 |
| Network interface: | Built-in RJ45 port,support 10M/100M |
| API: |
Support ONVIF, 28181; Support the Third-party management platform Provide SDK |
| Client GUI | |
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
| Date&Time Display | Time: Week: Date, 6 formats on the Client |
| Client: | Support PC, NVR iVMS-4200 PCNVR |
| Web Browser: | IE7.IE8.IE9,Chrome8+,Firefox3.5+,Safari5+ |
| General | |
| Menu Language: | English |
| Power Supply: | DC 12V/4A |
| Power Consumption: | MAX. 10W (day); MAX. 30W (night) |
| Working Temperature/Humidity | -20℃-+60℃, ≤90%RH( frostless ) |
| Protection Level: | TVS3000V lightning protection, surge protection and voltage transient protection, weather proof (for outdoor): IP66 |
| Dimensions: | Φ136.1×225mm |
| Weight(approx): | 4.2kg(9.25lb) |
