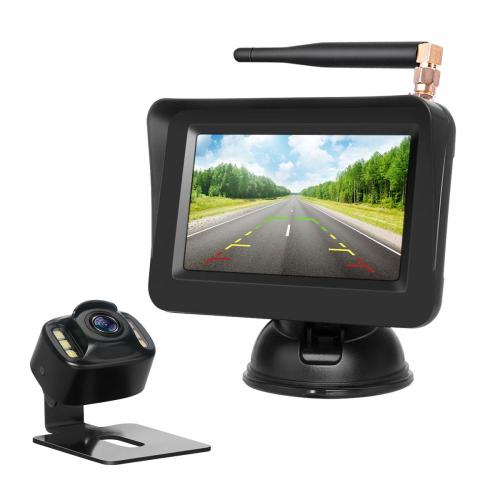

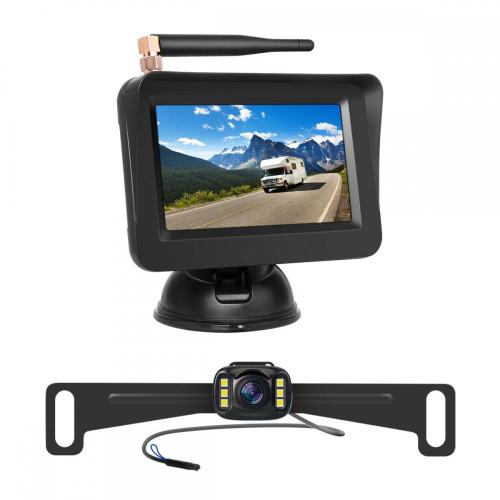

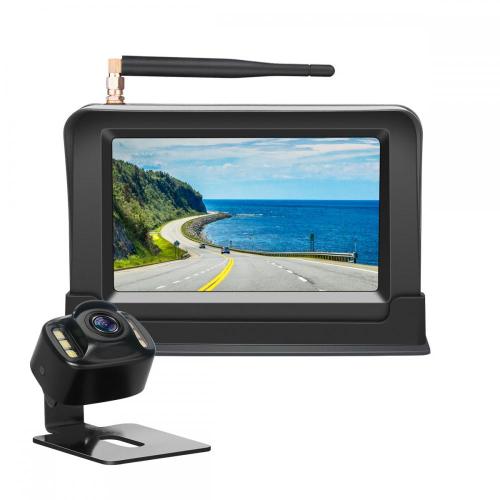

Wireless Backup Camera with Monitor 4.3inch

Front /Rear View Camera with 4.3inch Color Screen Monitor, Wireless System

For SEDAN, SUV, PICKUP etc.

Monitor Built in wireless video receiver, camera built with video transmitter

Features
1. Camera with 6pcs LED, it can work optimally in dark conditions.

2. Multi Language Operation: English ,Chinese,Nederlands, PYCC, Italian, ESPA, Deutsch,French etc

4. The Screen Designd and made by Sunveytech factory , with design patent
5. Facing Front View/ Mirror Rear View Switchable
6. Brightness, Contrast is Adjustable
7. Reset Function to Restore Default Settings

8. Four Button Key at the Back of Monitor

9. Switch channel: monitor can connect 2 cameras, support 2 video channels for front and rear view, 2 channel switchable , single channel display

10. Camera viewpoint  is adjustable up and down in 45°, short brakcet and long bracket is optional

11. Distance Scale Lines turn on/off manually, adjustable in H/W/V, by button key at the back of screen

Monitor Specification:

LCD Size: 4.3 Inch Color Monitor
Operating Frequency: 2400-2483.5MHZ
System: PAL / NTSC system(auto switch)
Resolution: 480(H) x 272(V)
Brightness: 500 cd/㎡
Response Time:25ms
TV System: PAL/NTSC
Contrast: 500:1
Power Supply: DC9V-35V
Operating temperature: -20℃~+70℃
Storage temperature: -30℃~+80℃

Camera Specification:
Waterproof Rating: IP68
Image Sensor: 1/4" HD
Operating Frequency: 2400-2483.5MHZ
TV System: NTSC/PAL
Resolution: 480TV Lines
Minimum Illumination: 0 Lux (LED ON)
Camera LED Light : 6pcs
View Angle: 110°[H] 150°[D]
Power Supply: DC10V-24V
Operating temperature: -20℃~+70℃
Storage temperature: -30℃~+80℃

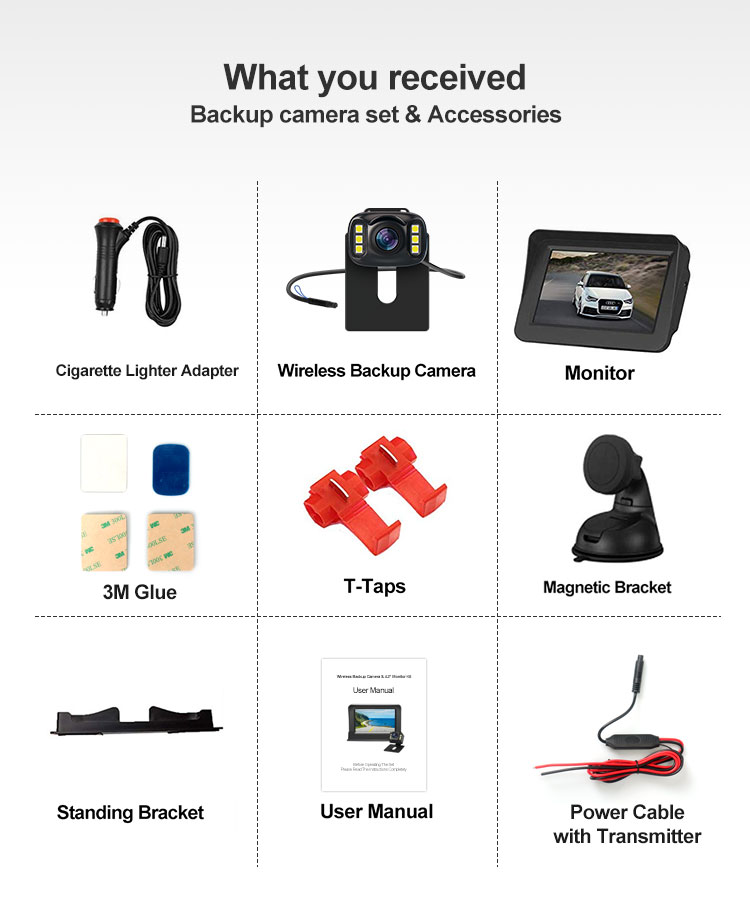

Package:
 19.8 *14.1*12cm / Set,  0.6 KG / Set,  30 Sets / Carton， 21KG/Carton
