Waterproof Wifi Backup Camera with Night Vision

Waterproof Wifi Backup Camera with Night Vision

USD42

2-2999 Piece/Pieces
USD35

≥3000 Piece/Pieces

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000pcs/Day
Supply Ability:	100000pcs/Month
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE/FCC/ROHS/IP68
HS Code:	8525801390
Transportation:	Ocean,Land,Air
Port:	Shenzhen

Product Description

Wifi APP Backup Camera

Camera Specifications
- Transmission: 100ft in the open area
- TV System: PAL / NTSC
- Waterproof rating: IP69K
- Effective Pixels: 648 x 512 pixels
- Resolution: 700TV lines
- Minimum Illumination:0.5Lux / F1.2 0.2Lux / F1.2 (0Lux IR ON)
- Pin Lens: f=2.8mm / F = 2.0
- Lens Angle:130°
- IR LEDs: 18 Pcs
- Vertical Sync. Frequency: 50Hz / 60Hz
- Video Output: 1.0vp-p, 75Ohm
- Power Supply: DC12V-24V
- Consumption:≤300mA

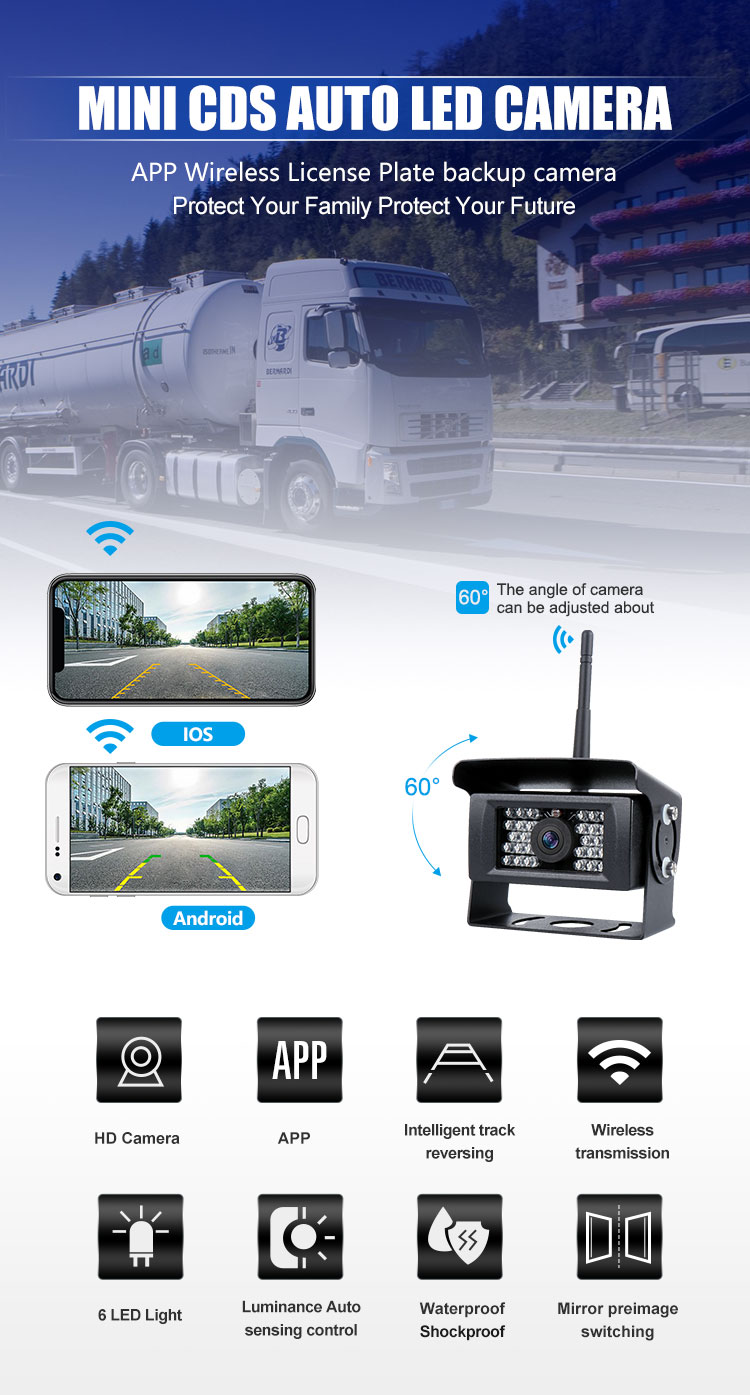

WIFI Wireless Backup Camera

Image Sensor:1/3 inch HD Cmos

Operating frequency:2400-2483.5MHZ

Transmitted Power:17db

TV System:PAL/NTSC

Resolution; 550TV lines

Minimum illumination:0 lux[LED ON]

View Angle: 127° [H] 170° [D]

The IP Rating: IP68

Power:200mA

Power Supply: DC12V-36V

Operating temperature:-20℃~+70℃

Storage temperature:-30℃~+80℃

Open area transmission distance:100M

T928WF_01 T928WF-2 T928WF-8 T928WF-6 T928WF-4 T928WF-5 T928WF_09 T928WF-9 T928WF_10

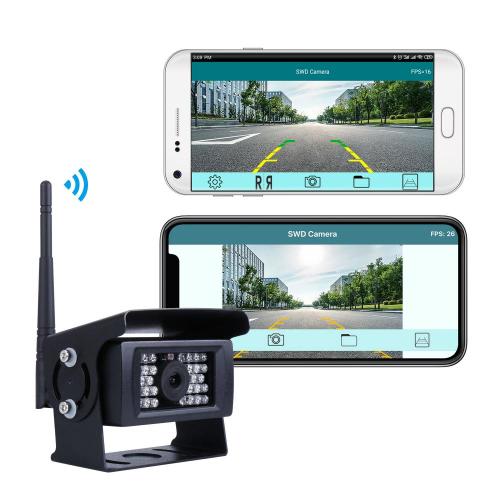

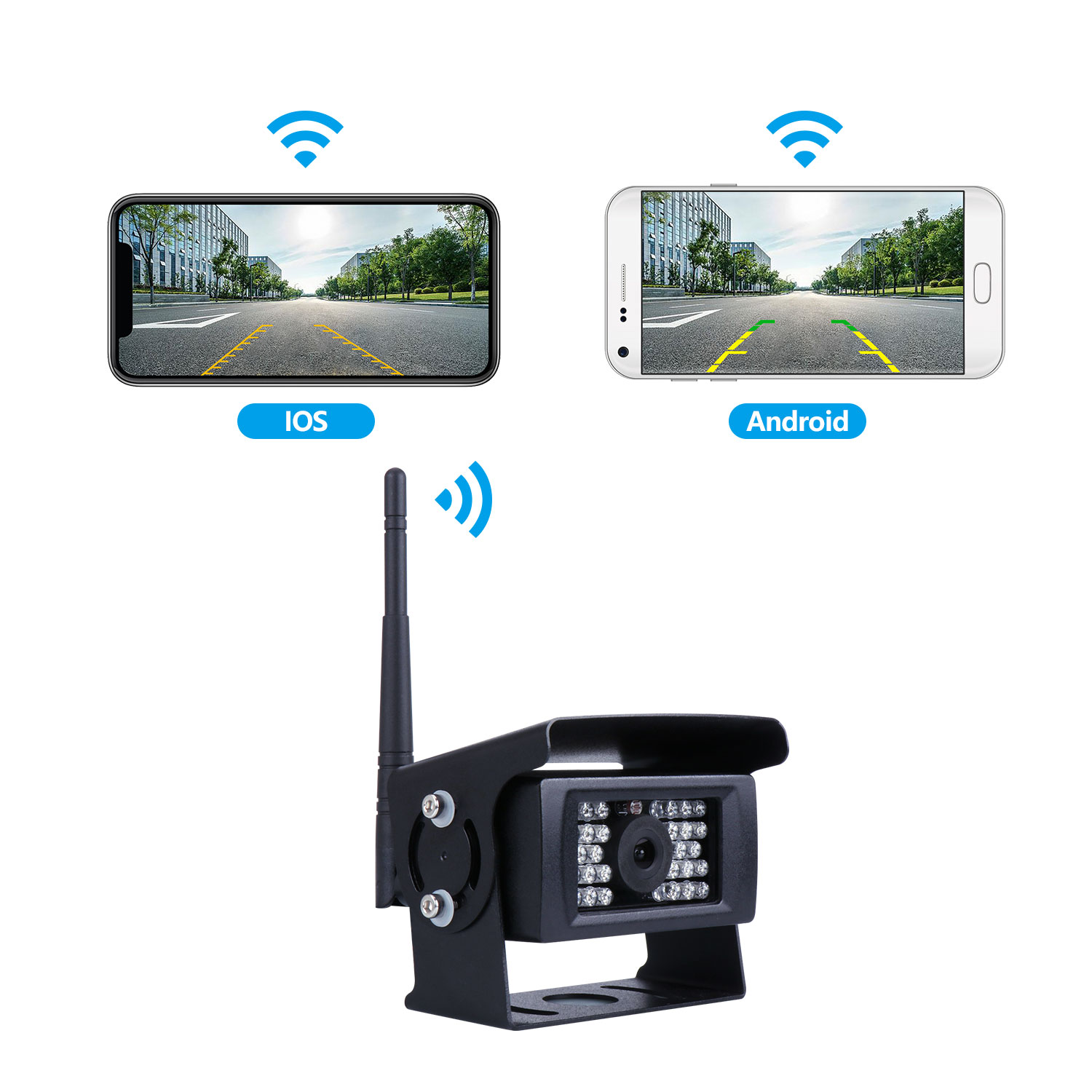

This wifi Vehicle Backup Camera connects wirelessly to your smartphone allowing you to see the camera view on your smartphone and tablet screen
Waterproof Backup camera with 28 infrared leds and a built-in WiFi transmitter which connects to via a WiFi connection.
It has easy installation, simple connection, low power consumption, no flicker,no interference, colorful and realistic, and can be widely used in varies vehicle.
To view the camera on your smartphone, simply download the free SWD Camera app from the App Store or My Cam app from Google Play Store.

Advantage Highlights:

WiFi Connection -the product adopts latest car wifi point to point wireless connection technology. No any interference with other wireless devices.
Easy installation-saving your installation program and installation cost, no more complex wiring.
Camera equipped with IP68 weatherproof rating, designed and tested for extreme climates . 28 infrareds show clear image on your smart phone at night.
App on App Store and Google Play Store.
Low power consumption, voltage range from 9-36V DC power, flexible vehicle compatibility.

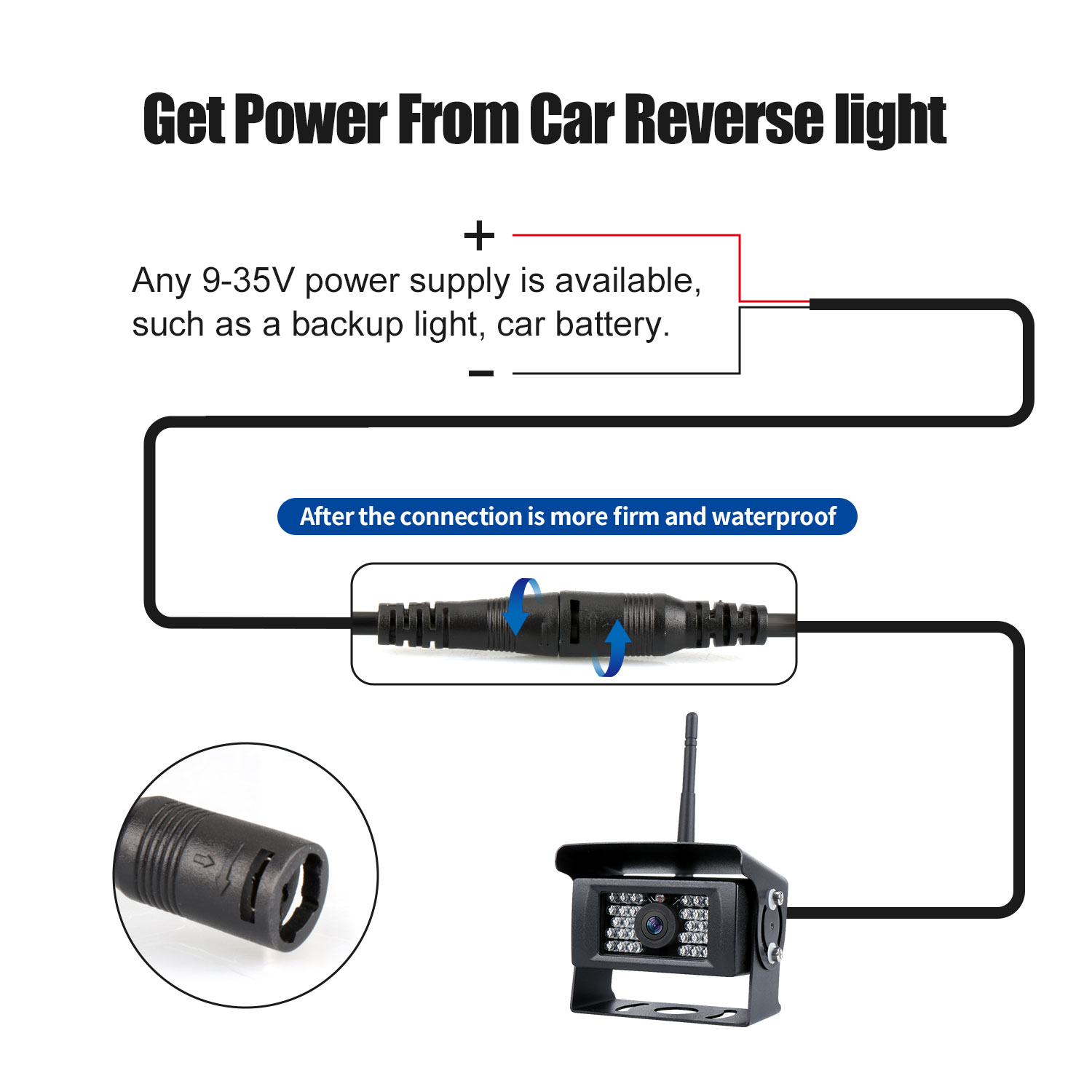

Working Only When Reversing :
Red Connect to Reversing lights
Black Connect to Ground.
Working as Monitor
Red Connect to Running Lights or Other Continues Power
Black Connect to Ground
Connect WIFI:
Keep WIFI Open In Your Phone
Open App to Showing Video

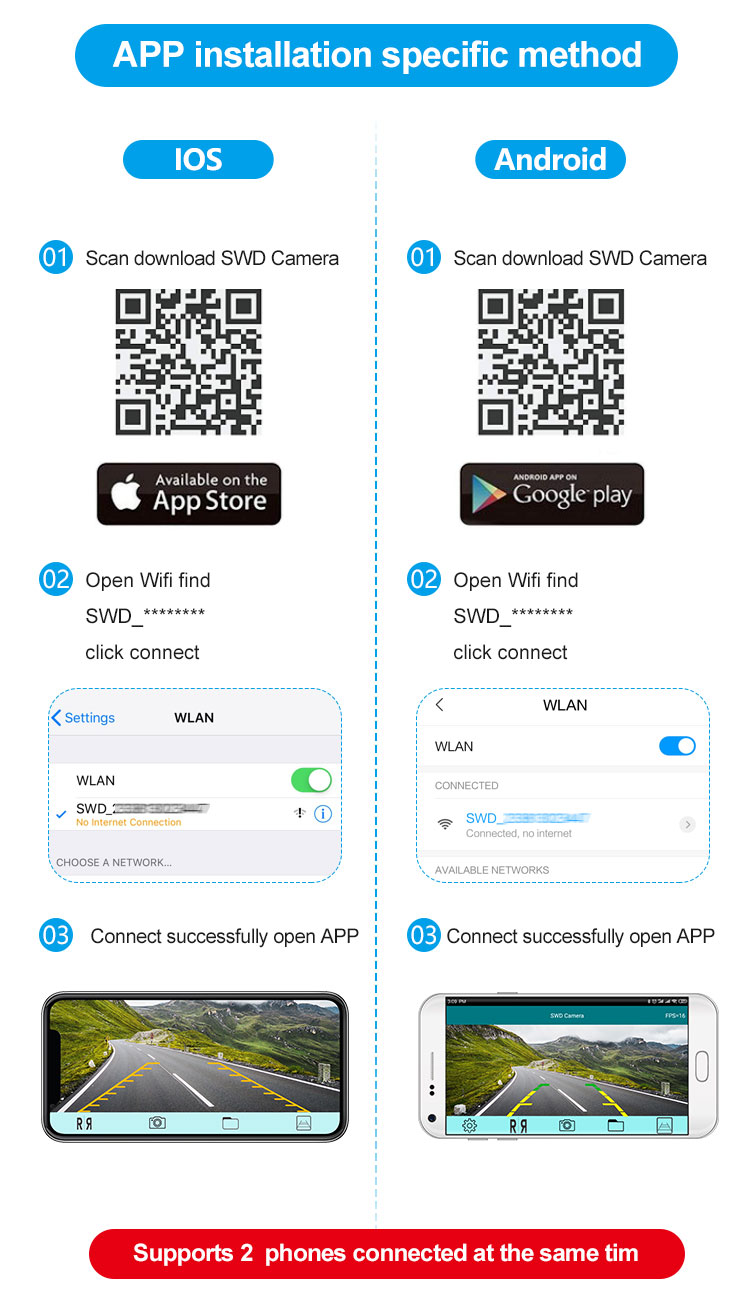

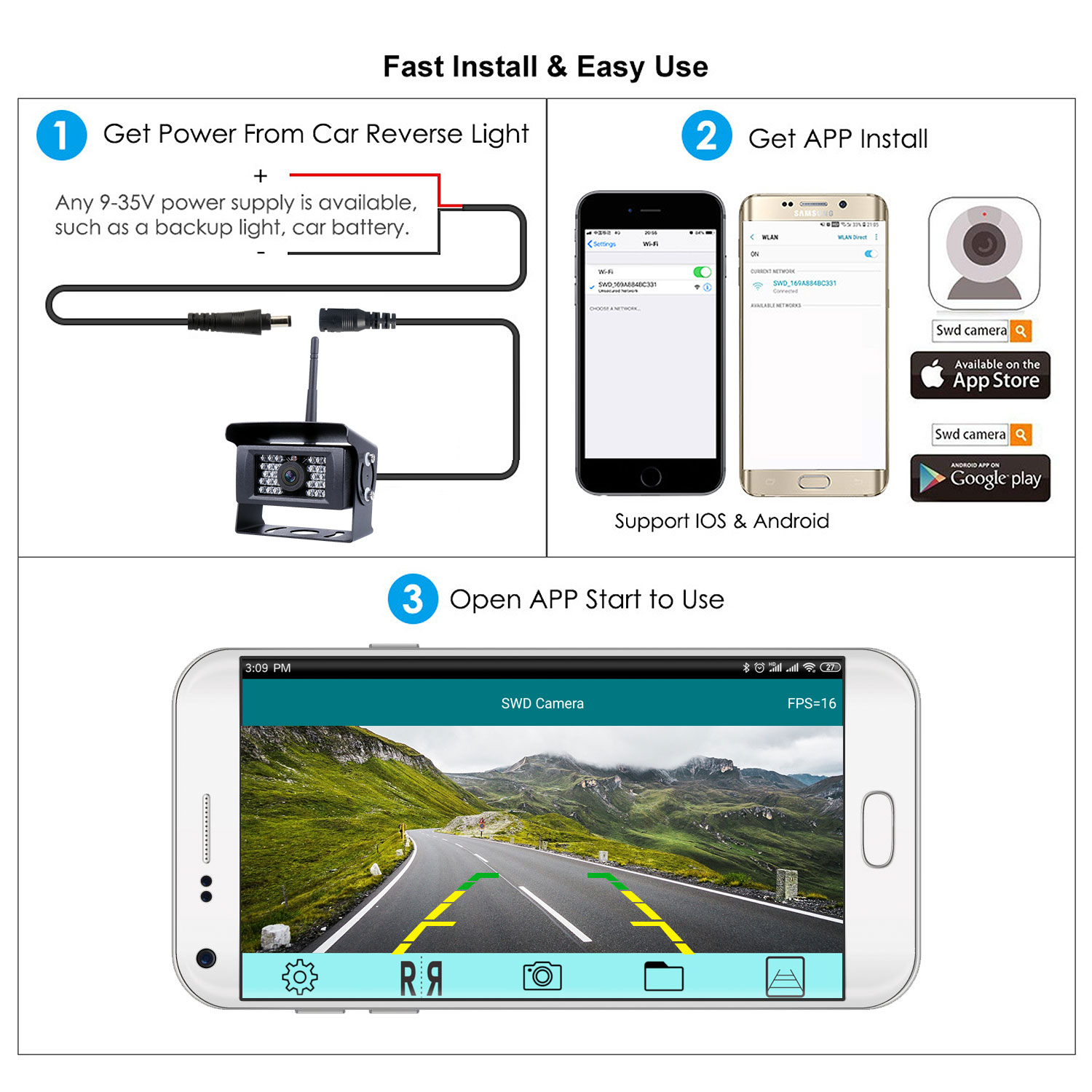

Easy to Use

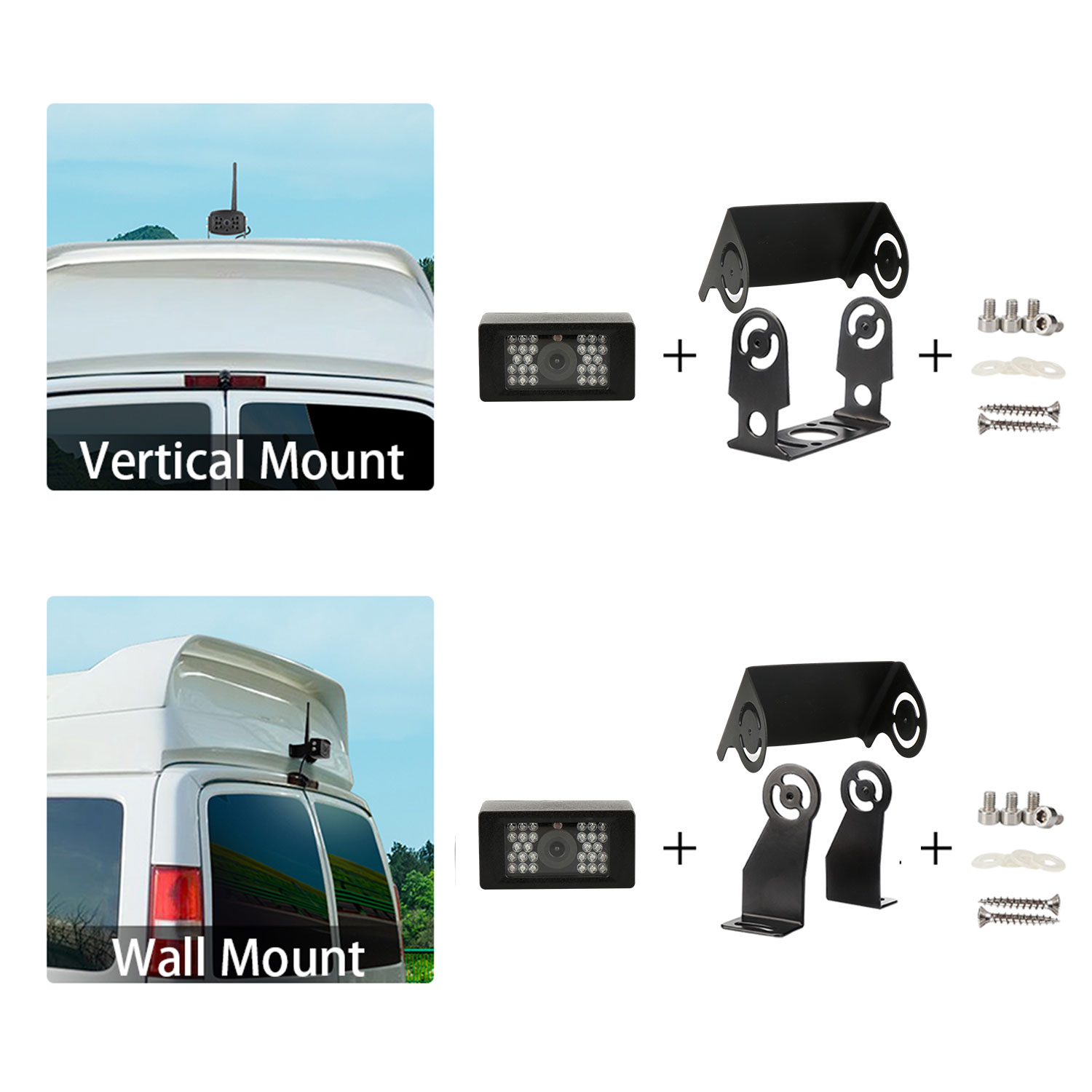

1.Install the camera anywhere you want.
2.Searching "SWD Camera" in App Store or Google Play and install the app on your smart phone.
3.Connect your phone to the WIFI, which is with a name beginning with "SWD".
4.Open the app to use this wireless backup system.
