WIFI Wireless Rear View Camera Waterproof Night Vision
-
USD422-2999 Piece/Pieces
-
USD35≥3000 Piece/Pieces
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000pcs/Day |
| Supply Ability: | 100000pcs/Month |
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE/FCC/ROHS/IP68 |
| HS Code: | 8525801390 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Wifi APP Backup Camera
Camera Specifications
- Transmission: 100ft in the open area
- TV System: PAL / NTSC
- Waterproof rating: IP69K
- Effective Pixels: 648 x 512 pixels
- Resolution: 700TV lines
- Minimum Illumination:0.5Lux / F1.2 0.2Lux / F1.2 (0Lux IR ON)
- Pin Lens: f=2.8mm / F = 2.0
- Lens Angle:130°
- IR LEDs: 12 Pcs
- Vertical Sync. Frequency: 50Hz / 60Hz
- Video Output: 1.0vp-p, 75Ohm
- Power Supply: DC12V-24V
- Consumption:≤300mA
| WIFI Wireless Backup Camera |
| Image Sensor:1/3 inch HD Cmos |
| Operating frequency:2400-2483.5MHZ |
| Transmitted Power:17db |
| TV System:PAL/NTSC |
| Resolution; 550TV lines |
| Minimum illumination:0 lux[LED ON] |
| View Angle: 127° [H] 170° [D] |
| The IP Rating: IP68 |
| Power:200mA |
| Power Supply: DC12V-36V |
| Operating temperature:-20℃~+70℃ |
| Storage temperature:-30℃~+80℃ |
| Open area transmission distance:100M |
Features

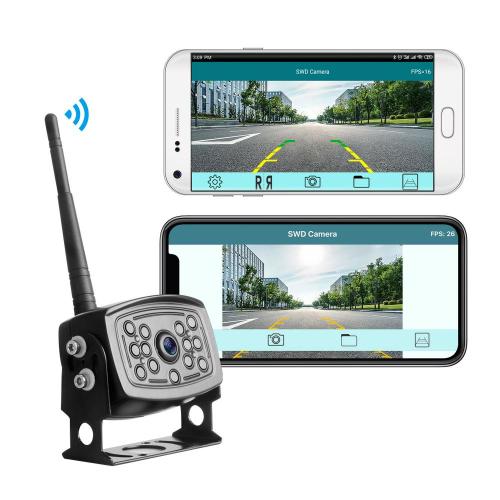

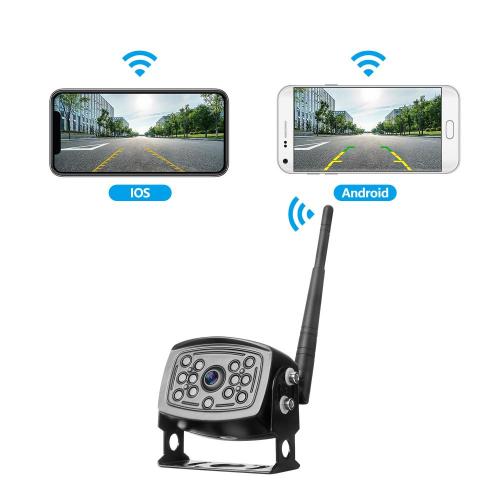

- This wifi Vehicle Backup Camera connects wirelessly to your smartphone allowing you to see the camera view on your smartphone screen
- Waterproof Backup camera with 12 infrared leds and a built-in WiFi transmitter which connects to via a WiFi connection.
- It has easy installation, simple connection, low power consumption, no flicker,no interference, colorful and realistic, and can be widely used in varies vehicle.

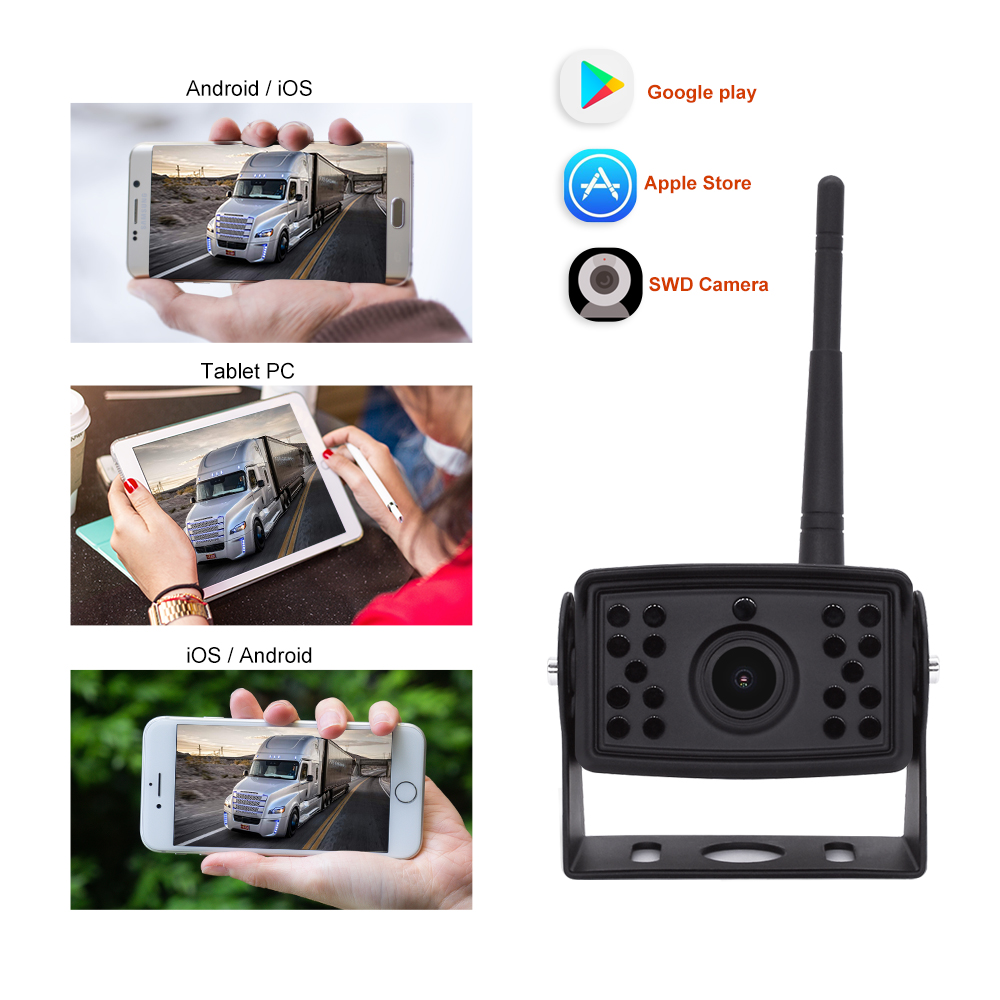

- To view the camera on your smartphone, simply download the free SWD Camera app from the App Store or My Cam app from Google Play Store.
Advantage

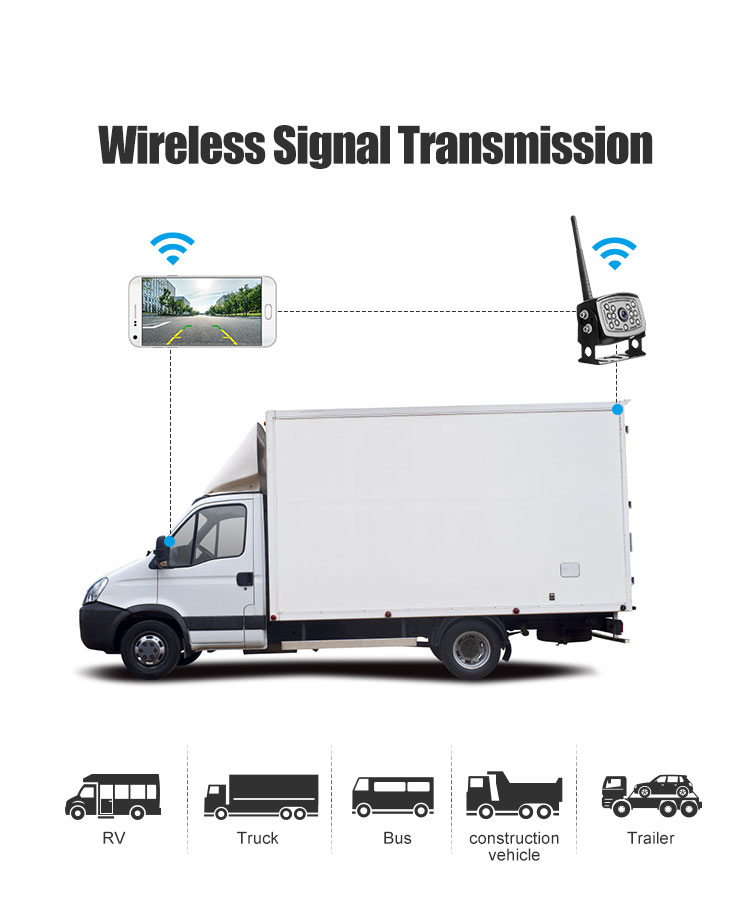

- WiFi Connection -the product adopts latest car wifi point to point wireless connection technology. No any interference with other wireless devices.

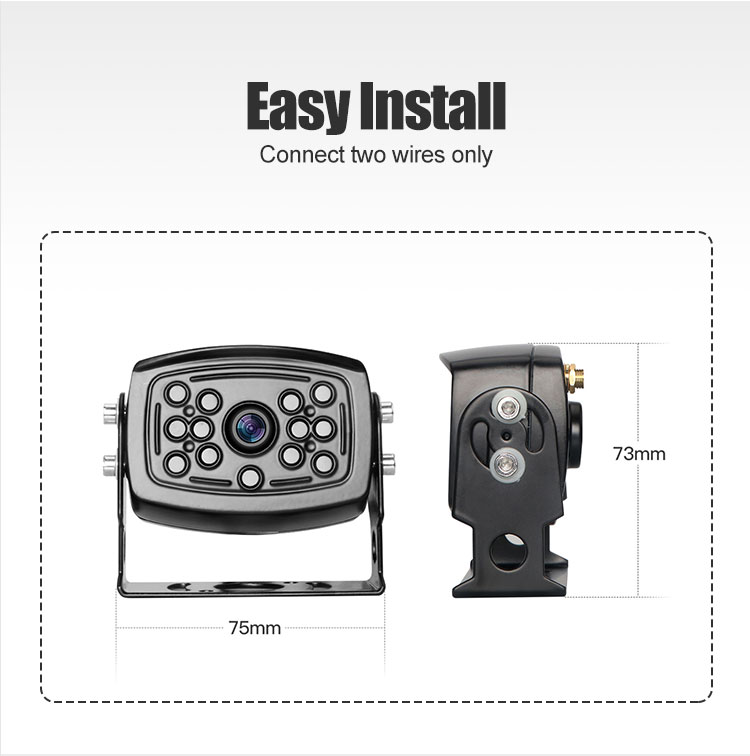

- Easy installation-saving your installation program and installation cost, no more complex wiring.
- Camera equipped with IP68 weatherproof rating, designed and tested for extreme climates . 12 infrareds show clear image on your smart phone at night.
- App on App Store and Google Play Store.
- Low power consumption, voltage range from 9-36V DC power, flexible vehicle compatibility.
Working Only When Reversing :
Red Connect to Reversing lights
Black Connect to Ground.
Working as Monitor
Red Connect to Running Lights or Other Continues Power
Black Connect to Ground
Connect WIFI:
Keep WIFI Open In Your Phone
Open App to Showing Video

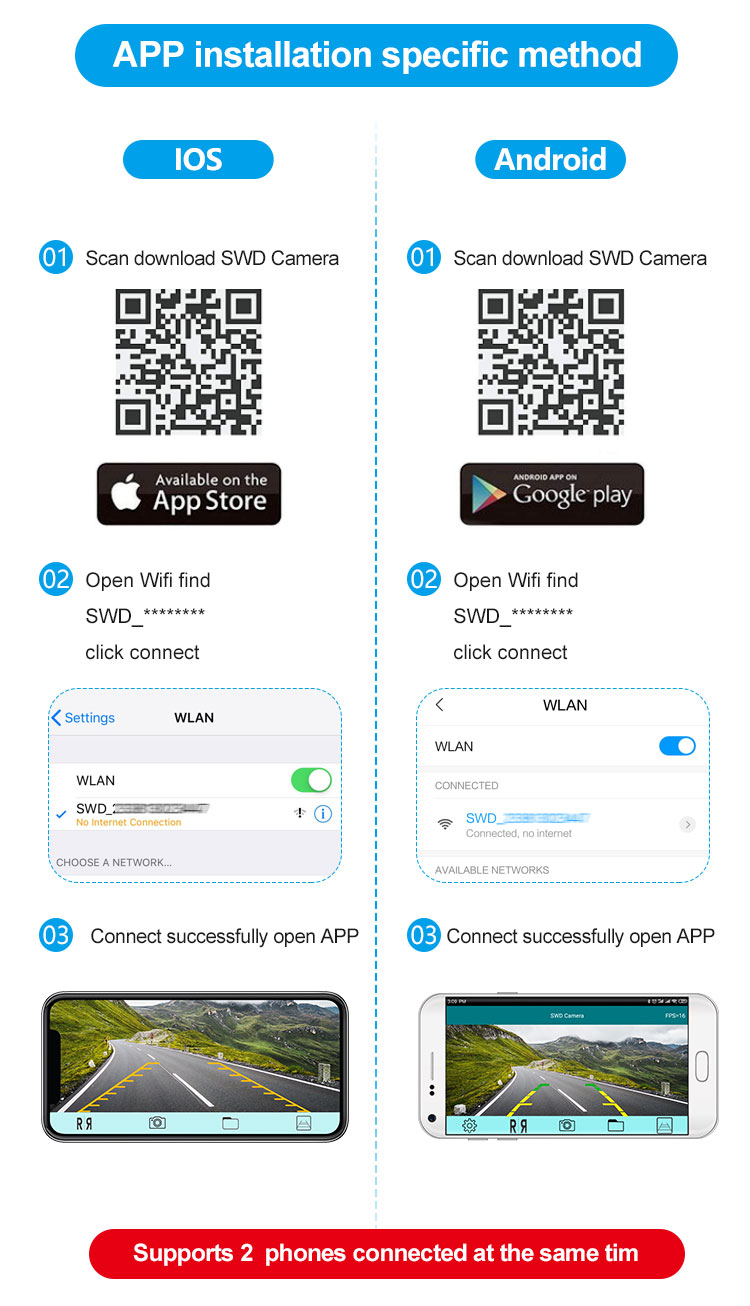

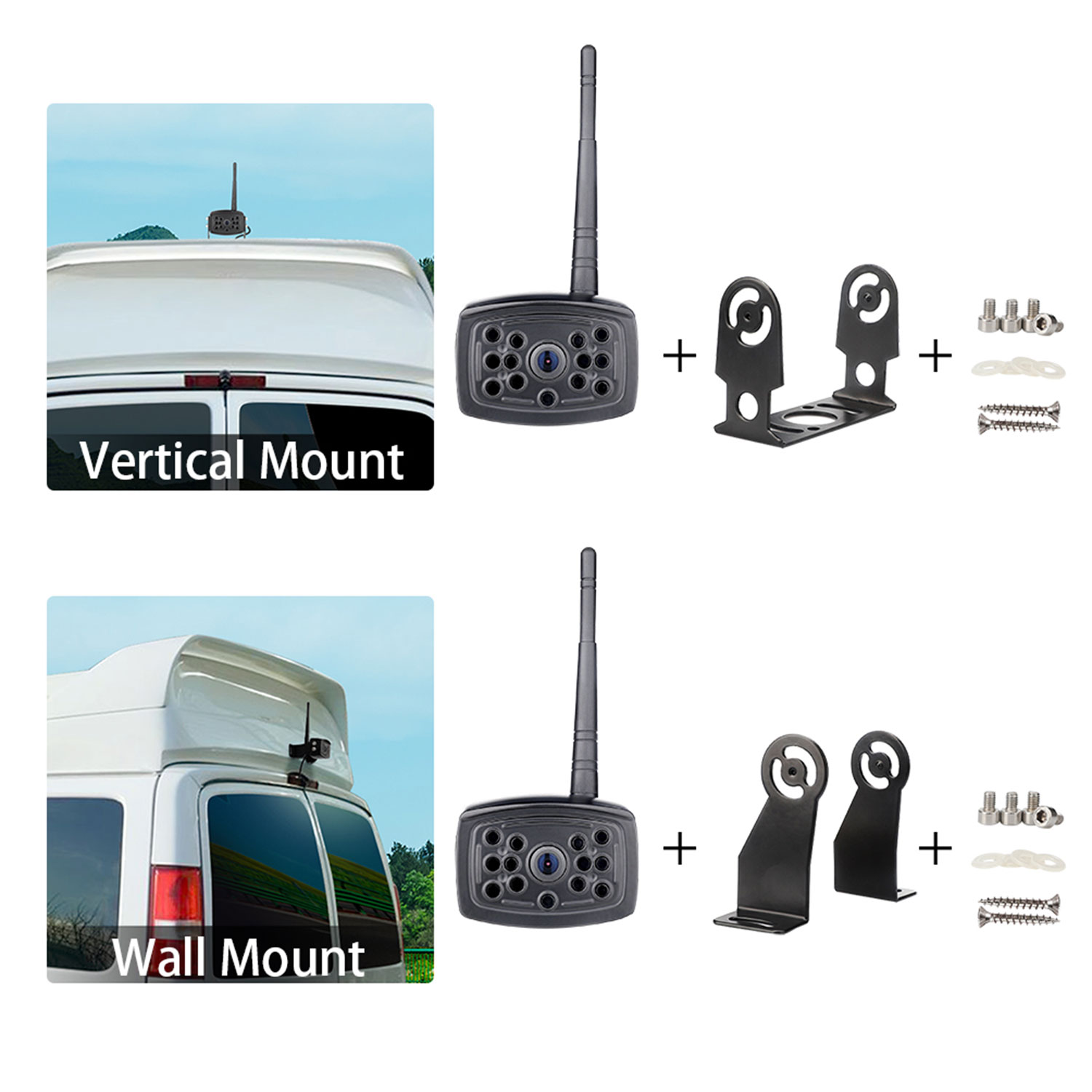

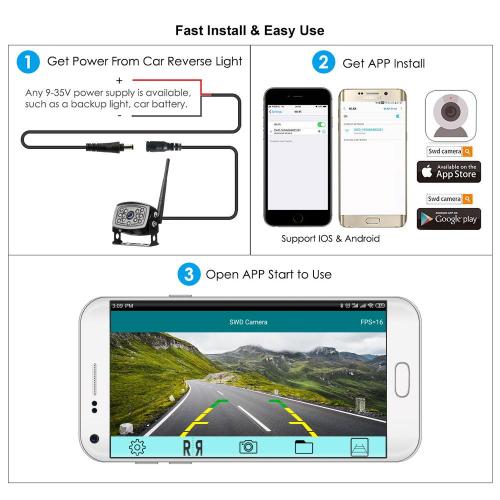

1.Install the camera anywhere you want.
2.Searching "SWD Camera" in App Store or Google Play and install the app on your smart phone.
3.Connect your phone to the WIFI, which is with a name beginning with "SWD".
4.Open the app to use this wireless backup system.
