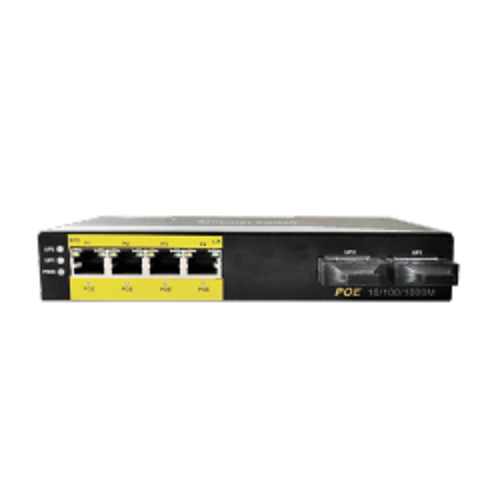

4 Ports Unmanaged Ethernet PoE Switch

N-net 4 Ports Unmanaged Ethernet PoE Switch

N-net NT-2400-AF4 100Mbps 4 ports ethernet poe switch, with 2 fiber uplink ports and 4 RJ45 downlink ports, its transmission distance can be up to 120km. With high performance, this 10/100M 4 ports PoE switch can resist 4KV thunderstrike and 6KV static, whatever indoor or outdoor use, it's an ideal solution. N-net switch provides a reliable assurance for connection between the surveillance system and outside network where the four PoE+ ports are with power over ethernet ability.


4-Port PoE Switch Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets.
2. Standard Compliance:IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE.
3. 10/100Base-TX automatically identify the direct line and cross-line, compatible with various cards, switches, HUB and other Ethernet devices.
4. Store-and-forward mechanism is employed to avoid packet loss and error frames.
5. Support full-duplex flow control / half-duplex back pressure mode.
6. Jumbo frames support a maximum of 1552 bytes.
7. 52 DC power input.
8. -20 To 70 ℃ operating temperature to meet a variety of complex environments.
9. Copper ports support ESD protection.
10. Support dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode fiber port selection.
11. Support PoE power supply up to maximum of 25.5W.

PoE+ Switch Application

PoE Switch 4 Ports Package

Box dimension: 230*190*65mm
