Fast 4-Port POE Switch Unmanaged

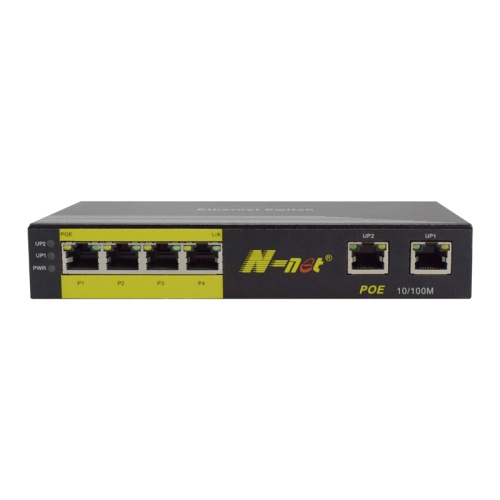

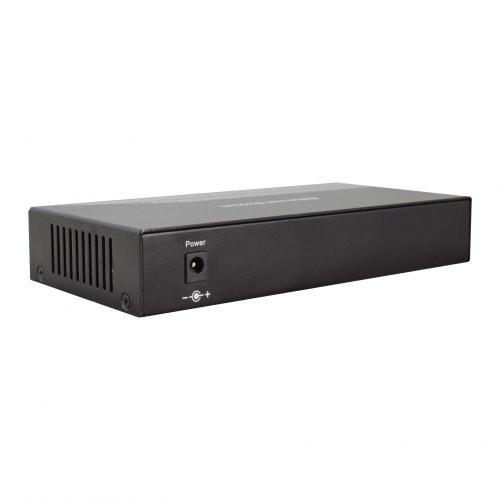

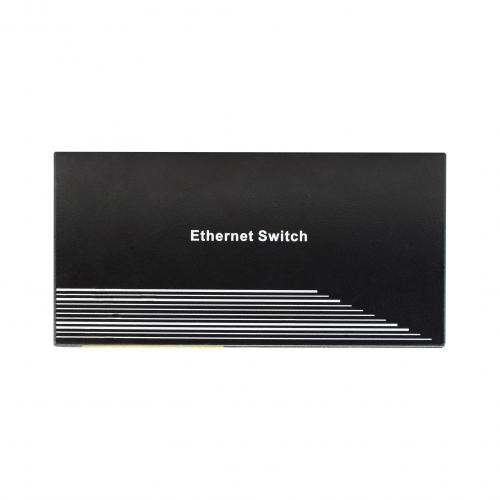

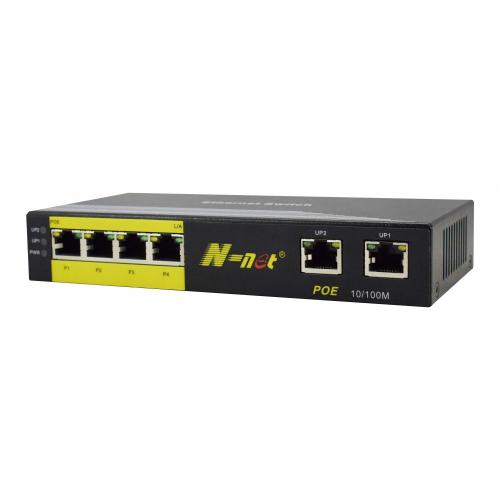

N-net Fast 4-Port PoE Switch Unmanaged

N-net NT-W600-AF4  is a high quality reliable standard IEEE802.3af/at 4 port  PoE  switch that each power over ethernet port provides power more than 30W. The Power supply of this10/100M 4 ports poe switch is DC52V 1.25A,total PoE power capacity can reach 65W. NT-W600-AF4 POE switch  is excellent for deploying network devices that require high-power such as outdoor security dome cameras and access points.

10/100M PoE Switch 4 Ports Features

1. Built-in efficient switching core to implement flow control and reduce broadcast .
2. packets.
3. PoE switch Standard: IEEE802.3 Ethernet, IEEE802.3u Gigabit Ethernet, IEEE802.3ab Gigabit Ethernet, IEEE802.3x Flow Control, IEEE802.3af/ at PoE.
4. Automatic identification of direct and cross-line cables, compatible with various cards, switches, HUB and other Ethernet devices.
5. Store-and-forward mechanism is employed to avoid packet loss and error frames.
6. Support full-duplex flow control / half-duplex back pressure mode.
7. Jumbo frames support a maximum of 9K bytes.
8. 52 VDC power input.
9. -20 To 70 ℃ operating temperature to meet a variety of complex environments
10. Copper ports support ESD protection
11. Support PoE power supply up to maximum of 30W

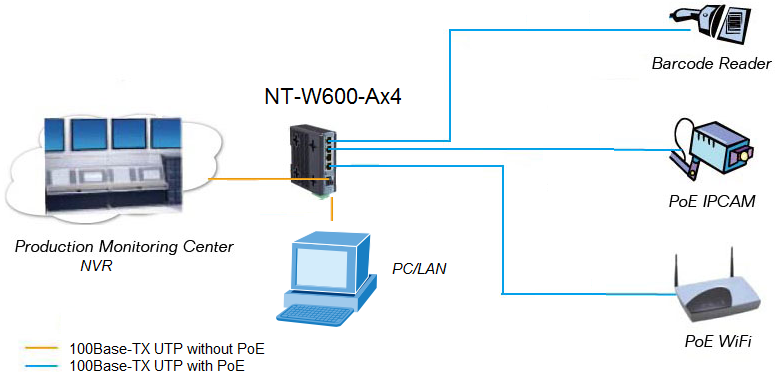

4 Ports PoE Ethernet Switch Application

PoE Switch 4 Ports Package

Box dimension:230*190*65 mm including power supply and instruction.
