24 Ports Managed Gigabit POE Switch

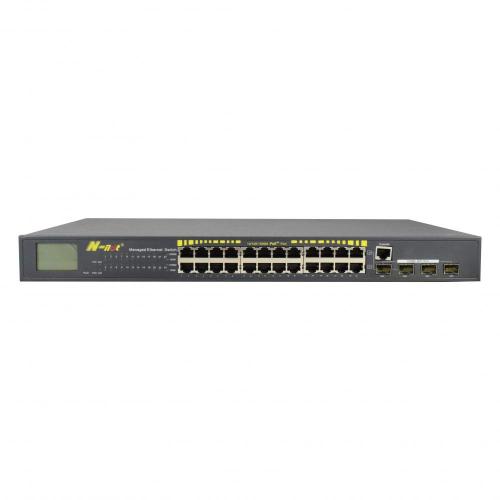

N-net 24 Ports Managed Gigabit PoE Switch with LCD Monitor

N-net NT-35MG22T2GC2GFL-AF24 managed 24 ports PoE switch, there are 22 gigabit ethernet ports and 2 gigabit Combo ports (also used as 2 gigabit SFP fiber ports and 2 gigabit PoE ethernet ports). It's a PoE switch that features network management software to manage PoE ports and provides powerfor each port. N-net 24 ports PoE switch supports management through WEB,CLI,SSH and SNMP.

PoE Switch 24 Ports Features

1. 22x 10/100/1000Mbps downlink PoE Ethernet Ports, 2x1000Mbps uplink Combo Ports
2. IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3af/at standard
3. 24 ports are all support IEEE802.3af/at
4. 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices
5. Support L2+ Switching features including 802.1Q VLAN, Port Mirroring, Port isolation, IGMPSnooping,
6. DHCP Snooping, DHCP Relay , LACP, IP Source Guard, ARP inspection, ACLs etc.
7. Store-and-forward mechanism is employed to avoid packet loss and error frames
8. Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1S)
9. Support IP/Port/Mac binding.
10. Jumbo frames support a maximum of 9.6K kilobtyes
11. Support enhanced management through WEB, CLI, SSH, SNMP.
12. Various LCD display functions can real-timely display the device`s current working conditions, and help prompt facility and remove trouble easily. (Option)
13. Maximum power per port: 30W
14. Maximum PoE power: 440W (Port 1 to Port 24)

The LCD Monitor

24 Ports PoE+ Switch Application

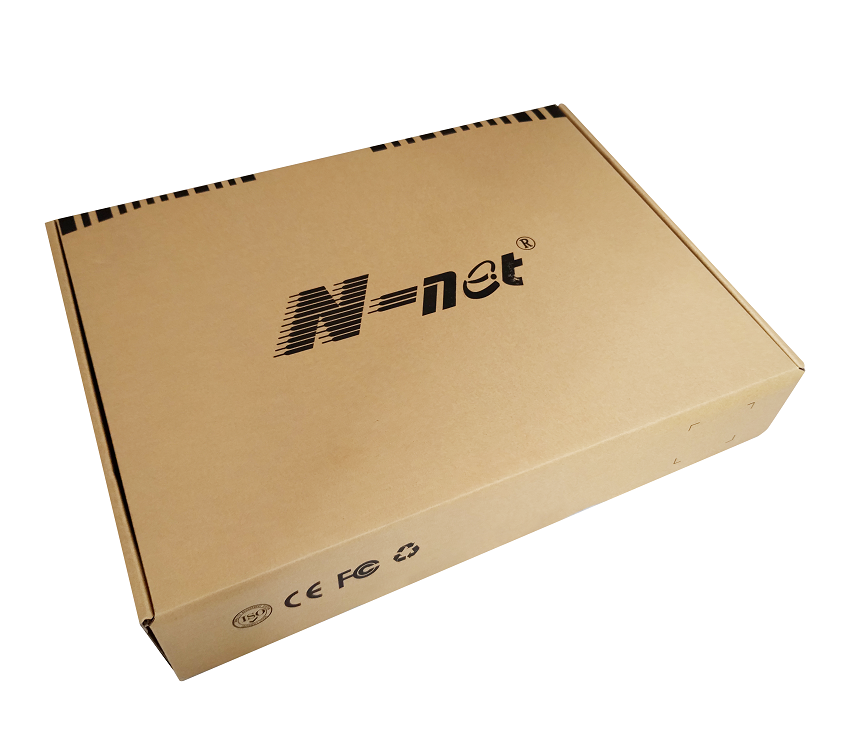

24 Ports Ethernet PoE Switch Package

Box dimension: 530*395*90mm
