Unmanaged POE Switch 16 Ports Gigabit

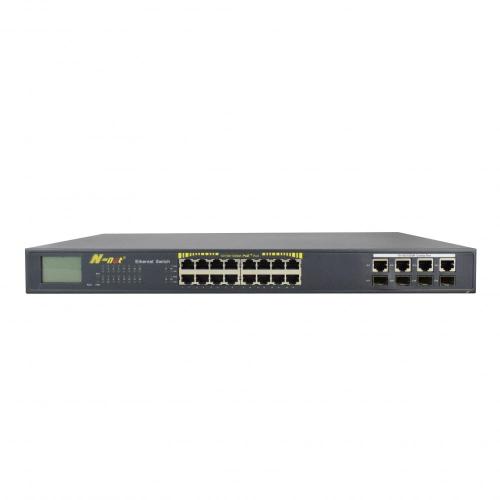

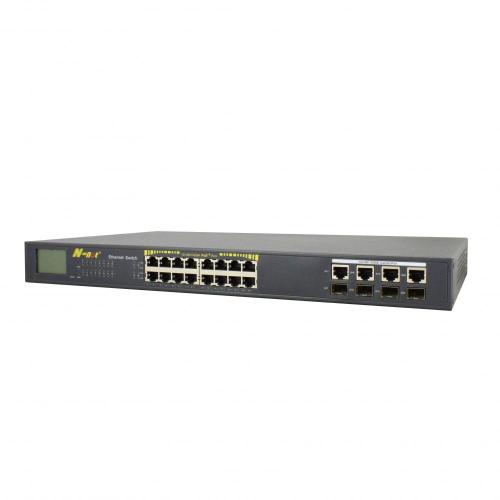

N-net Unmanaged POE Switch 16 Ports Gigabit with LCD Monitor

N-net NT-35G16T4GCL-AF16 gigabit poe switch is an unmanaged switch that are 16 * 10/100/1000Mbps ethernet downlink ports plus 4 * 1000Mbps COMBO uplink ports. The ethernet ports are all with power over ethernet function. This L2+ poe switch also has a LCD monitoring screen to show the poe switch working status such as POE output and total power capacity.

Unmanaged 16 Ports POE Switch Features

1. 16x 10/100/1000Mbps downlink PoE Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernetcombo Ports.
2. IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3af/at standard
3. Each of 16 ports all support IEEE802.3af/at
4. 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices
5. Support L2+ Switching features including 802.1Q VLAN, Port Mirroring, Port isolation, IGMPSnooping,
6. DHCP Snooping, DHCP Relay , LACP, IP Source Guard, ARP inspection, ACLs etc.
7. Store-and-forward mechanism is employed to avoid packet loss and error frames
8. Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1S)
9. Support IP/Port/Mac binding.
10. Jumbo frames support a maximum of 9.6K kilobtyes
11. Support enhanced management through WEB, CLI, SSH, SNMP.
12. Various LCD display functions can real-timely display the device`s current working conditions, and help prompt facility and remove trouble easily. (Option)
13. Maximum power per port: 30W
14. Maximum PoE power: 300W (Port 1 to Port 16)
15. Built-in 1U rack power supply series, easy installation

The LCD Monitor

POE Switch 16 Ports For Cctv

16 Ports POE Switch Package

Box dimension: 530*395*90mm
