N-net Managed 16 Ports POE Switch Gigabit

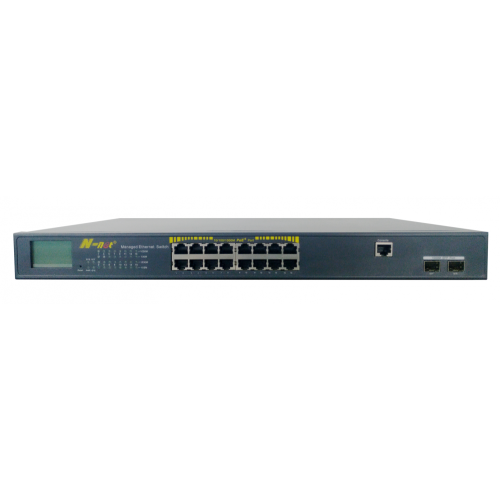

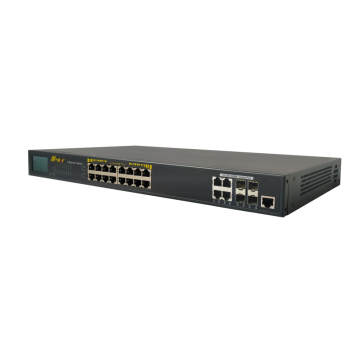

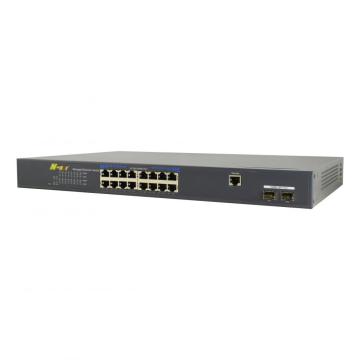

N-net NT-35MG16T2GCL-AF16 is an Ethernet switch with 16 power over ethernet ports. The poe switch has a LCD screen to show the real-time working status such as the power supply is enough or not, output ofeach port, etc.  As a managed switch, it supports network management software to manage each POE port and provide power consumption 15.4W/30W for each port.

16 Ports Gigabit POE Switch Features

1. 16x 10/100/1000Mbps downlink PoE Ethernet Ports, 2x1000Mbps uplink SFP Ports
2. IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3af/at standard
3. Each of 16 ports all support IEEE802.3af/at
4. 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices
5. Support L2+ Switching features including 802.1Q VLAN, Port Mirroring, Port isolation, IGMPSnooping,
6. DHCP Snooping, DHCP Relay , LACP, IP Source Guard, ARP inspection, ACLs etc.
7. Store-and-forward mechanism is employed to avoid packet loss and error frames
8. Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1S)
9. Support IP/Port/Mac binding.
10. Jumbo frames support a maximum of 9.6K kilobtyes
11. Support enhanced management through WEB, CLI, SSH, SNMP.
12. Various LCD display functions can real-timely display the device`s current working conditions, and help prompt facility and remove trouble easily. (Option)
13. Maximum power per port: 30W
14. Maximum PoE power: 300W (Port 1 to Port 16)
15. Built-in 1U rack power supply series, easy installation

The LCD Monitor

POE Switch 16 Ports For Cctv

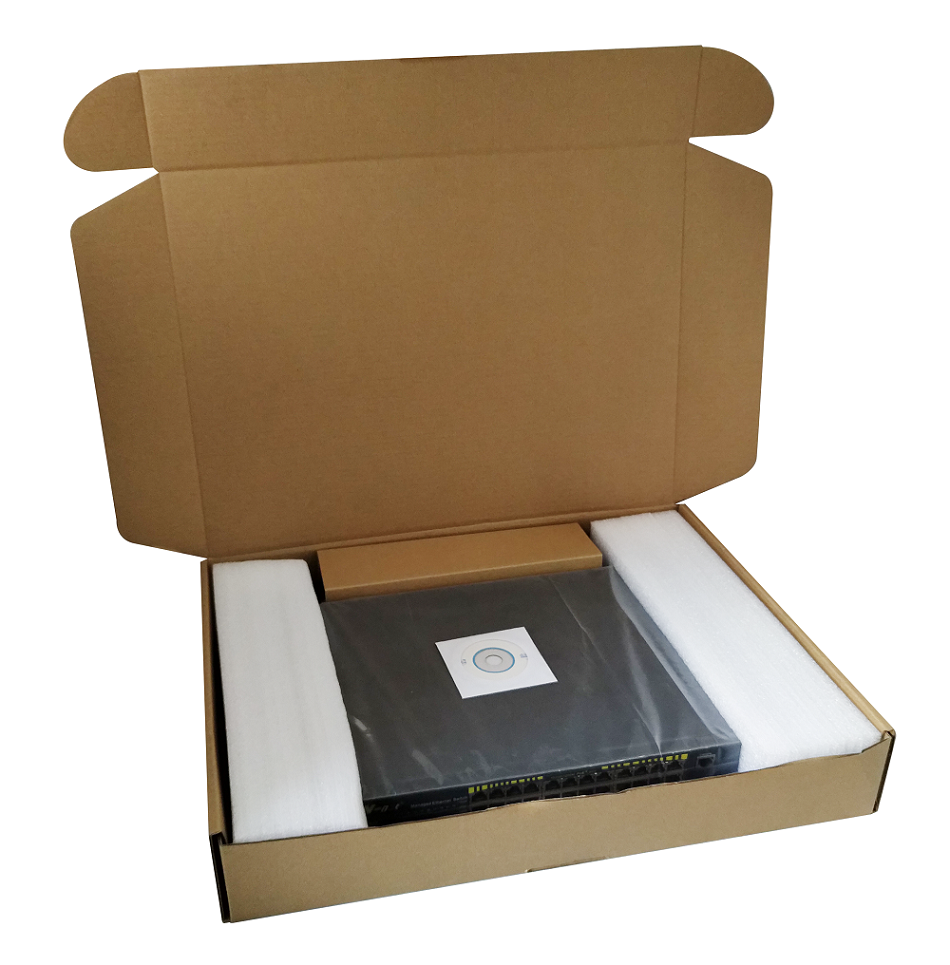

POE Switch 16 Ports Package

Box dimension: 530*395*90mm
