LCD Managed 24 Port PoE Switch Gigabit

N-net LCD Managed 24 Port PoE Switch Gigabit

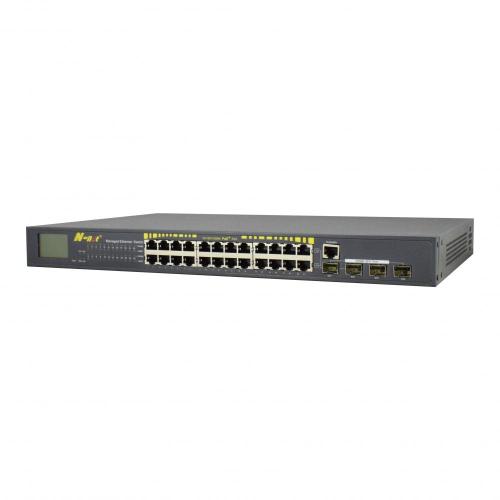

NT-35MG22T2GC2GFL-AF24 is a web smart LCD gigabit PoE switch that provides an ideal solution for LAN implementation. This managed 24 ports PoE switch is equipped with 22*1000M PoE port + 2*1000M Combo uplink ports + 2*1000M optical SFP ports, which supports IEEE 802.3af/ at standard and PoE status display.  The LCD screen on the gigabit PoE switch displays the devices working status such as ports' power output, the PoE status, and power supply overvoltage or low pressure etc. The managed system of 24 ports PoE switch is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.

Managed Gigabit Switch Features

1. Built-in efficient switching core to implement flow control and reduce broadcast packets

2. Standard Compliance:IEEE802.3 Ethernet,

   IEEE802.3u Fast Ethernet,

   IEEE802.3ab Gigabit Ethernet

   IEEE802.3x Flow Control,

   IEEE 802.1p QoS

3. 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices, Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMPSnooping,DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.

4. Store-and-forward mechanism is employed to avoid packet loss and error frames

5. Support spanning tree STP(802.1D) and RSTP(802.1W).

6. G.8032, support <50ms industrial quick ring protection

7. Jumbo frames support a maximum of 9.6K kilobtyes

8. Support cable diagnosis

9. Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.

10.  0 ºC To 55 ºC operating temperature to meet a variety of complex environments

11. Copper ports support ESD protection

12. Support PoE power supply up to maximum of 30W per port

13. IEEE 802.3af and 802.3at. Supports per port PoE configuration function

L2 Managed POE Switch Application

Managed 24 Ports Poe Switch Gigabit Instruction:

1. Front board have 28 ports, Provide 22x 10/100/1000Mbps downlink PoE Ethernet Ports, 2x 1000Mbps uplink SFP Ports; or 2x 1000M Gigabit Ethernet COMBO ports

2. LED Indicator State:

Power:   1 green light indicates that the power normal work;

POE:    24 green lights indicate that the POE is power on(Under the RJ45 socket) ;

Ethernet: 28 green lights indicate that the Ethernet Link and Act

Ethernet: 28 green lights indicate that the Ethernet speed.

Installation step

Please check below device and accessories before installation, if there are missing, please contact with your supplier.

1. PoE Switch                         1PCS

2. User Manual                        1PCS

◆ Please turn off the signal source and the device's power before installing, installation with power on may damage the device;

◆ Use 24 network cables to connect 24 IP cameras with Ethernet switch's 1~24 PoE port;

◆ Use network cable to connect Ethernet switch`s UPLINK port with NVR or Other Device;

◆ Connect Ethernet switch with power adapter;

◆ Check if the installation is correct and device is good, make sure all the connection is reliable and power for the system;

◆ Make sure every network device has power supply and work normally.
