LCD Managed Fast Power over Ethernet Switch

N-net LCD Managed Fast Power over Ethernet Switch

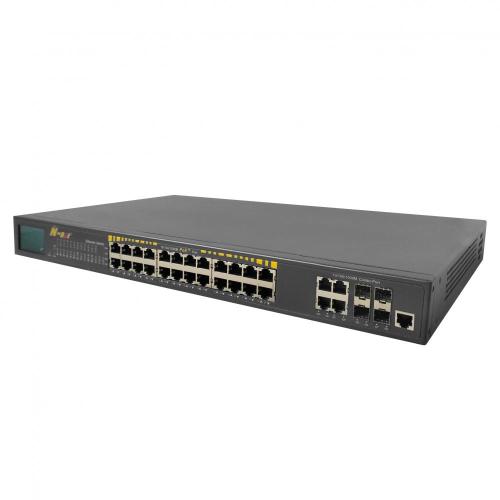

NT-35M24T4GCL managed switch is a poe switch with LCD screen visual function. 10/100M 24 ports POE switch is dedicated to the application of video monitoring system, network engineering and design that provides 24 fast ethernet downlink ports and 4 COMBO uplink ports (gigabit uplink port:fiber and ethernet port is optional).

There are 24 fast Ethernet adaptive RJ45 ports of this 24 Ports poe switch, each RJ45 port supports MDI, MDIX automatic turning and line speed forwarding function, and compatible with IEEE802.3af/at PoE standard. One of the highest output power is 30W, supporting Poe status display (including every port output power, short-circuit protection, overload port / light load, PoE off, PoE the total power, and power supply overvoltage / low pressure / temperature alarm). The scroll mode shows the port state, showing the 8 port POE state of a page, the residence time is about 5S, according to the data display real-time updates PD end user POE power, state monitoring and troubleshooting, simplifies the wiring and avoid the power socket of the power supply equipment.

Stackable  Managed Fast Ethernet POE Switch Features

1. 24x 10/100Mbps downlink PoE Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports and 2x1000Mbps uplink SFP Ports ,or 4x 1000M Gigabit Ethernet COMBO ports
2. IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3af/at standard
3. Each of 24 ports all support IEEE802.3af/at
4. 10/100Mbps auto-negotiation and auto MDI/MDI-X, compatible with various Ethernet devices
5. Support L2+ Switching features including 802.1Q VLAN, Port Mirroring, Port isolation, IGMPSnooping,
6. DHCP Snooping, DHCP Relay , LACP, IP Source Guard, ARP inspection, ACLs etc.
7. Store-and-forward mechanism is employed to avoid packet loss and error frames
8. Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1S)
9. Support IP/Port/Mac binding.
10. Jumbo frames support a maximum of 9.6K kilobtyes
11. Support enhanced management through WEB, CLI, SSH, SNMP.
12. Various LCD display functions can real-timely display the device`s current working conditions, and help prompt facility and remove trouble easily. (Option)
13. Maximum power per port: 30W
14. Maximum PoE power: 440W (Port 1 to Port 24)
15. Built-in 1U rack power supply series, easy installation

Poe Switch 24 Ports Application

Poe Switch For Ip Camera Instruction:

1. Front board have 32 ports, Provide 24x 10/100Mbps downlink PoE Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports or 2x 1000Mbps uplink SFP Ports; or 4x 1000M Gigabit Ethernet COMBO ports

2. LED Indicator State:

Power:   1 green light indicates that the power normal work;

POE:    24 green lights indicate that the POE is power on(Under the RJ45 socket) ;

Ethernet: 28 green lights indicate that the Ethernet Link and Act

Ethernet: 28 green lights indicate that the Ethernet speed.

Installation step

Please check below device and accessories before installation, if there are missing, please contact with your supplier.

1. PoE Switch                         1PCS

2. User Manual                        1PCS

◆ Please turn off the signal source and the device's power before installing, installation with power on may damage the device;

◆ Use 24 network cables to connect 24 IP cameras with Ethernet switch's 1~24 PoE port;

◆ Use network cable to connect Ethernet switch`s UPLINK port with NVR or Other Device;

◆ Connect Ethernet switch with power adapter;

◆ Check if the installation is correct and device is good, make sure all the connection is reliable and power for the system;

◆ Make sure every network device has power supply and work normally.
