Gigabit Ethernet Managed Switch

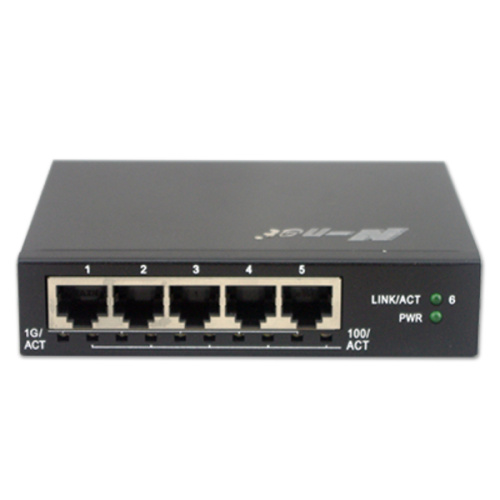

N-net Gigabit Ethernet Managed Switch

NT-MG1500 Ethernet switch offers wire-speed packet transfer performance with 12Gbps non-blocking switch fabric, 8k MAC Address table and 802.3x Full-Duplex flow control. This gigabit switch can be programmed for basic switch management functions such as per port speed duplex settings, Port Trunking, VLAN, Port Mirroring, Rapid Spanning Tree, etc. Additionally, the firmware includes advanced features such as IGMP snooping, QoS (Quality of Service), broadcast storm and bandwidth control, to enhance bandwidth utilization. what's more, this N-net managed Ethernet switch supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software. These features provide a cost-effective way to manage the device from the Internet whenever you are working or at home.

10/100/1000M Network Switch Feature

1. Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T,
2. IEEE 802.3z 1000Base-SX/LX Ethernet standard
3. 5-Port 10/100/1000Mbps Gigabit Ethernet ports with 1-port fiber port
4. Auto-MDI/MDI-X detection on each RJ-45 port supports CSMA/CD protocol
5. Prevents packet loss with back pressure (Half-Duplex) and 802.3x PAUSE frame flow control(Full-Duplex)
6. 8K MAC address table, automatic source address learning and ageing
7. 12Gbps switch fabric, non-blocking switch architecture
8. 9K Jumbo Frame supports at all speed (10/100/1000Mbps)
9. Supports Port-Based and 802.1Q VLAN function, up to 64 VLAN groups
10. Supports IEEE 802.1w Rapid-Spanning Tree protocol(RSTP)
11. Link Aggregation supports static mode and LACP (IEEE 802.3ad) - up to 4 trunk groups, Each trunk is maximum up to 6 ports
12. IGMP Snooping for multicast filtering, supports v1 and v2
13. Support DHCP option 60 and option 82
14. Multicast and Broadcast Storm Control as well as Flooding Control
15. Port Mirroring support for dedicated port monitoring
16. 802.1X Port-Base access control, RADIUS Server Authentication
17. Static MAC Address assigns destination MAC address at specifc port
18. Remote Web management interface
19. Firmware upgrade through Web interface
20. Cable Diagnostics technology
21. Supports SNMPv1 with RFC-1213/1573-Interface group and RMON Group 1 ( Statistics) SNMP Tra

FTTx Switch

With 1gigabit fiber interfaces, to build a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb) for ISPs and FTTB (Fiber to the Building) for enterprises, the various distances of fiber port are optional for customers. For security and applications, the 5 Gigabit ports can be configured with VLAN settings and connect to different units, offices, buildings, houses and departments. And N-net managed gigabit Ethernet switch is wide application in Europe FTTH market.
