Gigabit Managed Ethernet Switch
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air, EXPRESS
- Port:
- China, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 5000 pcs per day |
| Supply Ability: | 5000 pcs around 10-20 days |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,FCA |
| Certificate: | CE, FCC,ISO9001 |
| HS Code: | 8536700000 |
| Transportation: | Ocean,Land,Air,EXPRESS |
| Port: | China,Shenzhen |

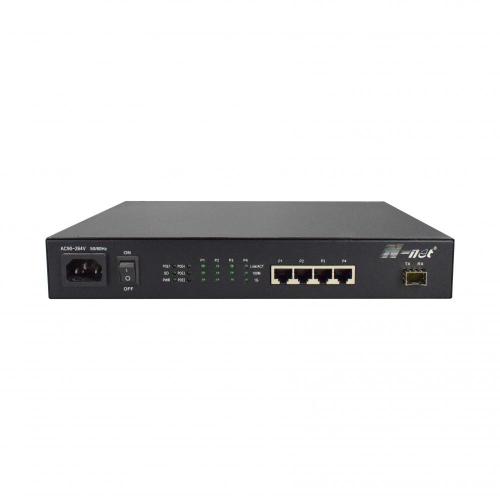

N-net Gigabit Managed Ethernet Switch
The NT-MG1400 is a 5-pors 10/100/1000Mbps web smart gigabit Ethernet switch, cost-effective Desktop Size / High-Speed / Fiber Capability WEB Smart Switchutilizing a compact form factor which can be mounted in a 10/19-inch rack with optional rack-mounting kits, or placed on desktop. Compared with previous version, the enhanced software features as below:802.1Q VLAN , 802.1X.Authentication / RADIUS, Rapid Spanning Tree, IGMP Snooping, SNMP monitor and SNMP TrapWith 10Gbps non-blocking switch fabric, 8k MAC Address table and 802.3x Full-Duplex flow control, the Ethernet switch offers wire-speed packet transfer performance without risk of packet loss. The Gigabit SFP (Small Factor Pluggable) slots can be installed with 1000Base-SX/LX mini-GBIC modules which offer incredible extensibility, flexibility and connectivity to the Core switches or Servers.
Managed Gigabit Switch Features
- Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab
- 1000Base-T, IEEE 802.3z 1000Base-SX/LX Ethernet standard
- Complies with IEEE802.3 at(POE) or IEEE802.3 at(POE+) PSE standard
- 4-Ports 10/100/1000Mbps Gigabit Ethernet ports
- 4-Ports IEEE802.3 at(POE) or IEEE802.3 at(POE+) PSE ports
- 4-Ports PSE supply power line are PIN1, 2(+) and PIN3,6(-)
- 1 mini-GBIC/SFP slots
- Each Switching port supports auto-negotiation-10/20, 100/200 and 1000/2000Mbps supported
- Auto-MDI/MDI-X detection on each RJ-45 port supports CSMA/CD protocol
- Prevents packet loss with back pressure (Half-Duplex) and 802.3x PAUSE frame flow control (Full-Duplex)
- 8K MAC address table, automatic source address learning and aging
- 16Gbps switch fabric, non-blocking switch architecture
- 9K Jumbo Frame supports at all speed (10/100/1000Mbps)
- 52 VDC PSE output voltage
- Compatible with legacy pre-IEEE standard powered devices
- Over-current protection and Under-current detection
- Industry degree design and wide operating ranges (-20~70)
L2 Managed Switch Application
Fiber Managed Network Switch Packing
